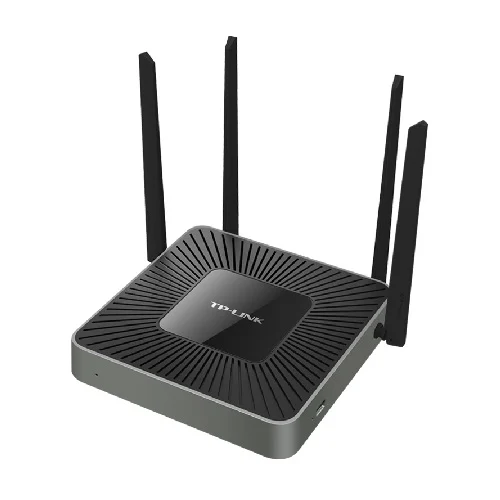

Name: TP-Link TL-WAR1200L Enterprise Wireless Router - INOSAKI
SKU: TP-Link-TL-WAR1200L
Price: 120.65 USD
Availability: InStock

Technical Overview

AC1200 dual-band enterprise VPN router with 5 Gigabit ports (multi-WAN), integrated AP controller, advanced behavior management, and robust security.

Key Features

AC1200 Dual-Band Wireless: Offers combined speeds up to 1200 Mbps (867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz) [1.3.1].
Flexible Multi-WAN Gigabit Ports: Configured with 1 WAN port, 1 LAN port, and 3 WAN/LAN interchangeable ports for broadband aggregation and failover.
Integrated AP Controller: Easily manages and configures TP-Link APs, supporting up to 13 Multi-SSIDs and client isolation.
Enterprise VPN Support: Supports L2TP, PPTP, and L2TP over IPSec VPN client protocols for secure branch-to-headquarters remote connections.
Online Behavior Management: Advanced application control, website filtering, and URL blocking to promote safe and productive employee internet usage.
Robust Network Security: Built-in ARP protection, DoS attack defense, scanning protection, and MAC address filtering.

Technical Specification Matrix

Parameter	Value
Network Standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave2, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Wireless Speeds	2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps
Ethernet Interfaces	1× 10/100/1000M RJ45 WAN Port, 3× 10/100/1000M RJ45 WAN/LAN Optional Ports, 1× 10/100/1000M RJ45 LAN Port
USB Interface	1× USB 2.0 Port
Antenna System	4× Fixed Omnidirectional High-Gain Antennas (2× 2.4GHz 5dBi, 2× 5GHz 5dBi)
Input Voltage	100–240V AC, 50/60Hz, 0.5A
Cooling Method	Thermal Conductive Silicone + Natural Convection
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% RH, non-condensing
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Humidity	5% to 90% RH, non-condensing
VPN Client Protocols	PPTP, L2TP, L2TP over IPSec
Multi-SSID Support	Up to 13 SSIDs
Security Protections	ARP Guard, DoS Defense, Scanning Prevention, MAC Filtering, WPA/WPA2-PSK
Behavior Management	Application restriction, URL filtering, bandwidth limiting, file download filtering
Physical Weight (kg)	0.78
Dimensions L x W x H (cm)	20.8 x 20.8 x 4.35

Industrial Applications

1. Remote Office Branch VPN Networking

Utilizing the router's hardware-supported L2TP, PPTP, and L2TP over IPSec VPN client capabilities [1.3.1], a remote branch office can establish highly secure encrypted tunnels back to headquarters. The 100-240V AC direct-input power supply ensures it runs stably in typical commercial distribution systems, maintaining reliable site-to-site connectivity.

Problem Solved

Secures sensitive communication and data sharing between remote offices and corporate servers without relying on expensive dedicated leased lines, mitigating interception risks.

IPSec VPNGigabit WANL2TP ClientNetwork Encryption

2. Small Enterprise Wi-Fi with Centralized AP Management

In multi-room office spaces, the TL-WAR1200L acts as both the gateway and the wireless AC (Access Controller). Administrators can manage up to 13 separate Multi-SSIDs to isolate departments (e.g., Guest, HR, Engineering) and configure TP-Link APs across the office directly from this central console.

Problem Solved

Eliminates wireless blind spots in multi-room offices through centralized AP deployment and management, preventing cross-department unauthorized network access through VLAN/SSID isolation.

AP ManagementMulti-SSIDClient IsolationVLAN Segmentation

3. Multi-WAN Load Balancing and Traffic Management

Leveraging the 3 configurable WAN/LAN optional ports, small businesses can connect multiple internet lines from different ISPs. The router's intelligent bandwidth allocation and multi-WAN load balancing distribute traffic across connections based on real-time loads or specific policy routing.

Problem Solved

Prevents network downtime during primary ISP outages through automated failover and eliminates network congestion caused by high-bandwidth non-work applications (like P2P downloads) via smart QoS and application limits.

Multi-WAN Load BalancingBandwidth ControlQoSFailover
