USD 31.84

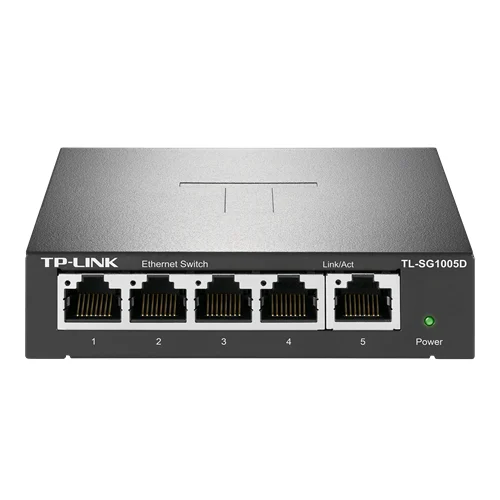

Unmanaged 5-port gigabit ethernet desktop switch featuring auto-MDI/MDIX, 10 Gbps switching capacity, energy-efficient technology, and quiet fanless design.
Unmanaged 5-port gigabit ethernet desktop switch featuring auto-MDI/MDIX, 10 Gbps switching capacity, energy-efficient technology, and quiet fanless design.
| Parameter | Value |
|---|---|
| Interface | 5 10/100/1000Mbps RJ45 Ports |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 15 KB |
| Transfer Method | Store and Forward |
| Power Consumption | 2.4W Max |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Housing Material | Plastic |
| Physical Weight (kg) | 0.12 |
| Dimensions L x W x H (cm) | 14 x 8.8 x 2.3 |
Used in controlled industrial enclosures to aggregate data lines from multiple PLCs and localized HMI panels to the main factory backbone.
Resolves the need for complex field-level network configuration by using unmanaged plug-and-play design, keeping local telemetry packet loss near zero via IEEE 802.3x flow control.
Deploys on production diagnostic test stands to connect testing laptops, oscilloscopes, and data acquisition systems during machine commissioning.
Allows rapid system adjustments without setting up IP routing or managing VLANS, while Auto-MDI/MDIX handles any legacy test cables instantly.
Installed on testing benches where precise timing of sensory data over Ethernet is critical for product validation.
Minimizes jitter and guarantees critical diagnostic packet transmission times by leveraging 802.1p/DSCP QoS to prioritize telemetry packets over generic web traffic.
