1. Compact Enclosure Network Expansion

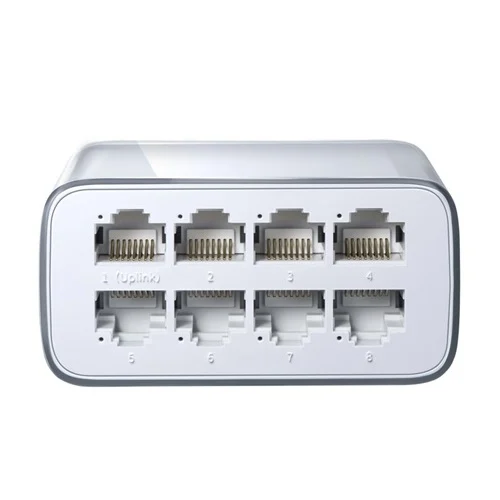

In industrial or commercial control cabinets with extremely limited spatial clearance, integrating standard network switches is impossible. The ultra-compact form factor (7.4 cm x 6.9 cm) allows this 8-port unmanaged switch to seamlessly fit into space-constrained terminal boxes, enabling localized device clustering.
Problem SolvedResolves severe physical size constraints in retrofitted DIN-rail control enclosures or small-footprint terminal boxes.
Compact Form FactorTerminal Box IntegrationLocal Port ExpansionSpace-Constrained Enclosures
2. Edge Telemetry Device Clustering
Aggregating multiple low-power industrial sensor transmitters, PLCs, or telemetry RTUs in remote locations where only low-voltage DC power is available. The 5VDC / 0.4A low power requirements permit direct integration with low-capacity solar systems or localized battery-backed DC power bus networks.
Problem SolvedEliminates the need for high-voltage AC mains or bulky power converters, enabling localized network aggregation using 5V DC low-power sources.
5VDC Power InputSensor ClusteringLow Power ConsumptionEdge Network Aggregation
3. Localized HMI and PLC Communication Bridging
Connecting an HMI panel, primary PLC, variable frequency drive, and a programming laptop inside a localized machine station. The 8-port unmanaged switch provides a plug-and-play, zero-configuration local bridge utilizing full-duplex IEEE 802.3x flow control to ensure reliable and lossless communication during machine-level operations.
Problem SolvedPrevents data packet collisions and communication loss between localized industrial human-machine interfaces (HMIs) and PLCs without complex managed switch configurations.
IEEE 802.3x Flow ControlHMI-to-PLC BridgingZero-ConfigurationFast Ethernet
