| Main information | |
| Part Number | LADN02 |
| Product Series | TeSys |
| TeSys Deca | |
| product name | TeSys Deca |
| product type | Auxiliary Contact Module |
| product short name | LADN |
| scope of application | TeSys D CAD |
| TeSys D LC1D | |
| TeSys F LC1F | |
| TeSys F CR1F | |
| TeSys Deca CAD | |
| TeSys Deca LC1D | |
| installation location | Front |
| Loop contact type | 2 NC |
| Contacts operation | Momentary |
| Rated working voltage [Ue] | 690 V AC 25…400 Hz |
| Rated operating current [Ie] | 6 A at 120 V AC-15 |
| 1.04 A at 690 V AC-15 | |
| 0.55 A at 126 V DC-13 | |
| 0.1 A at 600 V DC-13 | |
| Rated insulation voltage [Ui] | 690 V conforming to IEC 60947-5-1 |
| 600 V conforming to UL | |
| 600 V conforming to CSA | |
| Conventional thermal current [Ith] | 10 A at <60 °C |
| Standards compliant | EN/IEC 60947-5-1 |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-5-1 | |
| GB/T 14048.5 | |
| certified product | IEC CB Report |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| UKCA | |
| Additional information | |
| Rated making capacity [Irms] | 140 A AC conforming to IEC 60947-5-1 |
| 250 A DC conforming to IEC 60947-5-1 | |
| Allow short time rated | 100 A for 1 s |
| 120 A for 500 ms | |
| 140 A for 100 ms | |
| protection type | GG fuse 10 A |
| Mechanical life | 30 Mcycles |
| Minimum switching current [Imin] | 5 mA |
| Minimum switching voltage | 17V |
| non-overlapping time | 1.5 ms No overlap between de-energized NC and NO contacts |
| 1.5 ms No overlap between energized NC and NO contacts | |
| Insulation resistance | > 10 MΩ |
| Wiring capacity | Bolt fastening1 Cable 1…4 mm² flexible with |
| bolt fastening1 Cable 1…4 mm² flexible without | |
| bolt fastening2 Cable 1…2.5 mm² flexible with | |
| bolt fastening2 Cable 1…4 mm² flexible without bolt fastening2 | |
| Bolt fastening1 Cable 1…4 mm² solid solid without | |
| Bolt fastening2 Cable 1…4 mm² solid solid without | |
| Tightening torque | 1.7 Nm with screwdriver Ø 6 flat |
| 1.7 Nm with screwdriver No 2 Phillips screw | |
| 1.7 Nm with screwdriver pozidriv No 2 | |
| high | 48 mm |
| width | 26 mm |
| depth | 42 mm |
| color | Dark gray |
| Environment | |
| environmental features | Normal use environment |
| IP protection class | IP20 complies with screwed |
| Protective measures | TH conforms to IEC 60068 |
| storage environment temperature | -60…80°C |
| operating temperature | -5…60°C |
| working altitude | 3000m |
| Packaging unit | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.8cm |
| Package 1 Width | 4.2 cm |
| Package 1 Length | 5.2 cm |
| Package 1 Weight | 34g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 320 |
| Package 2 Height | 30cm |
| Package 2 Width | 30cm |
| Package 2 Length | 40cm |
| Package 2 Weight | 11.367kg |
| Contract warranty | |
| Warranty | 18 months |

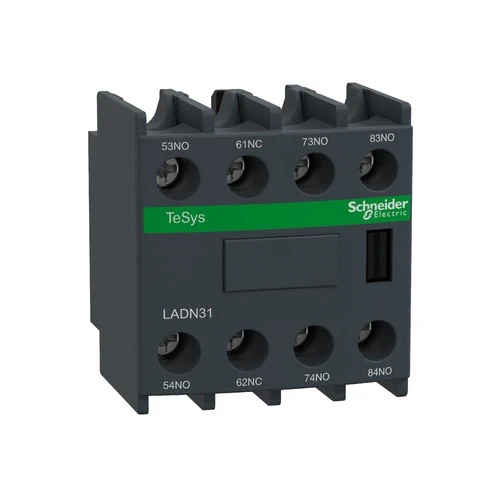

| Product Name | LADN31 |
| Product range | TeSys |
| TeSys Deca | |
| Product name | TeSys Deca |
| Product type | Auxiliary contact module |
| Short name of the product | LADN |
| Scope of application | TeSys D CAD |
| TeSys D LC1D | |
| TeSys F LC1F | |
| TeSys F CR1F | |
| TeSys Deca CAD | |
| TeSys Deca LC1D | |
| Installation location | front |
| Type of loop contact | 3 NO + 1 NC |
| Contacts operation | Instantaneous |
| Rated operating voltage [UE] | 690 V AC 25…400 Hz |
| Rated operating current [IE] | 6 A When operating voltage<=120 V AC-15 |
| 1.04 A When operating voltage<=690 V AC-15 | |
| 0.55 A When operating voltage<=125 V DC-13 | |
| 0.1 A When operating voltage<=600 V DC-13 | |
| Rated insulation voltage [UI] | 690 V according to IEC 60947-5-1 |
| 600 V to UL and | |
| 600 V to CSA | |
| Conventional heating current [Ith] | 10 A (with operating temperature <=60 °C) |
| standard | EN/IEC 60947-5-1 |
| GB/T 14048.5 | |
| EN 50012 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-5-1 | |
| IEC 60335-1:Clause 30.2 | |
| IEC 60335-2-40: Annex JJ | |
| UL 60335-2-40:Annex JJ | |
| Product Certification | CB Scheme |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| UKCA | |
| Supplemental information | |
| Rated Continuity Capability [IRMS] | 140 A AC according to IEC 60947-5-1 and |
| 250 A DC according to IEC 60947-5-1 | |
| Allows for short time ratings | 100 A in… on <60 °C 1 s |
| 120 A in… on <60 °C 500 ms | |
| 140 A in… < 60 °C for 100 ms | |
| Type of protection | GG fuse 10 A |
| Mechanical life | 30 Mcycles |
| Minimum switching current [Imin] | 5 mA |
| Minimum switching voltage | 17 V |
| Do not overlap time | 1.5 ms power loss: no overlap |
| between NC and NO contacts, 1.5 ms power-up: no overlap between NC and NO contacts | |
| Insulation resistance | > 10 MΩ |
| Wiring capacity | Bolt fastening 1 cable 1… 4 mm² flexible wire with |
| bolt fastening 1 cable 1… 4 mm² cord without | |
| bolt fastening 2 cables 1… 2.5 mm² flexible wire with | |
| bolt fastening 2 cables 1… 4 mm² cord without | |
| bolt fastening 1 cable 1… 4 mm² single strand wire without | |
| bolt fastening 2 cables 1… 4 mm² single strand hard wire without | |
| Tightening torque | 1.7 N.m with a screwdriver Ø 6 Flat 1.7 |
| N.m with a screwdriver No 2 Phillips screws | |
| 1.7 N.m with a screwdriver pozidriv No 2 | |
| height | 48 mm |
| width | 44 mm |
| depth | 42 mm |
| net weight | 0.05 kg |
| color | Dark gray |
| environment | |
| Environmental characteristics | Normal use environment |
| IP protection rating | IP2X conforming to IEC 60529 |
| Protective measures | TH complies with IEC 60068 |
| Storage ambient temperature | -60… 80 °C |
| Operating temperature | -5… 60 °C |
| Working altitude | 3000 m |
| Packing Units | |
| Package 1: Packing unit type | PCE |
| Package 1: Packing unit quantity | 1 |
| Package 1: Height | 4.800 cm |
| Package 1: Width | 4.200 cm |
| Package 1: Length | 5.000 cm |
| Package 1: Gross weight | 62.000 g |
| Package 2: Packing unit type | BB1 |
| Package 2: Packing unit quantity | 10 |
| Package 2: Height | 4.800 cm |
| Package 2: Width | 8.600 cm |
| Package 2: Length | 26.000 cm |
| Package 2: Gross weight | 628.000 g |
| Package 3: Packing unit type | S03 |
| Package 3: Packing unit quantity | 160 |
| Package 3: Height | 30.000 cm |
| Package 3: Width | 30.000 cm |
| Package 3: Length | 40.000 cm |
| Package 3: Gross weight | 10.345 kg |
| Contract Warranty | |
| Warranty | 18 months |
