USD 305.60

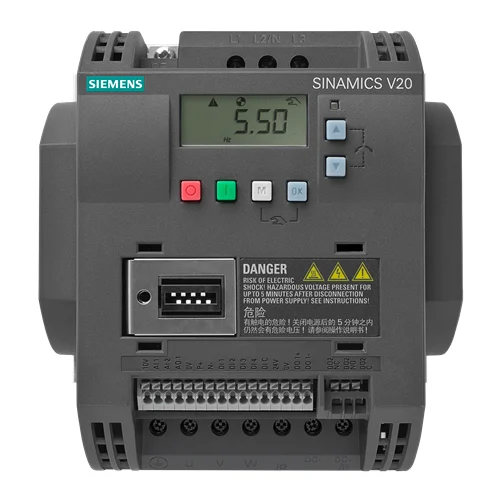

5.5kW (7.5 HP) 380-480V 3AC unfiltered inverter with IP20 rating, integrated braking unit, and Modbus RTU for precise motor control.
5.5kW (7.5 HP) 380-480V 3AC unfiltered inverter with IP20 rating, integrated braking unit, and Modbus RTU for precise motor control.
| Parameter | Value |
|---|---|
| Rated Power | 5.5 kW (7.5 HP) |
| Input Voltage | 380–480V 3-phase AC (-15% to +10%) |
| Input Frequency | 47–63 Hz |
| Output Current (Rated) | 11 A (LO/HO rated current: 12.50 A) |
| Output Frequency | 0–550 Hz |
| Overload Capacity (HO) | 150% rated current for 60 seconds, cycle time 300 s |
| Overload Capacity (LO) | 110% rated output current for 60 seconds, cycle time 300 s |
| Protection Class | IP20 / UL open type |
| Cooling Type | External fan (FSC frame) |
| Control Mode | V/F control (V²/f, ECO energy-saving) |
| Digital Inputs | 4 |
| Digital Outputs | 2 (1 relay changeover contact, 1 transistor) |
| Analog Inputs | 2 (can be used as additional digital input) |
| Analog Outputs | 1 |
| Communication | USS, Modbus RTU |
| Integrated Braking Chopper | Yes |
| Filter Class | Unfiltered |
| Ambient Temperature (Operation) | -10 to 60 °C (14 to 140 °F) |
| Relative Humidity (Max. Operation) | 95% |
| Max. Motor Cable Length (Shielded) | 25 m (82.02 ft) |
| Max. Motor Cable Length (Unshielded) | 50 m (164.04 ft) |
| Physical Weight (kg) | 2.4 |
| Dimensions L x W x H (cm) | 24 x 24 x 22 |
This inverter is ideal for controlling the speed of industrial fans and pumps up to 5.5 kW, utilizing its V/F control and ECO energy-saving mode to optimize energy consumption and match output to demand.
Efficiently manages fan and pump motor speeds, reducing energy waste during partial load operation and extending equipment lifespan through soft starts and stops.
The integrated braking unit and 150% overload capacity for 60 seconds make this drive suitable for conveyor belt applications requiring controlled acceleration, deceleration, and the ability to handle temporary peak loads.
Provides precise speed control and robust overload handling for conveyor systems, preventing material spills, reducing mechanical stress, and ensuring smooth product flow.
With its 5.5 kW power rating, 380-480V input, and Modbus RTU communication, this inverter can be integrated into simpler machine tools like mixers or extruders, allowing for variable speed control and integration into a control system.
Enables variable speed operation for process optimization in machine tools, offering flexibility for different materials and production requirements, while allowing central control via Modbus RTU.
