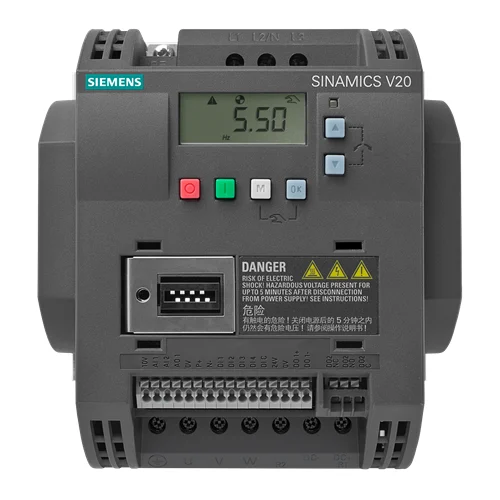

Name: Siemens SINAMICS V20 1.1kW 3-Phase Variable Frequency Drive - INOSAKI
SKU: Siemens-6SL3210-5BE21-1UV1
Price: 166.16 USD
Availability: InStock

Technical Overview

1.1kW 3-phase VFD with 380-480V input, 0-550Hz output, 150% overload, IP20, USS/Modbus RTU. Features integrated braking and BOP for easy control.

Key Features

Rated power of 1.1 kW (1.5 HP) for 3-phase AC motors.
Input voltage range of 380-480 V AC.
Overload capacity of 150% for 60 seconds (High Overload).
Unfiltered design.
Integrated Basic Operator Panel (BOP) for intuitive operation and commissioning.
USS / Modbus RTU communication for easy network integration.
IP20 / UL open type protection for control cabinet mounting.
Equipped with 4 digital inputs, 2 digital outputs (1 relay changeover contact, 1 transistor), 2 analog inputs, and 1 analog output.
Integrated braking chopper for controlled deceleration.
Compact panel-mount design for space-saving installation.

Technical Specification Matrix

Parameter	Value
Input Voltage	380-480 V AC, 3-Phase (-15% +10%)
Line Frequency	47-63 Hz
Rated Power (LO/HO)	1.10 kW (1.50 hp)
Rated Output Current	3.10 A
Output Frequency	0-550 Hz
Overload Capability (High Overload)	150% rated output current for 60 s, cycle time 300 s
Overload Capability (Low Overload)	110% rated output current for 60 s, cycle time 300 s
Filter Class	Unfiltered
Digital Inputs	4
Digital Outputs	2 (1 relay changeover contact, 1 transistor)
Analog Inputs	2 (can be used as additional digital input)
Analog Outputs	1
Communication Interface	USS, Modbus RTU (RS485)
Protection Rating	IP20 / UL open type
Mounting Type	Wall mounting / side-by-side mounting
Integrated Braking Chopper	Yes
Cooling	External fan
Installation Altitude	1,000 m (3,280.84 ft)
Operating Ambient Temperature	-10 ... 60 °C (14 ... 140 °F)
Storage Ambient Temperature	-40 ... 70 °C (-40 ... 158 °F)
Relative Humidity (Max. operation)	95 %
Max. Motor Cable Length (Shielded)	10 m (32.81 ft)
Max. Motor Cable Length (Unshielded)	50 m (164.04 ft)
Frame Size	FSA
Power factor λ	0.72
Offset factor cos φ	0.95
Efficiency η	0.98
Physical Weight (kg)	0.99
Dimensions L x W x H (cm)	23 x 18.2 x 14

Industrial Applications

1. Conveyor Belt Systems in Warehouses

This VFD is ideal for controlling the speed of asynchronous motors driving conveyor belts in automated warehouse and logistics operations. The 1.1 kW power rating is suitable for many light to medium-duty conveyor segments.

Problem Solved

Precise speed control (0-550 Hz output frequency) allows for optimized material flow, reducing product damage and energy consumption. The 150% overload capability for 60 seconds handles startup torque and temporary jams without tripping. The integrated braking chopper allows for controlled stopping and emergency braking, crucial for safety and process efficiency. Its IP20 rating is suitable for installation within control cabinets, protecting it from dust and accidental contact in an industrial environment.

Motor speed controlmaterial handlingstartup torquecontrolled brakingindustrial automationModbus RTUIP20

2. Small Industrial Pumps for Fluid Transfer

The VFD can be used to regulate the flow rate of small to medium-sized industrial pumps, such as those used for water treatment, chemical dosing, or coolant circulation in manufacturing processes.

Problem Solved

Variable speed control prevents cavitation and water hammer, reduces wear on mechanical components, and significantly lowers energy consumption by matching pump output to demand, instead of throttling. The 3-phase 380-480V input and 1.1 kW output are common requirements for such pumps. IP20 ensures protection within a control panel located in a processing area.

Pump controlfluid transferenergy efficiencyprocess controlvariable flowModbus RTUIP20

3. Industrial Fan Control for HVAC/Ventilation Systems

This drive is well-suited for controlling the speed of fans in industrial heating, ventilation, and air conditioning (HVAC) systems or general industrial ventilation.

Problem Solved

Modulating fan speed allows for precise control of airflow and pressure within a building or process, optimizing air quality and temperature while drastically reducing energy consumption compared to constant-speed operation with dampers. The 1.1 kW power and 380-480V input are typical for smaller industrial fans. The IP20 protection is appropriate for installation in an enclosed electrical panel in a plant room.

HVACventilationairflow controlenergy savingsfan speed optimizationModbus RTUIP20
