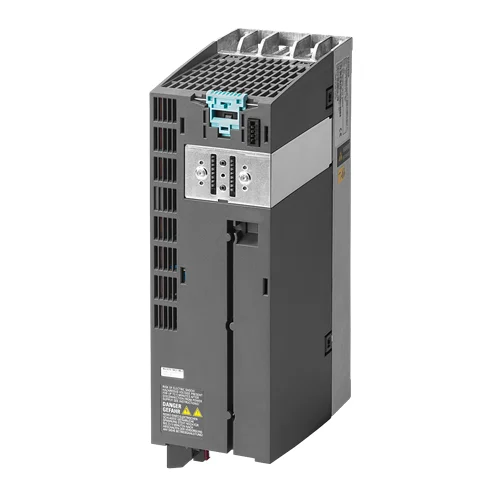

Name: Siemens SINAMICS PM240-2 Power Module 7.5kW - INOSAKI
SKU: Siemens-6SL3210-1PC22-8AL0
Price: 867.63 USD
Availability: InStock

Technical Overview

3AC 200-240V Power Module with 7.5kW (LO) / 5.5kW (HO) output, integrated Class A filter, and braking chopper. IP20 rated.

Key Features

Built-in Class A Filter: Ensures compliance with EMC standards for industrial environments.
Integrated Braking Chopper: Allows for rapid deceleration of motors.
Flexible Input Voltage: Supports 3AC 200V to 240V (+10%/-10%) at 47-63Hz.
IP20 Protection: Standard industrial protection rating for cabinet mounting.
Modular Compatibility: Designed for use with SINAMICS Control Units (CU) and Operator Panels.
Energy Efficiency: Optimized power conversion reduces operational costs, with an efficiency η of 0.97.
Space-Saving Design: Compact FSC frame size (355 x 140 x 165 mm) allows for compact cabinet installation.
High Reliability: Built-in protection and cooling mechanisms ensure a long service life.
Versatile Overload Capability: Supports both High Overload (HO) and Low Overload (LO) for various applications.
Low power loss of 0.26 kW maximises energy efficiency.
Designed for ease of installation with plug-in screw terminals.

Technical Specification Matrix

Parameter	Value
Input Voltage (AC)	3 AC 200 ... 240 V ±10 %
Input Frequency	47 ... 63 Hz
Output Power (Low Overload, LO)	7.50 kW (10.00 hp)
Output Power (High Overload, HO)	5.50 kW (7.50 hp)
Input Rated Current (LO)	37.00 A
Input Rated Current (HO)	33.00 A
Output Rated Current (LO)	28.00 A
Output Rated Current (HO)	22.00 A
Max. Output Current	44.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0 ... 200 Hz
Output Frequency (V/f Control)	0 ... 550 Hz
Overload Capability (LO)	110 % for 57 s (cycle time 300 s), 150 % for 3 s (cycle time 300 s)
Overload Capability (HO)	150 % for 57 s (cycle time 300 s), 200 % for 3 s (cycle time 300 s)
Power Factor λ	0.85
Offset Factor cos φ	0.95
Efficiency η	0.97
Sound Pressure Level (1m)	65 dB
Power Loss	0.26 kW
Filter Class (integrated)	Class A
Cooling	Internal air cooling
Cooling Air Requirement	0.018 m³/s (0.653 ft³/s)
Installation Altitude	1,000 m (3,280.84 ft)
Ambient Temperature (Operation LO)	-10 ... 40 °C (14 ... 104 °F)
Ambient Temperature (Operation HO)	-10 ... 50 °C (14 ... 122 °F)
Ambient Temperature (Transport)	-25 ... 55 °C (-13 ... 131 °F)
Ambient Temperature (Storage)	-25 ... 55 °C (-13 ... 131 °F)
Relative Humidity (Max. Operation)	95 % RH, condensation not permitted
Line Side Connections	Plug-in screw terminals
Line Side Conductor Cross-section	6.00 ... 16.00 mm²
Degree of Protection	IP20 / UL open type
Compliance with Standards	UL, cUL, CE, C-Tick (RCM), SEMI F47
Efficiency Class	IE2
Physical Weight (kg)	5.4
Dimensions L x W x H (cm)	18.5 x 15.7 x 44

Industrial Applications

1. Conveyor Belt Systems

This power module is ideal for controlling conveyor belt systems in manufacturing or logistics. Its 7.5 kW (LO) output power and robust overload capabilities (150% for 57s) ensure reliable start-up and handling of varying loads, while the integrated braking chopper enables precise stopping and deceleration.

Problem Solved

Provides precise speed and torque control for conveyor motors, handling sudden load changes and allowing for controlled stopping, reducing mechanical wear and improving operational efficiency.

Motor ControlVariable Frequency DriveDynamic BrakingOverload CapabilityConveyor Systems

2. Centrifugal Pumps and Fans

The Siemens 6SL3210-1PC22-8AL0 is well-suited for controlling centrifugal pumps and fans in HVAC or fluid transfer systems. Its 7.5 kW (LO) rated power and flexible 3AC 200-240V input voltage provide efficient operation, while the integrated Class A filter ensures electromagnetic compatibility in industrial environments.

Problem Solved

Enables efficient speed control of pumps and fans, optimizing energy consumption and reducing wear. The integrated filter minimizes electromagnetic interference, crucial for sensitive control systems.

HVACFluid TransferEnergy EfficiencyEMC CompliancePump ControlFan Control

3. Machine Tool Spindle Control

For applications requiring precise and dynamic motor control, such as machine tool spindles with up to 5.5 kW (HO) power, this power module offers excellent performance. The high overload capacity (200% for 3s) handles rapid acceleration and deceleration, and the IP20 rating allows for integration within control cabinets, providing protection in industrial settings.

Problem Solved

Offers precise speed and torque control for machining operations, allowing for rapid changes in motor speed and direction while ensuring safe and reliable operation within an enclosed control environment.

Spindle ControlMachine ToolsPrecision ControlDynamic ResponseIndustrial Automation
