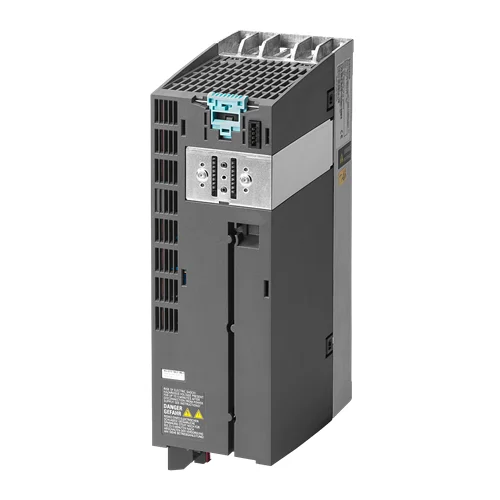

Name: Siemens SINAMICS PM240-2 Power Module 5.5kW - INOSAKI
SKU: Siemens-6SL3210-1PC22-2AL0
Price: 675.61 USD
Availability: InStock

Technical Overview

3AC 200-240V power module with 5.5kW (LO) output, integrated Class A filter, and braking chopper. IP20 rated for industrial drive systems.

Key Features

Integrated Class A line filter.
Built-in braking chopper for dynamic braking.
Supports high (4 kW) and low (5.5 kW) overload operating modes.
3-phase 200-240 VAC input voltage range.
IP20 protection rating.
Suitable for blocksize modular format drive installations.
Approved for Control Unit (CU) firmware version V4.6.
Internal air cooling.

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 200-240 V ±10%
Input Frequency	47-63 Hz
Rated Power (Low Overload, LO)	5.50 kW (7.50 hp)
Rated Power (High Overload, HO)	4.00 kW (5.00 hp)
Rated Input Current (LO)	29.00 A
Rated Input Current (HO)	26.20 A
Rated Output Current (LO)	22.00 A
Rated Output Current (HO)	17.50 A
Max. Output Current	35.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Overload Capability (LO)	110% for 57s, 150% for 3s (cycle time 300s)
Overload Capability (HO)	150% for 57s, 200% for 3s (cycle time 300s)
Integrated Filter Class	Class A
Braking Chopper	Built-in
IP Rating	IP20 / UL open type
Cooling	Internal air cooling
Operating Ambient Temperature (LO)	-10 to 40 °C
Operating Ambient Temperature (HO)	-10 to 50 °C
Power Factor λ	0.85
Efficiency η	0.97
Sound Pressure Level (1m)	65 dB
Conductor Cross-section (Line side)	6.00 - 16.00 mm²
Compliance	UL, cUL, CE, C-Tick (RCM), SEMI F47
Physical Weight (kg)	5.3
Dimensions L x W x H (cm)	18.5 x 15.7 x 44

Industrial Applications

1. Conveyor Belt Systems with Dynamic Braking

This power module is ideal for controlling the speed and rapid deceleration of conveyor belts in manufacturing and logistics. Its 5.5 kW power output and integrated braking chopper allow for precise motion control and efficient stopping, which is critical for product positioning and emergency safety. The 200-240V input voltage ensures compatibility with standard industrial power grids.

Problem Solved

Achieving precise speed control and efficient, rapid deceleration for conveyor systems, reducing wear on mechanical brakes and enhancing operational safety and throughput.

Variable speed driveDynamic brakingMaterial handlingMotor controlMotion control

2. Industrial Fan and Pump Control for HVAC/Water Treatment

With a 5.5 kW power rating and variable frequency output (up to 550 Hz), this module enables efficient control of industrial fans and pumps. It allows systems to match flow or pressure demands precisely, leading to significant energy savings. The integrated Class A filter helps maintain power quality in sensitive environments, while the IP20 rating requires installation within an appropriate enclosure, common in these applications.

Problem Solved

Optimizing energy consumption and achieving precise regulation of fluid/air flow in industrial HVAC and water treatment processes, leading to reduced operational costs and stable process conditions.

HVACCentrifugal pump controlFan controlEnergy efficiencyVariable Frequency Drive (VFD)

3. Textile Machinery Speed Regulation

The SINAMICS PM240-2 is well-suited for textile machinery that demands precise and reliable motor speed control across various processes like spinning, weaving, or winding. Its ability to deliver 4 kW (HO) and 5.5 kW (LO) output power, coupled with a wide output frequency range and overload capabilities, ensures consistent product quality and throughput even under varying load conditions, making it effective for modern textile manufacturing.

Problem Solved

Maintaining consistent product quality and optimizing production throughput by providing accurate and robust motor speed control for complex textile manufacturing processes, handling dynamic load changes.

Textile manufacturingMotor speed controlProcess automationVariable torque applicationsIndustrial machinery
