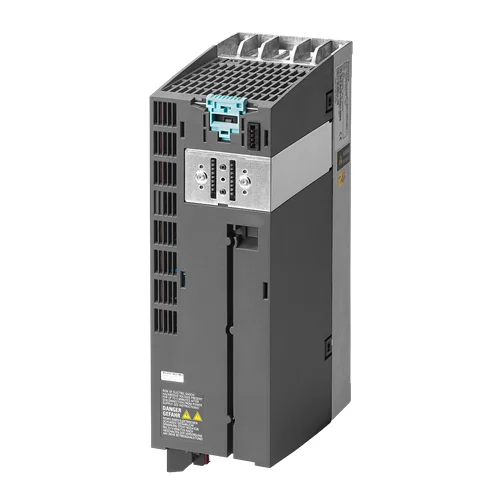

Air-cooled power module, 1/3AC 200-240V input, 3.00 kW (LO)/2.20 kW (HO) output, integrated Class A filter and braking chopper, IP20 rated.
Air-cooled power module, 1/3AC 200-240V input, 3.00 kW (LO)/2.20 kW (HO) output, integrated Class A filter and braking chopper, IP20 rated.
| Parameter | Value |
|---|---|
| Input Phases | 1 / 3 AC |
| Input Line Voltage | 200 ... 240 V ±10% |
| Input Line Frequency | 47 ... 63 Hz |
| Rated Current (LO) | 35.90 A / 20.70 A |
| Rated Current (HO) | 31.30 A / 18.10 A |
| Output Phases | 3 AC |
| Output Rated Voltage | 230V IEC / 240V NEC |
| Rated Power (LO) | 3.00 kW (4.00 hp) |
| Rated Power (HO) | 2.20 kW (3.00 hp) |
| Rated Current (LO) | 13.60 A |
| Rated Current (HO) | 10.40 A |
| Max. Output Current | 20.80 A |
| Pulse Frequency | 4 kHz |
| Output Frequency (Vector Control) | 0 ... 200 Hz |
| Output Frequency (V/f Control) | 0 ... 550 Hz |
| Power Factor λ | 0.85 |
| Efficiency η | 0.96 |
| Sound Pressure Level (1m) | 65 dB |
| Power Loss | 0.14 kW |
| Filter Class (integrated) | Class A |
| Cooling | Internal air cooling |
| Cooling Air Requirement | 0.018 m³/s |
| Installation Altitude | 1,000 m |
| Ambient Temperature (Operation LO) | -10 ... 40 °C |
| Ambient Temperature (Operation HO) | -10 ... 50 °C |
| Relative Humidity (Max. Operation) | 95 % RH, condensation not permitted |
| Degree of Protection | IP20 / UL open type |
| Physical Weight (kg) | 5.3 |
| Dimensions L x W x H (cm) | 16.5 x 14 x 35.5 |
Precisely controls the speed of conveyor belts in manufacturing or logistics, ensuring smooth material flow and preventing jams or damage to delicate items.
Inconsistent material handling due to variable conveyor speeds, leading to production inefficiencies and product damage. The 3.00 kW output and precise 0-550 Hz V/f control allow for accurate speed adjustments.
Optimizes the operation of industrial pumps and fans in HVAC systems, water treatment plants, or fluid transfer applications by adjusting motor speed to match demand, reducing energy consumption and wear.
Energy waste and premature wear on pumps and fans running at fixed speeds regardless of actual system demand. The 2.20 kW (HO) / 3.00 kW (LO) output power and 200-240V input are ideal for common industrial motors, while the integrated Class A filter ensures electromagnetic compatibility in sensitive environments.
Provides reliable speed and torque control for auxiliary drives in machine tools, such as coolant pumps, chip conveyors, or smaller positioning axes, enhancing machining precision and operational flexibility.
Limited flexibility and efficiency in machine tool operations due to fixed-speed auxiliary components. The compact size (35.5 x 14.0 x 16.5 cm), IP20 rating for cabinet installation, and precise vector control (0-200 Hz) allow for seamless integration and fine-tuned control of these critical elements.
