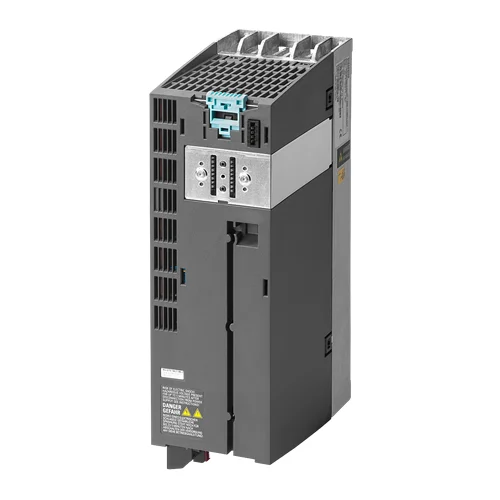

Name: Siemens SINAMICS PM240-2 Power Module 0.75kW - INOSAKI
SKU: Siemens-6SL3210-1PB13-8AL0
Price: 232.82 USD
Availability: InStock

Technical Overview

Compact Siemens SINAMICS PM240-2 Power Module with integrated Class A filter and braking chopper, 200-240V 1/3AC input, 0.75kW LO / 0.55kW HO, IP20 rated.

Key Features

Integrated Class A filter and braking chopper.
Supports precise motor control.
Minimizes downtime.
Compact size: 196 x 73 x 165 mm (HxWxD).
IP20 degree of protection.
Compatible with Control Unit firmware version V4.6 and higher.
High overload (HO) capability: 0.55 kW at 200% for 3s, 150% for 57s, 100% for 240s.
Low overload (LO) capability: 0.75 kW at 150% for 3s, 110% for 57s, 100% for 240s.
Internal air cooling.
Suitable for 1-phase and 3-phase AC input.

Technical Specification Matrix

Parameter	Value
Input Voltage	200-240 V AC ±10%
Number of Phases (Input)	1 / 3 AC
Line Frequency	47-63 Hz
Rated Power (Low Overload - LO)	0.75 kW (1.00 hp)
Rated Power (High Overload - HO)	0.55 kW (0.75 hp)
Rated Output Current (LO)	4.20 A
Rated Output Current (HO)	3.20 A
Max. Output Current	6.40 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Degree of Protection	IP20 / UL open type
Ambient Temperature (Operation LO)	-10 to +40 °C (14 to 104 °F)
Ambient Temperature (Operation HO)	-10 to +50 °C (14 to 122 °F)
Cooling Method	Internal air cooling
Integrated Filter Class	Class A
Power Factor λ	0.85
Efficiency η	0.96
Sound Pressure Level (1m)	50 dB
Physical Weight (kg)	1.5
Dimensions L x W x H (cm)	18.5 x 9 x 28

Industrial Applications

1. Conveyor Belt Systems in Logistics

This power module can precisely control the speed of AC motors used in conveyor belt systems within logistics and material handling facilities. The integrated braking chopper is crucial for quick and controlled stops, especially when handling varying loads or in emergency situations, leveraging its 0.75 kW (LO) rated power and braking capabilities.

Problem Solved

Enables efficient material flow with variable speed control and ensures safe, rapid deceleration of conveyor belts, reducing product damage and improving operational safety.

Variable speed driveAC motor controlmaterial handlingbraking chopperlogistics automationconveyor systems

2. Small to Medium Pumping Applications

Ideal for controlling pumps in industrial water treatment, HVAC systems, or chemical dosing where precise flow control is required. The module's 200-240V 1/3AC input flexibility and overload capabilities (0.75 kW LO / 0.55 kW HO) ensure reliable operation during startup or sudden load changes.

Problem Solved

Provides energy-efficient and precise control over pump speed, optimizing flow rates, reducing wear on mechanical components, and preventing water hammer.

Pump controlvariable frequency drive (VFD)HVACwater treatmentflow controlenergy efficiency

3. Fan and Blower Control in Industrial Ventilation

Suitable for driving fans and blowers in industrial ventilation and air circulation systems. The integrated Class A filter helps maintain power quality in the electrical network, and the IP20 rating is acceptable for installation within a control cabinet in typical industrial environments, facilitating demand-driven airflow adjustments.

Problem Solved

Allows for demand-driven adjustment of air flow, leading to significant energy savings and improved air quality control, while minimizing electrical interference within the power network.

Fan controlindustrial ventilationair handling units (AHU)VFDenergy savingair quality
