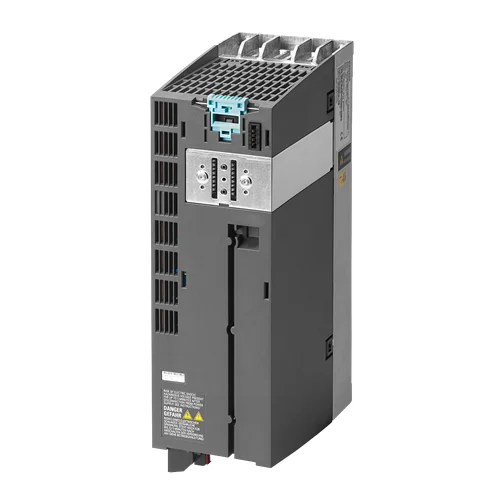

Name: Siemens SINAMICS PM240-2 Power Module 0.75kW-1.1kW - INOSAKI
SKU: Siemens-6SL3210-1PB15-5AL0
Price: 246.87 USD
Availability: InStock

Technical Overview

1/3AC 200-240V, 0.75kW HO / 1.1kW LO Power Module with integrated Class A filter and braking chopper, IP20 rated.

Key Features

Supports 1/3AC 200-240V input voltage.
Integrated Class A EMC filter.
Built-in braking chopper for dynamic deceleration.
Flexible overload capabilities: High Overload (0.75kW) and Low Overload (1.1kW).
IP20 protection rating for installation in control cabinets.
Compact Frame Size B (FSB) design.
Operates in ambient temperatures from -10 to +50°C.
Optimized for CU Firmware Version V4.6 (requires separate Control Unit and Panel).

Technical Specification Matrix

Parameter	Value
Article number	6SL3210-1PB15-5AL0
Input Voltage	1/3AC 200-240V (+10%/-10%)
Line Frequency	47-63Hz
Rated Current (LO)	13.50 A (1AC) / 7.80 A (3AC)
Rated Current (HO)	11.80 A (1AC) / 6.80 A (3AC)
Output Phases	3 AC
Rated Output Voltage	230V IEC / 240V NEC
Rated Power (LO)	1.10 kW (1.50 hp)
Rated Power (HO)	0.75 kW (1.00 hp)
Rated Output Current (LO)	6.00 A
Rated Output Current (HO)	4.20 A
Max. Output Current	9.00 A
Pulse Frequency	4 kHz
Output Frequency for Vector Control	0 ... 200 Hz
Output Frequency for V/f Control	0 ... 550 Hz
Overload Capability (LO)	1.1 x rated output current (110%) for 57s, 1.5 x rated output current (150%) for 3s (cycle time 300s)
Overload Capability (HO)	1.5 x output current rating (150%) for 57s, 2 x output current rating (200%) for 3s (cycle time 300s)
Power Factor λ	0.85
Offset Factor cos φ	0.95
Efficiency η	0.96
Sound Pressure Level (1m)	62 dB
Power Loss	0.05 kW
Filter Class (integrated)	Class A
Cooling	Internal air cooling
Cooling Air Requirement	0.009 m³/s (0.325 ft³/s)
Installation Altitude	1,000 m (3,280.84 ft)
Ambient Temperature (Operation LO)	-10 ... 40 °C (14 ... 104 °F)
Ambient Temperature (Operation HO)	-10 ... 50 °C (14 ... 122 °F)
Ambient Temperature (Transport/Storage)	-25 ... 55 °C (-13 ... 131 °F)
Relative Humidity (Max. Operation)	95 % RH, condensation not permitted
Connections (Line side)	Plug-in screw terminals
Degree of Protection	IP20 / UL open type
Compliance with Standards	UL, cUL, CE, C-Tick (RCM), SEMI F47
Efficiency Class	IE2
Physical Weight (kg)	3.1
Dimensions L x W x H (cm)	18.5 x 11.4 x 36.5

Industrial Applications

1. Conveyor Belt Systems with Dynamic Braking

This power module is suitable for controlling the speed of motors in conveyor systems, particularly those that require frequent acceleration and deceleration cycles. The integrated braking chopper efficiently dissipates regenerative energy during deceleration, preventing overvoltage conditions and allowing for dynamic braking. The IP20 rating makes it suitable for installation within a protective control cabinet, a standard practice in industrial environments.

Problem Solved

Provides precise speed control and efficient braking for conveyor belts, reducing wear and tear on mechanical components, preventing overvoltage, and improving operational safety.

Variable Frequency DriveRegenerative BrakingConveyor ControlMotor Speed ControlIndustrial AutomationIP20

2. Energy-Efficient Fan and Pump Control in HVAC

The module can be used to drive fans and pumps in Heating, Ventilation, and Air Conditioning (HVAC) systems. Its Low Overload (LO) capability of 1.1kW is well-suited for these applications, which typically exhibit quadratic torque-speed characteristics. The integrated Class A filter helps maintain electromagnetic compatibility (EMC) in sensitive building environments, preventing interference with other electronic equipment.

Problem Solved

Enables energy-efficient operation and precise flow/air volume control in HVAC systems by varying motor speed, complying with electromagnetic compatibility standards for reliable building automation.

HVACFan ControlPump ControlEnergy EfficiencyVFDClass A FilterEMC

3. Dynamic Control for Small Machine Tools and Packaging Machinery

Given its High Overload (HO) capacity (0.75kW with 200% for 3s, 150% for 57s) and output frequency up to 550Hz for V/f control, this power module is ideal for smaller machine tools (e.g., drills, small lathes) or packaging machinery that require short bursts of high torque for tasks like cutting, clamping, or indexing, followed by steady-state operation. Its compact size (100x291x165 mm) allows for integration into space-constrained machinery.

Problem Solved

Provides dynamic torque control and precise speed regulation for demanding, cyclical operations in manufacturing and packaging, enhancing productivity, product quality, and enabling compact machine designs.

Machine Tool ControlPackaging AutomationTorque ControlDynamic ResponseIndustrial MachineryHigh OverloadV/f Control
