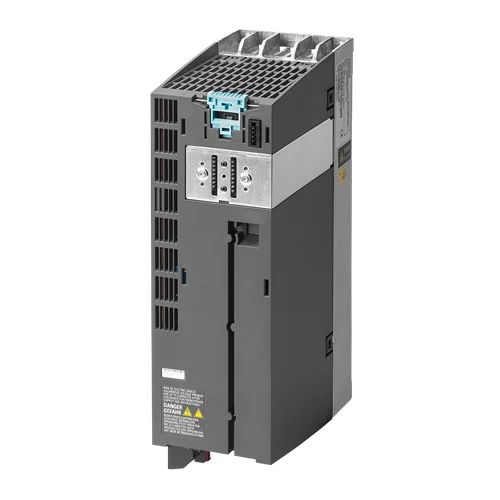

Name: Siemens SINAMICS PM240-2 Power Module 0.55kW - INOSAKI
SKU: Siemens-6SL3210-1PB13-0AL0
Price: 214.94 USD
Availability: InStock

Technical Overview

Compact 1/3AC 200-240V power module with integrated Class A filter, braking chopper, and IP20 rating for 0.55kW motor control in industrial automation.

Key Features

Integrated Class A radio interference suppression filter.
Integrated braking chopper for four-quadrant applications.
Supports both High Overload (HO) and Low Overload (LO) applications.
Compact Frame Size A (FSA) design for space-efficient installation.
Input voltage range: 200-240 V AC, 1/3-phase.
IP20 protection rating for control cabinet installation.
Internal air cooling.
Plug-in screw terminals for connections.
Wide ambient temperature tolerance from -10 °C to +50 °C depending on load.

Technical Specification Matrix

Parameter	Value
Number of phases (Input)	1 / 3 AC
Mains Voltage	200 ... 240 V ±10%
Line Frequency	47 ... 63 Hz
Rated Power (Low Overload)	0.55 kW
Rated Power (High Overload)	0.37 kW
Rated Current (Low Overload)	3.20 A
Rated Current (High Overload)	2.30 A
Max. Output Current	4.80 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0 ... 200 Hz
Output Frequency (V/f Control)	0 ... 550 Hz
IP Rating	IP20 / UL open type
Ambient Temperature (Operation LO)	-10 ... 40 °C
Ambient Temperature (Operation HO)	-10 ... 50 °C
Filter Class	Class A (integrated)
Cooling	Internal air cooling
Efficiency η	0.96
Physical Weight (kg)	1.5
Dimensions L x W x H (cm)	18.5 x 9 x 28

Industrial Applications

1. Conveyor Systems for Small to Medium Loads

The Siemens SINAMICS PM240-2 is suitable for controlling motors in conveyor systems handling small to medium-sized loads, requiring precise speed and torque control.

Problem Solved

Efficiently manages motor speed and acceleration/deceleration for varying conveyor loads, reducing mechanical stress and energy consumption. The integrated braking chopper allows for rapid deceleration and regenerative braking, essential for quick stops or handling descending loads.

Variable Frequency DriveMotor ControlConveyor BeltRegenerative Braking0.55 kW200-240VIP20

2. Pump and Fan Control in HVAC Systems

This power module can be used to regulate the speed of pumps and fans in Heating, Ventilation, and Air Conditioning (HVAC) systems, optimizing airflow and fluid circulation.

Problem Solved

Provides energy savings by allowing pumps and fans to operate at variable speeds according to demand, rather than constant full speed. The 1/3 AC 200-240V input makes it compatible with common industrial power supplies, and the IP20 rating ensures safe operation within a control cabinet in a typical plant room environment.

HVACVariable Speed PumpFan ControlEnergy Efficiency0.55 kW200-240VIP20

3. Material Handling Equipment (e.g., Small Cranes, Hoists)

Ideal for controlling motors in light material handling equipment, such as small cranes, hoists, or automated guided vehicles (AGVs), where smooth acceleration, deceleration, and positioning are critical.

Problem Solved

Enables precise control over lifting and moving operations, improving safety and efficiency. The integrated braking chopper is particularly beneficial for lifting applications, allowing controlled lowering and dissipating regenerative energy, preventing overvoltage conditions and ensuring stable operation. The 0.37kW (HO) rating supports applications with high peak torque requirements.

Material HandlingHoist ControlCrane DriveBraking ChopperTorque Control0.37 kW200-240VIP20
