3-phase 380…480 V drive, 30 kW LO / 22 kW HO, USS/MODBUS RTU, IP20, FSD frame, integrated fan cooling.

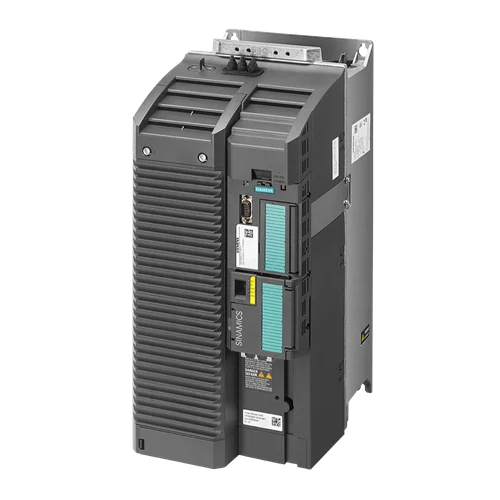

Siemens SINAMICS G120C variable frequency drive, part number 6SL3210-1KE26-0AB1, for 3-phase 380...480 V input with integrated USS/MODBUS RTU communication. The datasheet shows 30 kW/30 hp light overload output and 22 kW/25 hp high overload output, 4 kHz pulse frequency, vector and V/f control modes, integrated fan cooling, IP20 protection, and FSD frame size. Mechanical and electrical terminal data, environmental limits, and certified compliance marks are listed in the document.
| Parameter | Value |
|---|---|
| Input phases | 3 AC |
| Power supply voltage | 380 ... 480 V +10 % -20 % |
| Power supply frequency | 47 ... 63 Hz |
| Rated input current (LO) | 53.00 A |
| Rated input current (HO) | 44.00 A |
| Output phases | 3 AC |
| Rated output voltage | 400V IEC 480V NEC 1) |
| Rated output power (LO) | 30.00 kW 30.00 hp |
| Rated output power (HO) | 22.00 kW 25.00 hp |
| Rated output current (LO) | 58.00 A |
| Rated output current (HO) | 43.00 A |
| Rated output current (IN) | 58.00 A |
| Maximum output current | 87.00 A |
| Pulse frequency | 4 kHz |
| Output frequency in vector control | 0 ... 240 Hz |
| Output frequency in V/f control | 0 ... 550 Hz |
| Power factor λ | 0.90 ... 0.95 |
| Displacement factor cos φ | 0.99 |
| Efficiency η | 0.98 |
| Sound pressure level LpA(1m) | 72 dB |
| Power loss | 1,040.0 W |
| Integrated filter class | A 级 |
| Communication | USS/MODBUS RTU |
| Standard digital inputs | 6 |
| Switching level 0→1 | 11 V |
| Switching level 1→0 | 5 V |
| Maximum input current | 15 mA |
| Fail-safe digital inputs | 1 |
| Relay output count | 1 |
| Relay output load | DC 30 V, 0.5 A |
| Transistor output count | 1 |
| Transistor output load | DC 30 V, 0.5 A |
| Analog/digital input count | 1 (压差输入端) |
| Analog/digital input resolution | 10 位 |
| Analog/digital input threshold 0→1 | 4 V |
| Analog/digital input threshold 1→0 | 1.6 V |
| Analog output count | 1 (电位相关输出端) |
| Motor temperature sensor input | 1 个电机温度传感器输入端，可连接的 PTC 传感器，KTY 和Thermo-Click，准确度在 ±5 °C 内 |
| V/f linear/square/parameterizable | 是 |
| V/f with flux current control (FCC) | 是 |
| V/f ECO linear/square | 是 |
| Vector control without encoder | 是 |
| Vector control with encoder | 否 |
| Torque control without encoder | 否 |
| Torque control with encoder | 否 |
| Cooling | 通过集成的风扇进行空气冷却 |
| Cooling air demand | 0.055 m³/s (1.942 ft³/s) |
| Installation altitude | 1,000 米 (3,280.84 ft) |
| Operating temperature | -20 ... 40 °C (-4 ... 104 °F) |
| Transport temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -25 ... 55 °C (-13 ... 131 °F) |
| Relative humidity | 运行，最大 95 % RH，禁止凝露 |
| Signal cable cross-section | 0.15 ... 1.50 mm² (AWG 24 ... AWG 16) |
| Supply side terminal type | 螺钉型接线端子 |
| Supply side cross-section | 10.00 ... 35.00 mm² (AWG 8 ... AWG 2) |
| Motor side terminal type | 螺钉型端子 |
| Motor side cross-section | 10.00 ... 35.00 mm² (AWG 8 ... AWG 2) |
| DC bus terminal type | 螺钉型端子 |
| DC bus cross-section | 10.00 ... 35.00 mm² (AWG 8 ... AWG 2) |
| Maximum cable length | 10 米 (32.81 ft) |
| PE terminal | 螺钉型接线端子 |
| Maximum motor cable length shielded | 200 米 (656.17 ft) |
| Maximum motor cable length unshielded | 300 米 (984.25 ft) |
| Protection rating | IP20 / UL 开放式 |
| Frame size | FSD |
| Net weight | 18.80 kg (41.45 lb) |
| Width | 200 mm (7.87 in) |
| Height | 472 mm (18.58 in) |
| Depth | 237 mm (9.33 in) |
| Standards | CE, cUL, UL, KC, EAC, C-Tick (RCM) |
| CE marking | EMV 准则 2004 / 108/EG，低压准则 2006/95/EG |
| Efficiency class | IE2 |
| Reference converter comparison (90% / 100%) | 54.1 % |
The 30 kW low-overload rating, vector control, and 0...240 Hz output range support stable speed regulation for conveyor systems with varying load demand.
Maintains constant conveyor speed under fluctuating mechanical load and improves process throughput control.
V/f control with FCC and ECO modes, combined with 3-phase 380...480 V input and high efficiency, makes it suitable for energy-optimized fan and pump applications.
Reduces energy consumption while providing adjustable flow and pressure control.
The 58 A rated current, 87 A maximum output current, integrated cooling, and multiple I/O points support compact machine skids and auxiliary drive sections in packaged equipment.
Provides a compact, UL open-type drive with sufficient overload capability and control I/O for machine integration.
