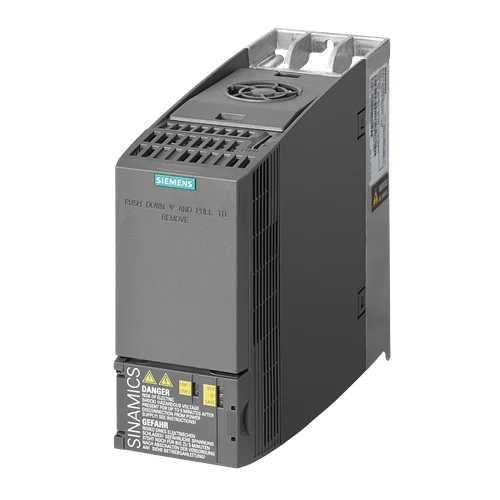

Name: Siemens SINAMICS G120C 3kW Variable Frequency Drive - INOSAKI
SKU: Siemens-6SL3210-1KE17-5AF1
Price: 416.11 USD
Availability: InStock

Technical Overview

3-phase 380-480V compact inverter with 3kW (LO) / 2.2kW (HO) output, PROFINET/EtherNet/IP, Class A filter, and STO.

Key Features

Onboard PROFINET and EtherNet/IP communication.
Integrated fail-safe digital input for Safe Torque Off (STO) functionality.
Supports sensorless vector control (0-240Hz) and V/f control (0-550Hz).
Integrated Class A EMC filter for reduced electromagnetic interference.
IE2 efficiency class per IEC61800-9-2.
Compact FSA frame size (73 x 196 x 200mm) for space-saving installation.
Wide input voltage range: 3 AC, 380-480V (+10%/-20%), 47-63Hz.
Comprehensive I/O: 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output.

Technical Specification Matrix

Parameter	Value
Input Voltage	3 AC, 380-480V (+10%/-20%), 47-63Hz
Rated Power (Low Overload LO)	3.00kW / 4.00hp
Rated Power (High Overload HO)	2.20kW / 3.00hp
Output Rated Current (LO)	7.30A
Output Rated Current (HO)	5.60A
Max Output Current	11.20A
Output Frequency (Vector Control)	0-240Hz
Output Frequency (V/f Control)	0-550Hz
Degree of Protection	IP20 / UL open type
Communication Interface	PROFINET, EtherNet/IP
Standard Digital Inputs	6
Fail-Safe Digital Inputs	1 (Integrated Safe Torque Off)
Digital Outputs (Relay)	1 (changeover, DC 30V / 0.5A)
Digital Outputs (Transistor)	1 (DC 30V / 0.5A)
Analog Inputs	1 (differential, 10-bit)
Analog Outputs	1 (non-isolated)
Motor Temperature Sensor Input	PTC, KTY, Thermo-Click
Efficiency	97%
Integrated Filter	Class A
Operating Temperature	-10...40°C
Physical Weight (kg)	1.7
Dimensions L x W x H (cm)	20 x 7.3 x 19.6

Industrial Applications

1. HVAC Fan Speed Control in Commercial Buildings

This inverter effectively controls the speed of large ventilation fans in commercial HVAC systems, allowing for optimized airflow and energy efficiency in response to building demands.

Problem Solved

Inefficient on/off or single-speed fan operation leads to wasted energy and suboptimal climate control. The inverter's variable speed control (0-550Hz V/f control) precisely matches fan speed to airflow requirements, reducing energy consumption and operational noise. The 3.0kW low overload rating is ideal for fan applications, and PROFINET/EtherNet/IP facilitates integration with Building Management Systems (BMS).

Variable Speed DriveHVACFan ControlEnergy EfficiencyPROFINETV/f Control3.0kW

2. Conveyor Belt Systems in Automated Warehouses

The drive precisely controls the speed, acceleration, and deceleration of conveyor belts in automated warehousing and logistics, ensuring smooth material flow and preventing product damage.

Problem Solved

Conveyor systems require controlled starts, stops, and variable speeds for different loads or synchronization. The inverter's sensorless vector control (0-240Hz) provides accurate torque and speed for dynamic loads. The integrated Safe Torque Off (STO) function ensures immediate and safe stopping for maintenance or emergencies, meeting safety standards. Its IP20 rating supports cabinet mounting in industrial settings.

Conveyor SystemsMaterial HandlingVariable SpeedSensorless Vector ControlSafe Torque Off (STO)Industrial Automation2.2kW High Overload

3. Pump Flow Regulation in Water Treatment Facilities

This inverter accurately regulates the flow rate of pumps in water treatment plants by adjusting motor speed, optimizing process control, and reducing wear on mechanical components.

Problem Solved

Fixed-speed pump operation in water treatment can lead to high energy consumption and pressure fluctuations. The inverter's variable speed capability (3.0kW LO for pump applications) enables precise flow regulation, eliminating the need for inefficient mechanical throttling valves. This saves energy and extends pump lifespan. The integrated Class A EMC filter minimizes electromagnetic interference in sensitive plant environments, and PROFINET communication integrates with SCADA systems.

Pump ControlWater TreatmentFlow RegulationEnergy SavingPROFINETClass A EMC Filter3.0kW
