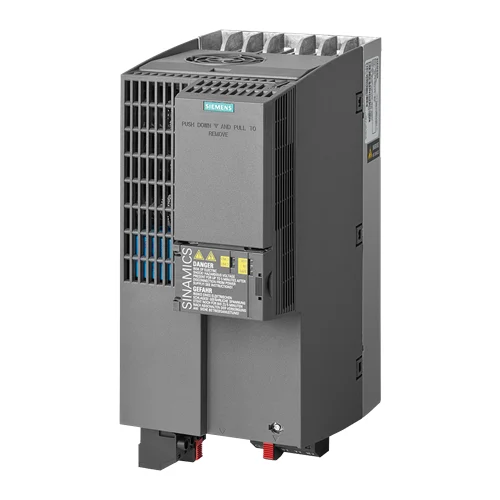

Name: Siemens SINAMICS G120C 15kW Variable Frequency Drive - INOSAKI
SKU: Siemens-6SL3210-1KE23-2UP1
Price: 1027.50 USD
Availability: InStock

Technical Overview

Compact variable frequency drive with 15kW LO, 11kW HO, integrated STO, PROFIBUS-DP, and IP20 protection.

Key Features

Compact design for space-saving installation.
Integrated Safe Torque Off (STO) safety function.
PROFIBUS-DP fieldbus communication.
Wide input voltage range: 3AC 380-480V (+10%/-20%).
Flexible overload capabilities for diverse applications.
Robust I/O interface: 6 Digital Inputs, 2 Digital Outputs, 1 Analog Input, 1 Analog Output.
IP20 / UL OPEN TYPE protection.
Energy-efficient, sensorless vector control for high torques at low frequencies.
Intuitive commissioning and cloning functions (via Smart Access Module, BOP-2, IOP-2 or SD card).

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 380-480 V +10% -20%
Line Frequency	47 - 63 Hz
Rated Power (Low Overload - LO)	15.00 kW
Rated Power (High Overload - HO)	11.00 kW
Rated Current (LO)	40.60 A (Input), 31.00 A (Output)
Rated Current (HO)	36.40 A (Input), 25.00 A (Output)
Max. Output Current	50.00 A
Output Frequency (Vector Control)	0 - 240 Hz
Output Frequency (V/f Control)	0 - 550 Hz
Overload Capability (LO)	150 % base load current for 3 s, followed by 110 % for 57 s in a 300 s cycle time.
Overload Capability (HO)	200% base load current for 3 s, followed by 150% for 57 s in a 300 s cycle time.
Digital Inputs	6 Standard DI, 1 Fail-Safe DI
Digital Outputs	1 Relay Changeover Contact, 1 Transistor Output
Analog Inputs	1 (Differential input)
Analog Outputs	1 (Non-isolated output)
Fieldbus Communication	PROFIBUS DP
Protection Rating	IP20 / UL OPEN TYPE
Cooling	Air cooling using an integrated fan
Installation Altitude	1,000 m (3,280.84 ft)
Power Factor λ	0.70 ... 0.85
Efficiency η	0.97
Sound Pressure Level (1m)	66 dB
Power Loss	361.0 W
Filter Class (integrated)	Unfiltered
Physical Weight (kg)	5.2
Dimensions L x W x H (cm)	27 x 36.5 x 16

Industrial Applications

1. Conveyor Belt Systems in Manufacturing

This drive can precisely control the speed and torque of motors driving conveyor belts, allowing for optimized material flow and preventing jams. The 15.0 kW low overload capacity is suitable for steady-state material transport, while the 11.0 kW high overload handles momentary increased loads. The integrated Safe Torque Off (STO) function provides critical safety for emergency stops or maintenance.

Problem Solved

Ensures smooth, controlled movement of goods, adapts to varying production rates, and provides critical safety to prevent personnel injury and equipment damage.

Variable Speed DriveTorque ControlMaterial HandlingSafe Torque Off15kWPROFIBUS-DP

2. Pump Control in Water Treatment Facilities

The SINAMICS G120C can regulate the speed of pumps in water treatment plants, allowing for efficient flow control and energy savings. The IP20 rating is suitable for cabinet installations in a controlled environment, and the 3AC 380-480V input matches common industrial power supplies.

Problem Solved

Optimizes energy consumption by matching pump speed to demand, reduces wear and tear on pumps and pipes, and provides reliable operation for critical infrastructure.

VFDPump ControlEnergy EfficiencyFlow Regulation3AC 380-480VIP20

3. HVAC Fan Control in Industrial Buildings

This drive is well-suited for controlling large industrial fans in HVAC systems, providing precise air volume regulation based on building requirements. The 0-550 Hz V/f control output frequency provides flexibility for fan motor speed adjustments, and PROFIBUS-DP allows integration into building management systems.

Problem Solved

Enables dynamic adjustment of ventilation, leading to significant energy savings and improved air quality control. The compact size facilitates installation within crowded equipment rooms.

HVACFan ControlEnergy SavingsAir FlowVFD0-550 HzPROFIBUS-DP
