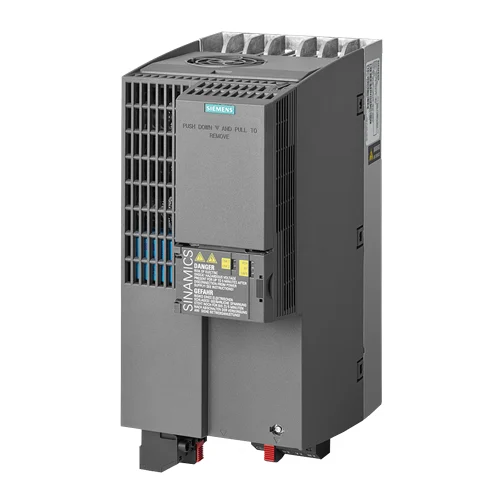

Name: Siemens SINAMICS G120C 11kW Compact Frequency Inverter - INOSAKI
SKU: Siemens-6SL3210-1KE22-6AB1
Price: 703.93 USD
Availability: InStock

Technical Overview

11kW compact 3-phase (380-480V) frequency inverter with integrated Class A filter, USS/MODBUS RTU, Safe Torque Off, and IP20 protection.

Key Features

Compact design suitable for side-by-side mounting, minimizing space requirements.
Integrated Safe Torque Off (STO) safety function for enhanced operational safety.
Optimized parameter set for simplified commissioning and operation.
Supports BOP-2 or IOP operator panels and integrated USB for easy parameter assignment.
High power density with low envelope dimensions.
Integrated Class A filter for electromagnetic compatibility.
Communication via USS/MODBUS RTU fieldbus protocols.
Features 6 standard digital inputs, 1 fail-safe digital input, 2 digital outputs (relay and transistor), 1 analog input, and 1 analog output.
Includes a motor temperature sensor input (PTC/KTY).
Cloning function via BOP-2 or SD card for efficient setup replication.
Overload capability of 150% for 3 seconds (low overload) and 200% for 3 seconds (high overload).

Technical Specification Matrix

Parameter	Value
Input Voltage	3 AC, 380-480 V +10% -20%
Input Line Frequency	47-63 Hz
Rated Power (Low Overload)	11.00 kW
Rated Current (Low Overload)	25.00 A
Maximum Output Current	33.00 A
Output Frequency (Vector Control)	0-240 Hz
Output Frequency (V/f Control)	0-550 Hz
Protection Rating	IP20 / UL OPEN TYPE
Integrated Filter Class	Class A
Communication Interface	USS/MODBUS RTU
Standard Digital Inputs	6
Fail-safe Digital Inputs	1
Digital Outputs (Relay Changeover Contact)	1
Digital Outputs (Transistor)	1
Analog Inputs (Differential)	1
Analog Outputs (Non-isolated)	1
Motor Temperature Sensor Input	1 (PTC, KTY)
Efficiency η	0.97
Sound Pressure Level (1m)	66 dB
Power Loss	298.0 W
Physical Weight (kg)	5.5
Dimensions L x W x H (cm)	27 x 36.5 x 16

Industrial Applications

1. Conveyor Belt Systems in Manufacturing

This drive can precisely control the speed of conveyor belts in manufacturing and logistics. The 11 kW power rating is suitable for medium-duty conveyors.

Problem Solved

Enables soft start/stop to reduce mechanical stress and wear on the conveyor system, improving operational lifespan and reducing maintenance. Variable speed control optimizes material flow and throughput for different product types or production stages. The integrated Safe Torque Off (STO) ensures safety during maintenance or emergency stops, preventing unexpected motor restarts.

Variable speed controlMaterial handlingSoft startSoft stopConveyorLogisticsSafe Torque Off11 kW380-480V

2. Pump Control in HVAC or Water Treatment

The SINAMICS G120C can efficiently regulate the speed of pumps in HVAC systems for climate control or in water treatment plants for flow management.

Problem Solved

By adjusting pump speed based on demand, it significantly reduces energy consumption compared to constant-speed operation with throttling valves. This also minimizes wear on pipes and pumps, extends equipment life, and maintains precise pressure or flow rates. The IP20 rating is acceptable for installation within an enclosed control cabinet in a plant room.

HVACPump controlVariable frequency driveEnergy efficiencyFlow regulationWater treatmentIP2011 kW380-480V

3. Fan and Blower Control in Industrial Ventilation

This compact inverter is well-suited for controlling industrial fans and blowers, optimizing ventilation and air circulation in factories, warehouses, or exhaust systems.

Problem Solved

Provides precise air flow control to maintain desired environmental conditions, save energy, and reduce noise. The ability to vary fan speed dynamically prevents over-ventilation, leading to energy savings, and improves air quality management. The integrated Class A filter helps to ensure compliance with EMC requirements in industrial environments.

Industrial ventilationFan controlBlowerAir flowEnergy savingVFDClass A filter11 kW380-480V
