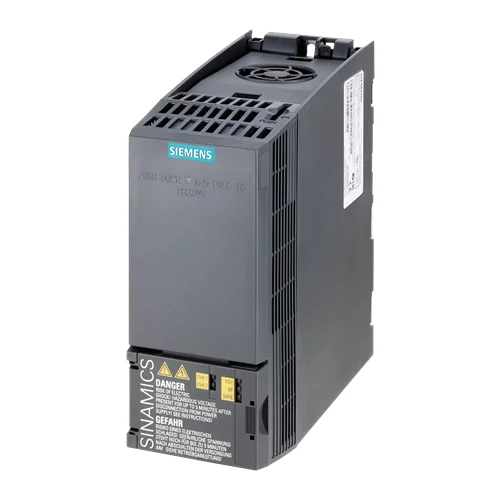

Name: Siemens SINAMICS G120C 1.1kW Variable Frequency Drive - INOSAKI
SKU: Siemens-6SL3210-1KE13-2UB2
Price: 308.39 USD
Availability: InStock

Technical Overview

Compact 1.1kW variable frequency drive with 380-480V 3AC input, IP20 protection, Safe Torque Off, and USS/Modbus RTU fieldbus communication.

Key Features

Rated power of 1.1 kW for low overload applications and 0.75 kW for high overload applications.
Input voltage range of 380-480V AC, 3-phase, with 47-63 Hz frequency.
Overload capability: 150% for 3 seconds, 110% for 57 seconds in a 300-second cycle (low overload).
Overload capability: 200% for 3 seconds, 150% for 57 seconds in a 300-second cycle (high overload).
IP20 / UL OPEN TYPE protection ensures durability in industrial environments.
Integrated I/O interface: 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, and 1 motor temperature input.
Supports USS/MODBUS RTU fieldbus communication protocols.
Output frequency up to 550 Hz for V/f control and 240 Hz for vector control.

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 380-480V (+10%/-20%)
Input Frequency	47-63 Hz
Rated Power (Low Overload)	1.1 kW
Rated Power (High Overload)	0.75 kW
Rated Current (Low Overload)	4.10 A
Rated Current (High Overload)	3.20 A
Output Frequency (V/f control)	0-550 Hz
Output Frequency (Vector Control)	0-240 Hz
Protection Rating	IP20 / UL Open Type
Digital Inputs	6
Digital Outputs	2
Analog Inputs	1
Analog Outputs	1
Motor Temperature Sensor Input	1
Fieldbus Communication	USS/MODBUS RTU
Safety Function	Safe Torque Off (STO)
Physical Weight (kg)	1.1
Dimensions L x W x H (cm)	22.5 x 27 x 8.5

Industrial Applications

1. Conveyor Belt Systems

This variable frequency drive is ideal for controlling conveyor belt motors in material handling applications. Its 1.1 kW rated power is suitable for moderate loads, while precise speed control (0-550 Hz output frequency) ensures smooth acceleration/deceleration, reducing wear and tear on mechanical components. The integrated Safe Torque Off (STO) function provides an emergency stop capability for operator safety, and the IP20 rating is sufficient for controlled indoor environments.

Problem Solved

Provides precise speed control and safe operation for conveyor motors, optimizing material flow and enhancing operator safety during maintenance or emergencies.

Variable Speed ControlMotor ProtectionSafe Torque OffMaterial Handling3-Phase Motor

2. Industrial Pumps and Fans

The drive's ability to operate with 380-480V AC input and provide variable frequency output makes it well-suited for controlling industrial pumps and fans. The 1.1 kW power rating is appropriate for small to medium-sized fluid or air movement systems. Its energy efficiency and sensorless vector control can optimize energy consumption by matching motor speed to demand, preventing cavitation in pumps or excessive airflow in ventilation systems.

Problem Solved

Optimizes energy consumption and operational efficiency for pumps and fans by precisely matching motor speed to process requirements, reducing wear and noise.

Energy EfficiencyProcess ControlHVACFluid DynamicsVariable Speed Drive

3. Mixing Equipment Control

For industrial mixing applications requiring controlled agitation, this drive offers the necessary power (1.1 kW) and precise speed adjustments (0-550 Hz output frequency) to achieve desired mixing consistencies. The robust overload capabilities (up to 200% for 3s) can handle transient load changes often encountered in mixing processes. Modbus RTU communication allows for seamless integration into larger automation systems for remote monitoring and control.

Problem Solved

Enables precise and robust control of mixing speeds, accommodating varying material viscosities and ensuring consistent product quality while integrating into existing control systems.

Process AutomationTorque ControlOverload ProtectionModbus RTUBatch Processing
