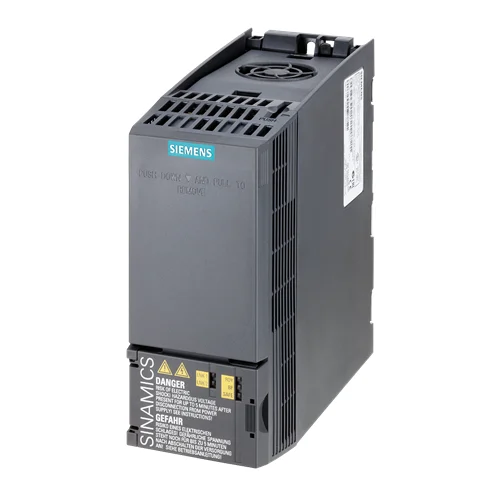

Name: Siemens SINAMICS G120C 1.1kW Compact Variable Frequency Drive - INOSAKI
SKU: Siemens-6SL3210-1KE13-2AB2
Price: 350.54 USD
Availability: InStock

Technical Overview

Compact 3-phase 380-480V VFD with 1.1kW LO/0.75kW HO, integrated Class A filter, STO, and USS/MODBUS RTU. IP20 rated.

Key Features

Compact design (Size FSAA)
Integrated Class A filter for EMC compliance
Integrated Safe Torque Off (STO) function
USS/MODBUS RTU fieldbus communication
Flexible I/O interface: 6 Digital Inputs, 2 Digital Outputs, 1 Analog Input, 1 Analog Output, 1 Motor Temperature Input
Input voltage: 3AC 380-480V, 47-63Hz
IP20 / UL OPEN TYPE protection
High efficiency of 97%

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 380-480V +10% -20%
Line Frequency	47-63 Hz
Rated Power (Low Overload)	1.1 kW
Rated Power (High Overload)	0.75 kW
Rated Current Output (Low Overload)	3.10 A
Rated Current Output (High Overload)	2.20 A
Max. Output Current	4.40 A
Output Frequency (Vector Control)	0-240 Hz
Output Frequency (V/f Control)	0-550 Hz
Integrated Filter Class	Class A
Digital Inputs (DI)	6
Digital Outputs (DO)	2
Analog Inputs (AI)	1
Analog Outputs (AO)	1
Motor Temperature Sensor Input	1
Fieldbus Communication	USS/MODBUS RTU
Protection Rating	IP20 / UL OPEN TYPE
Safe Torque Off (STO)	Integrated
Efficiency	0.97
Power Loss	49.0 W
Sound Pressure Level (1m)	49 dB
Overload Capability (Low Overload)	150% for 3s, 110% for 57s in 300s cycle
Overload Capability (High Overload)	200% for 3s, 150% for 57s in 300s cycle
Physical Weight (kg)	1.3
Dimensions L x W x H (cm)	22.5 x 27 x 8.5

Industrial Applications

1. Conveyor Systems in Manufacturing

Control the speed of conveyor belts in automated assembly lines or material handling systems.

Problem Solved

Precise speed and torque control (0-240Hz/550Hz output frequency) allows for optimized material flow, reduced wear on mechanical components, and energy savings. The integrated STO provides essential safety for personnel during maintenance or emergency stops, preventing unintended motor restarts. The IP20 rating is suitable for installation within control cabinets.

Variable Frequency DriveMotor ControlConveyor BeltMaterial HandlingSafe Torque Off (STO)Energy Efficiency3-phase400V

2. Pump and Fan Control in HVAC/Process Industries

Regulating the speed of industrial pumps and fans in heating, ventilation, air conditioning (HVAC) systems or process control applications to match demand.

Problem Solved

Optimizes energy consumption by precisely controlling pump/fan speed based on demand, rather than using mechanical throttling (V/f control up to 550 Hz). The Class A filter ensures compliance with EMC standards, minimizing interference with other sensitive equipment. The 1.1kW (low overload) or 0.75kW (high overload) power rating is suitable for small to medium-sized pumps/fans.

Variable Speed PumpHVACFan ControlEnergy OptimizationV/f ControlEMC Filter3-phase400V

3. Packaging Machinery Motor Synchronization

Synchronizing multiple motors in packaging lines for tasks like filling, sealing, and labeling, ensuring smooth and precise operation.

Problem Solved

The drive's ability to provide precise motor control and communication via USS/MODBUS RTU enables synchronization of different machine sections, improving product quality and throughput. The compact size (173x73x155mm) allows for integration into space-constrained packaging machines. Digital and analog I/O allow for integration with sensors and actuators for feedback and control.

Motor SynchronizationPackaging LineVariable Speed DriveMODBUS RTUDigital Input/OutputCompact Design3-phase400V
