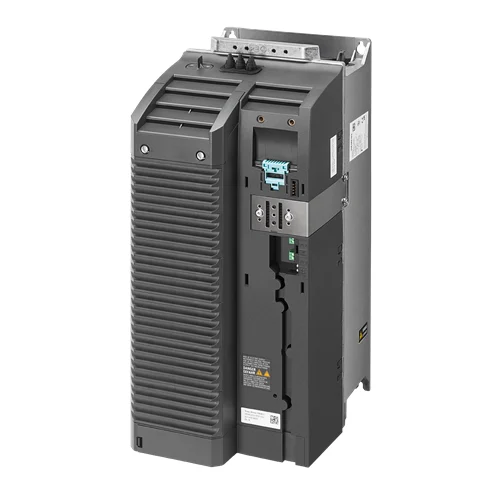

Name: Siemens SINAMICS G120 Power Module PM240-2, 18.5kW - INOSAKI
SKU: Siemens-6SL3210-1PC26-8UL0
Price: 1801.96 USD
Availability: InStock

Technical Overview

Unfiltered SINAMICS G120 Power Module PM240-2 with integrated braking chopper, 3-phase 200-240V input, 18.5kW (LO) output, IP20, 97% efficiency.

Key Features

High overload capability for heavy-duty applications (200% for 3s / 150% for 57s in HO).
Modular and scalable drive design, integrating seamlessly into SINAMICS G120 systems.
Features integrated safety and protection functions for reliable operation.
High energy efficiency of 97% reducing operational costs.
Wide operating temperature range from -20 °C to +50 °C for diverse industrial environments.
Equipped with screw-type terminals for secure and straightforward power connections.
Compliance with international standards including CE, UL, cUL, C-Tick (RCM), and SEMI F47.

Technical Specification Matrix

Parameter	Value
Input Voltage	3AC 200-240 V ±10%
Line Frequency	47-63 Hz
Rated Output Power (Low Overload - LO)	18.5 kW / 25 hp
Rated Output Power (High Overload - HO)	15.0 kW / 20 hp
Rated Output Current (LO)	68.00 A
Rated Output Current (HO)	54.00 A
Max. Output Current	108.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Overload Capability (LO)	110% for 57s, 150% for 3s (cycle time 300s)
Overload Capability (HO)	150% for 57s, 200% for 3s (cycle time 300s)
Power Factor λ	0.95
Efficiency η	0.97
Sound Pressure Level (1m)	72 dB
Power Loss	0.82 kW
Cooling	Internal air cooling
Cooling Air Requirement	0.055 m³/s
Installation Altitude	1,000 m
Ambient Temperature (Operation LO)	-20 to +40 °C
Ambient Temperature (Operation HO)	-20 to +50 °C
Ambient Temperature (Transport/Storage)	-25 to +55 °C
Relative Humidity (Max. operation)	95 % RH, non-condensing
Connections (Line side)	Screw-type terminal
Conductor Cross-section	10.00 - 35.00 mm² (AWG 8)
Degree of Protection	IP20 / UL open type
Brake Chopper	Integrated
Certifications	CE, UL, cUL, C-Tick (RCM), SEMI F47
Physical Weight (kg)	18.3
Dimensions L x W x H (cm)	23.7 x 20 x 47.2

Industrial Applications

1. Precision Conveyor Belt Control

The Siemens 6SL3210-1PC26-8UL0 power module is ideal for precisely controlling motors in industrial conveyor belt systems. Its 18.5 kW output can drive mid-to-large conveyors, while the integrated braking chopper ensures rapid, controlled deceleration and stopping, critical for accurate product positioning and emergency safety protocols. The 3-phase 200-240V input is well-suited for typical factory power grids.

Problem Solved

Ensures accurate and dynamic speed control for conveyor belts, allowing for smooth acceleration/deceleration, energy recovery during braking, and precise positioning, thus improving production efficiency and safety.

Variable speed driveMotor controlConveyor systemsBraking chopperDynamic brakingMaterial handling3-phase200-240V

2. Energy-Efficient Industrial Pump Regulation

This power module is perfectly suited for regulating industrial pumps in water treatment or chemical processing plants. With an 18.5 kW output and 3-phase 200-240V input, it provides precise flow and pressure control. The 97% efficiency minimizes energy consumption in continuously running operations, while the IP20 rating allows for secure installation within protective electrical enclosures.

Problem Solved

Provides efficient and precise control over pump speed and flow, optimizing energy consumption, reducing wear on mechanical components by avoiding sudden starts/stops, and maintaining desired process parameters (e.g., fluid levels, pressure) in water treatment.

Variable frequency drive (VFD)Pump controlFlow regulationEnergy efficiencyIP203-phase200-240VWater treatment

3. Optimized HVAC Fan and Blower Systems

For large commercial or industrial HVAC systems, the 6SL3210-1PC26-8UL0 effectively drives powerful fans and blowers up to 18.5 kW. Its variable speed control capabilities allow for demand-controlled ventilation, significantly improving energy efficiency. The wide operating temperature range (-20 to +50 °C) ensures reliable performance in diverse plant or building environments, and the high overload capacity manages demanding startup conditions.

Problem Solved

Enables demand-controlled ventilation, leading to significant energy savings by adjusting fan speed precisely. Reduces mechanical stress during motor startup and provides robust operation in typical industrial ambient temperatures.

HVACFan controlBlower systemsVariable Air Volume (VAV)Energy optimizationDemand control3-phase200-240V
