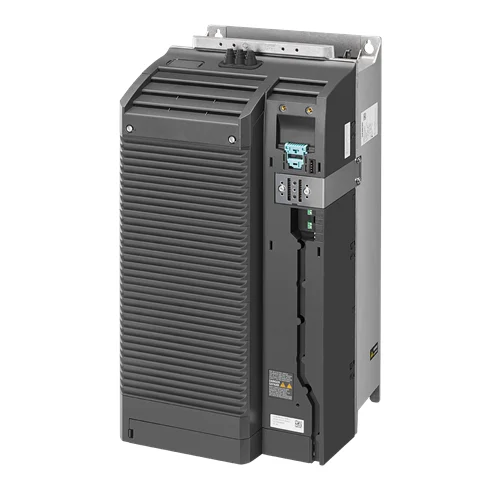

Name: Siemens SINAMICS G120 PM240-2 Power Module, 22kW - INOSAKI
SKU: Siemens-6SL3210-1PC28-0UL0
Price: 2071.25 USD
Availability: InStock

Technical Overview

Modular 3AC 200-240V, 22kW/18.5kW power module with integrated braking chopper, IP20. Provides efficient, dynamic control for industrial motors.

Key Features

Part of the modular SINAMICS G120 converter system.
IP20 degree of protection for installation within control cabinets.
Suitable for high-power industrial tasks with flexible modular design.
Supports Low Overload (LO) and High Overload (HO) operations.
Internal air cooling for thermal management.
Robust design ensures compliance with EMC guidelines.
Safety Integrated features available when combined with appropriate Control Units.

Technical Specification Matrix

Parameter	Value
Series	SINAMICS G120
Model Type	PM240-2
Input Phases	3 AC
Line Voltage	200-240 V ±10%
Line Frequency	47-63 Hz
Rated Power (Low Overload, LO)	22.00 kW / 30.00 hp
Rated Current (Input, LO)	76.00 A
Rated Current (Output, LO)	80.00 A
Rated Power (High Overload, HO)	18.50 kW / 25.00 hp
Rated Current (Input, HO)	71.00 A
Rated Current (Output, HO)	68.00 A
Max. Output Current	136.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0-200 Hz
Output Frequency (V/f Control)	0-550 Hz
Protection Rating	IP20
Cooling	Internal air cooling
Efficiency η	0.98 (98%)
Power Factor λ	0.95
Offset Factor cos φ	0.99
Operating Temperature (LO)	-20 to +40 °C (-4 to 104 °F)
Operating Temperature (HO)	-20 to +50 °C (-4 to 122 °F)
Certifications	CE, UL, cUL, C-Tick (RCM), SEMI F47
Physical Weight (kg)	26.81
Dimensions L x W x H (cm)	59.5 x 40 x 35

Industrial Applications

1. High-Speed Conveyor Systems with Dynamic Stopping

This power module is ideally suited for controlling motors in high-speed conveyor systems that require frequent and precise stopping and starting. Its 22kW power output effectively drives robust conveyor motors, while the integrated braking chopper ensures rapid and accurate deceleration, minimizing downtime and improving process efficiency in material handling.

Problem Solved

Provides dynamic motor control with fast, precise braking for conveyor systems experiencing frequent start-stop cycles, enhancing throughput and safety.

22kW power outputIntegrated braking chopperDynamic motor controlFast decelerationMaterial handling

2. Industrial Pump and Fan Control in HVAC/Water Treatment

The Siemens PM240-2 can efficiently manage industrial pumps and fans in HVAC or water treatment plants. Its 3AC 200-240V input and up to 22kW output, combined with variable frequency control (0-550 Hz), allow for optimizing fluid flow rates or air circulation. This leads to significant energy savings and precise environmental control, crucial for maintaining optimal operational conditions.

Problem Solved

Enables efficient and precise speed control of pumps and fans, leading to energy conservation and optimized flow/pressure regulation in critical infrastructure.

3AC 200-240V22kW powerVariable frequency control (0-550 Hz)Energy efficiency (98%)Process control

3. Textile Manufacturing Machinery with Intermittent Loads

Textile machinery often encounters rapid and significant load variations during operation. This power module's high overload capability (e.g., 200% for 3 seconds) allows it to absorb sudden torque demands without interruption. Coupled with precise motor control from the SINAMICS G120 system, it ensures stable and consistent performance for weaving, spinning, or finishing processes, even under dynamic conditions.

Problem Solved

Manages dynamic and intermittent load changes in textile machinery, ensuring stable and continuous operation, preventing production halts due to overload conditions.

High overload capability (200% for 3s)Dynamic load managementTextile machineryStable performanceMotor control
