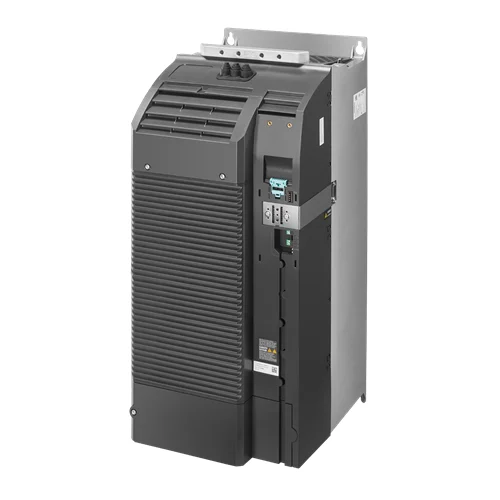

Name: Siemens SINAMICS G120 PM240-2 55kW VFD Power Module - INOSAKI
SKU: Siemens-6SL3210-1PC31-8UL0
Price: 4447.84 USD
Availability: InStock

Technical Overview

55kW Siemens SINAMICS G120 PM240-2 VFD power module for 200-240V 3AC systems with integrated braking chopper, IP20 protection, and high overload capacity.

Key Features

3-phase AC input (200-240V ±10%) and output
Integrated braking chopper for efficient deceleration
High and Low Overload capabilities for versatile application demands
IP20 degree of protection for industrial environments
Internal air cooling system
Compatible with SINAMICS G120 Control Units
Optimized for motor control applications from 0 Hz to 550 Hz (V/f control)
Robust construction with FSF frame size
Motor overload protection compliant with UL61800-5-1
High efficiency (η=0.97) and power factor (λ=0.95)

Technical Specification Matrix

Parameter	Value
Input Line Voltage	3 AC 200 ... 240 V ±10 %
Input Line Frequency	47 ... 63 Hz
Rated Input Current (Low Overload)	172.00 A
Rated Input Current (High Overload)	164.00 A
Output Number of Phases	3 AC
Output Rated Voltage	230V IEC / 240V NEC
Rated Power (Low Overload)	55.00 kW (60.00 hp)
Rated Power (High Overload)	45.00 kW (60.00 hp)
Rated Output Current (Low Overload)	178.00 A
Rated Output Current (High Overload)	154.00 A
Max. Output Current	308.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0 ... 200 Hz
Output Frequency (V/f Control)	0 ... 550 Hz
Overload Capability (LO)	1.1 x rated output current for 57 s (110% overload), 1.5 x rated output current for 3 s (150% overload) with a cycle time of 300 s
Overload Capability (HO)	1.5 x output current rating for 57 s (150% overload), 2 x output current rating for 3 s (200% overload) with a cycle time of 300 s
Power Factor λ	0.95
Offset Factor cos φ	0.99
Efficiency η	0.97
Sound Pressure Level (1m)	68 dB
Power Loss	2.09 kW
Cooling Method	Internal air cooling
Cooling Air Requirement	0.153 m³/s (5.403 ft³/s)
Installation Altitude	1,000 m (3,280.84 ft)
Ambient Temperature (Operation LO)	-20 ... 40 °C (-4 ... 104 °F)
Ambient Temperature (Operation HO)	-20 ... 50 °C (-4 ... 122 °F)
Ambient Temperature (Transport/Storage)	-25 ... 55 °C (-13 ... 131 °F)
Relative Humidity (Max. operation)	95 % RH, condensation not permitted
Line Side Connections	M10 bolt
Conductor Cross-Section (Line Side)	35.00 ... 120.00 mm² (AWG 2 ... AWG -3)
Degree of Protection	IP20 according to EN60529 (IEC) / open type (UL)
Frame Size	FSF
Physical Weight (kg)	58
Dimensions L x W x H (cm)	74.5 x 46.9 x 38.5

Industrial Applications

1. High-Speed Conveyor Systems with Dynamic Braking

This power module is ideal for controlling large conveyor systems in manufacturing or logistics, especially those requiring frequent and precise starts/stops and handling heavy loads. The 55kW power rating supports substantial material movement.

Problem Solved

The integrated braking chopper efficiently dissipates regenerative energy generated during rapid deceleration, enabling quick, precise stops and preventing damage to the drive. The high overload capability (up to 200% for 3 seconds) ensures reliable startup and operation under peak load conditions.

Variable Frequency DriveRegenerative BrakingHigh OverloadMaterial HandlingDynamic LoadsMotor Control

2. Variable Speed Pump Control for Industrial Utilities

The module can precisely regulate the speed of large pumps in industrial water treatment facilities, HVAC systems, or other fluid transfer applications, optimizing energy usage and flow rates.

Problem Solved

Variable frequency control (up to 550 Hz V/f control) allows for accurate flow regulation, significantly reducing energy consumption compared to traditional on/off or throttled systems. The 200-240V input voltage is compatible with many industrial power grids, and the 55kW output handles substantial pumping demands. The IP20 rating makes it suitable for integration within protected electrical cabinets.

Variable Speed PumpFlow ControlEnergy EfficiencyHVACWater TreatmentV/f ControlMotor Speed Regulation

3. Precision Mixer and Agitator Drives in Process Industries

This power module is well-suited for driving large mixers or agitators in chemical, pharmaceutical, or food processing, where consistent product quality relies on precise speed and torque control.

Problem Solved

The vector control capability (up to 200 Hz) provides strong and stable torque, especially at low speeds, which is critical for starting and mixing viscous or high-density materials. The robust 55kW output and high overload capacity allow the drive to manage sudden changes in material viscosity or batch size without compromising performance.

Torque ControlVector ControlViscous MixingProcess ControlFood ProcessingChemical IndustryAgitator
