$ 233.68

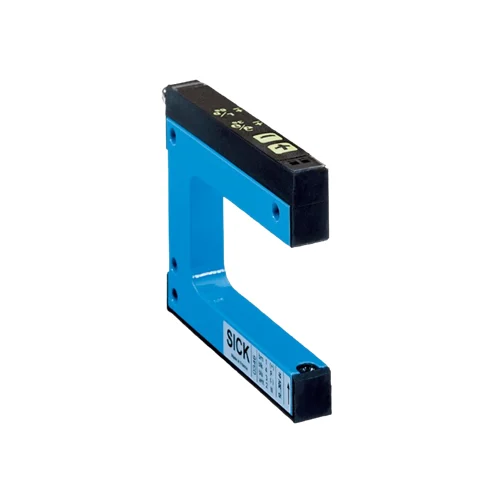

SICK WF30-60B410 infrared fork sensor delivers fast, accurate detection of small and thin objects in compact industrial automation and labeling systems.
The SICK WF30-60B410 fork sensor with infrared optical detection is a compact photoelectric fork sensor engineered for precise presence and label detection in automated equipment. It integrates the emitter and receiver into a single rigid housing, allowing reliable detection across a fixed 30 mm fork gap without alignment effort. Capable of identifying objects down to 0.2 mm, this sensor addresses common challenges in high-speed machinery where accuracy, repeatability, and limited installation space are critical. Its durable aluminum construction and sealed design support consistent operation in demanding industrial environments.
The SICK WF30-60B410 improves operational efficiency by delivering fast and stable detection even when targets move at high speeds. Sensitivity and switching behavior can be adjusted directly on the device, reducing setup time during commissioning or product changeovers. Support for both light and dark switching enables flexible logic integration, while PNP and NPN outputs simplify connection to different control systems. Strong resistance to ambient light and a rapid response profile make this sensor well suited for label detection, thin material monitoring, and precise part sensing where downtime and false triggers must be minimized.
Why SICK WF30-60B410?
The SICK WF30-60B410 stands out because it combines mechanical precision with optical intelligence in a single, space-saving fork design. By eliminating alignment work and delivering microsecond-level response stability, it allows machines to run faster without sacrificing accuracy. Its adjustable sensitivity, robust aluminum housing, and high immunity to ambient light make it a dependable choice for manufacturers who demand consistent detection, reduced setup time, and long-term reliability in continuous production environments.
What problem does it solve?
The WF30-60B410 solves the challenge of detecting very small, thin, or fast-moving objects in tight machine spaces where conventional sensors struggle. It prevents missed detections, false triggers, and frequent readjustments when materials change or speeds increase. By providing precise, repeatable sensing across a fixed fork gap, it ensures stable process control in applications such as labeling, web monitoring, and part counting, directly improving product quality and production uptime.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Photoelectric fork sensor | Ensures precise object detection without alignment between emitter and receiver |
| Detection Principle | Optical, infrared LED | Provides stable sensing of small and thin objects with high reliability |
| Minimum Detectable Object | 0.2 mm | Enables accurate detection of labels, films, and fine materials |
| Fork Width | 30 mm | Ideal for compact machine layouts and narrow web applications |
| Fork Depth | 59 mm | Supports reliable detection across consistent material paths |
| Switching Frequency | Up to 10 kHz | Allows accurate detection in high-speed production lines |
| Response Time | ≤ 100 µs | Minimizes missed detections on fast-moving objects |
| Output Type | PNP / NPN selectable | Simplifies integration with different PLC and control systems |
| Switching Mode | Light / dark switching, selectable | Flexible logic configuration for varied application needs |
| Sensitivity Adjustment | On-device plus/minus buttons | Reduces setup time and simplifies changeovers |
| Supply Voltage | 10 V DC to 30 V DC | Compatible with standard industrial power systems |
| Housing Material | Aluminum | Ensures mechanical stability and long service life |
| Enclosure Rating | IP65 | Reliable operation in dusty or wash-down industrial environments |
| Ambient Light Immunity | Up to 10,000 lux | Prevents false triggering from surrounding light sources |
| Operating Temperature | –20 °C to +60 °C | Suitable for a wide range of industrial conditions |
| Connection Type | M8 male connector, 4-pin | Enables quick and secure electrical connection |
| Certifications | CE, UKCA, cULus, RoHS | Supports global machine compliance requirements |
Download SICK WF30-60B410 (6028439) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084112331 |
| Weight | 71 g |
| Country of Origin | France |
In automatic labeling machines, labels move at very high speeds and separate rapidly from their backing material. The WF30-60B410 is well suited for this task because its fork-shaped design creates a fixed and stable sensing gap, removing alignment uncertainty. Its ability to detect very thin objects allows reliable sensing of label edges, even when materials vary in transparency or thickness. Fast response and high switching performance ensure precise trigger timing for label dispensing, reducing misplacement, wasted labels, and machine stoppages during continuous production.
Printing and converting equipment depends on accurate detection of registration marks to keep cutting, folding, or sealing operations synchronized. The WF30-60B410 supports this requirement by delivering consistent detection at high web speeds where slower sensors struggle. Selectable light or dark switching helps adapt to different ink colors and substrate finishes. Its stable optical path and rapid r
esponse reduce timing variation, improving cut-to-print accuracy, minimizing material waste, and shortening setup time when changing print jobs or formats.
In sheet-fed processes such as paper, film, or laminate handling, overlapping materials can cause jams or incorrect cuts. Installed before a guillotine or rotary cutter, the WF30-60B410 monitors material passing through a defined fork gap and identifies abnormal thickness conditions. Its high detection sensitivity and fast response allow early identification of overlaps without slowing production. By stopping the process or triggering alarms in time, it helps protect cutting tools, prevent scrap, and maintain consistent product quality.
Accurate counting becomes challenging on conveyors where parts move quickly and spacing is inconsistent. The WF30-60B410 functions as a compact counting gate, generating clean and repeatable signals each time a part passes through the fork. Because the emitter and receiver are fixed in one rigid housing, vibration and mechanical movement have minimal impact on detection accuracy. This makes it effective for batching, packaging verification, and ensuring every item is present before downstream processing.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Connector / Field-wireable Plug | STE-0804-G | 6037323 | Enables fast and secure M8 connection using screw terminals, ideal for on-site wiring and maintenance without specialized tools. |
| Sensor / Actuator Cable (M8 to Flying Leads) | YF8U14-050VA3XLEAX (5 m) | 2095889 | Simplifies cabinet wiring with flying leads while maintaining a reliable M8 sensor interface for industrial environments. |
