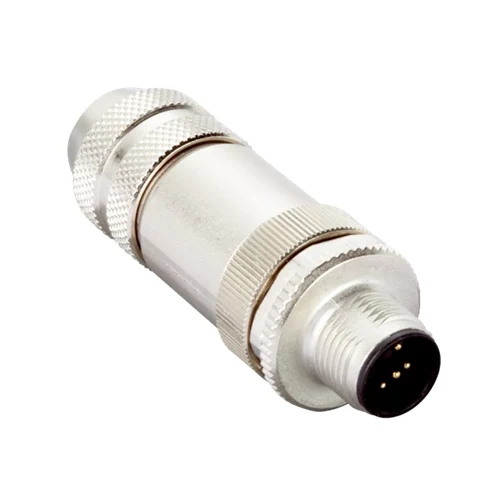

Why SICK STE-1204-GE01?
Because the SICK STE-1204-GE01 turns complex Ethernet wiring into a fast, tool-free experience. Its rugged zinc housing, shielded CAT5e compatibility, and IP67 sealing provide lasting reliability in harsh industrial zones. It’s the connector that blends simplicity with endurance — engineered to keep your automation network running flawlessly day after day.
What Problem Does It Solve?
Unstable network links and time-consuming wiring are common headaches in industrial setups. The STE-1204-GE01 eliminates both by offering quick IDC termination, EMI protection, and watertight construction. It ensures consistent signal integrity, even under vibration, dust, or moisture — solving the challenge of maintaining reliable data communication in demanding automation environments.
Key Features & Specifications – SICK STE-1204-GE01: Article Number 6048151
| Feature | Details | Benefit |
|---|---|---|
| Connector Type | M12 male, 4-pin, D-coded | Provides reliable Ethernet connection for CAT5/CAT5e networks. |
| Connection Method | IDC quick connection with screw locking | Enables fast, tool-free field installation and secure mechanical stability. |
| Locking Material | Die-cast zinc | Offers superior strength and corrosion resistance in harsh environments. |
| Cable Category | CAT5 / CAT5e shielded | Maintains signal integrity and minimizes data loss due to interference. |
| Rated Voltage / Current | ≤ 60 V / ≤ 1.75 A | Suitable for low-voltage data and communication applications. |
| Signal Type | Ethernet | Supports high-speed data transfer for industrial automation networks. |
| Protection Class | IP67 | Dust-tight and water-resistant for outdoor and wash-down conditions. |
| Temperature Range | –40 °C … +85 °C | Performs reliably in extreme hot or cold industrial environments. |
| Permitted Wire Cross-Section | 0.14 mm² … 0.34 mm² | Compatible with various cable gauges for flexible installation. |
| Shielding Type | Full 360° shielded connection | Ensures electromagnetic compatibility and stable data transmission. |
| Standards / Compliance | CE, UKCA, China-RoHS | Meets global industrial safety and environmental standards. |
| Product Category | Field-Wireable Connector | Ideal for decentralized field device wiring and Ethernet machine networks. |
| Enclosure Design | Straight connector head | Simplifies cable routing in compact installation spaces. |
Download SICK STE-1204-GE01 (6048151) Datasheet
Commercial Information – SICK STE-1204-GE01: Article Number 6048151
| Commercial Data | Details |
|---|---|
| Weight | 41 g |
| Country of Origin | Germany |
The Applications
1. Building Reliable Ethernet Networks in Factory Automation
In modern production systems, every machine depends on stable data flow between controllers and sensors. The SICK STE-1204-GE01 ensures this connection stays solid even in noisy or vibrating environments. Its shielded CAT5e design maintains Ethernet performance, while the IP67 protection guards against oil, dust, and humidity. Engineers can easily install it near the machine’s communication hub using the quick screw and IDC terminals, reducing setup time and cabling complexity. This allows the network to stay secure and consistent, improving response time and minimizing downtime in automated production lines.
2. Durable Ethernet Interface for Robotic Work Cells
Robotic welding and machining stations face heat, vibration, and metal debris that can damage ordinary connectors. The STE-1204-GE01 provides a rugged solution, combining a die-cast zinc housing with a vibration-proof locking mechanism. Its compact, shielded M12 interface resists electromagnetic interference and mechanical shock, ensuring clean signal transfer between robot arms, sensors, and control units. Maintenance crews benefit from its fast field wiring design, allowing easy connector replacement without special tools. This reliability keeps robotic systems running smoothly with minimal signal errors or rework delays.
3. Stable Data Links for AGVs and Mobile Robots
Autonomous mobile platforms rely on uninterrupted Ethernet communication for navigation and safety controls. The STE-1204-GE01 connector withstands constant movement, vibration, and temperature variation typically found in factory logistics. Its secure locking prevents disconnection during vehicle operation, and the full-shielded construction protects against interference from nearby drives. Compact and lightweight, it fits easily into tight control compartments, reducing mechanical strain on cables. By providing consistent data transfer, it helps AGVs maintain accurate routing, sensor feedback, and collision-avoidance performance across demanding work environments.
4. Reliable Ethernet Connectivity for Distributed I/O Systems
In large industrial setups, distributing I/O modules close to machines reduces wiring length and simplifies maintenance. The STE-1204-GE01 offers a quick and robust Ethernet link between these remote devices and the main PLC. With its IP67-rated enclosure and wide operating temperature range, it performs dependably in wash-down, outdoor, or high-moisture areas. The shielded data path eliminates signal distortion, ensuring consistent communication over extended distances. This connector helps engineers design modular control systems that are easier to expand, monitor, and maintain — improving network reliability and operational efficiency.
