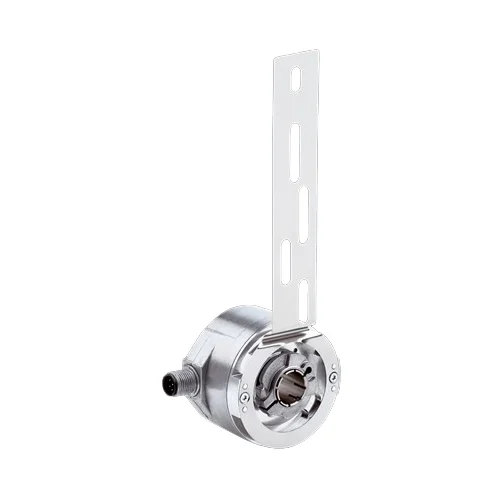

SICK SFS60-HNBT2K02 High-Precision HIPERFACE Motor Feedback System
The SICK SFS60-HNBT2K02 Motor Feedback System is a compact, high-accuracy encoder engineered for demanding motion control tasks. Designed with HIPERFACE communication technology, it provides precise position feedback for servo motors and automation systems, ensuring smooth and synchronized operation. With a rugged build and through hollow shaft design, it simplifies mechanical integration while maintaining exceptional reliability at speeds up to 9,000 rpm. Capable of enduring wide temperature ranges from –40 °C to +115 °C, it delivers dependable performance in harsh industrial environments such as robotics, packaging, and CNC machinery.
The SFS60-HNBT2K02 enhances machine precision and long-term stability through its 1,024 sine/cosine periods per revolution and 32,768 interpolation steps, enabling fine angular resolution and smooth motion control. Its HIPERFACE interface ensures stable digital data exchange between the motor and controller, improving overall system responsiveness. Constructed from stainless steel and aluminum die-cast materials, the encoder resists vibration, shock, and dust ingress under IP65 protection. Its efficient design reduces installation time, lowers maintenance needs, and enhances motor efficiency—ideal for advanced factory automation, servo applications, and high-speed machinery requiring exact positioning feedback.
Why SICK SFS60-HNBT2K02?
Because precision matters. The SICK SFS60-HNBT2K02 delivers ultra-accurate motion feedback even in the harshest conditions. Its HIPERFACE® interface, solid aluminum housing, and through hollow shaft design make it a favorite among automation engineers seeking smooth, synchronized control and long-term stability in high-performance servo applications.
What problem does it solve?
It eliminates inconsistent motor feedback that causes positioning errors, vibration, and downtime. By offering precise angle detection and reliable signal transmission, the SFS60-HNBT2K02 ensures every motor movement is exact—solving control instability in robotics, CNC systems, and automated production lines where accuracy defines productivity.
Key Features & Specifications – SICK SFS60-HNBT2K02 (Article No. 1054384)
| Feature | Details | Benefit |
|---|---|---|
| Interface Type | HIPERFACE | Provides digital communication with high signal integrity for smooth control feedback. |
| Resolution | 1,024 sine/cosine periods per revolution (32,768 steps) | Delivers ultra-fine angular accuracy and precise motor positioning. |
| Supply Voltage | 7–12 V DC (recommended 8 V DC) | Offers stable operation in various control system voltages. |
| Current Consumption | <80 mA (without load) | Reduces power usage for energy-efficient performance. |
| Shaft Type | Through hollow shaft, 1/2″ stainless steel | Simplifies mechanical integration and allows direct motor shaft coupling. |
| Housing Material | Aluminum die-cast | Provides lightweight strength and excellent heat dissipation. |
| Flange Type | Stator coupling (BEF-DS02DFS/VFS) | Ensures secure mounting and vibration resistance. |
| System Accuracy | ±52″ | Guarantees high-precision positioning even at high speeds. |
| Operating Speed | ≤9,000 min⁻¹ | Supports fast-moving servo systems without signal loss. |
| Operating Temperature Range | –40 °C to +115 °C | Suitable for extreme industrial and outdoor environments. |
| Enclosure Rating | IP65 (with mating connector) | Protects against dust and water for reliable long-term use. |
| Material Composition | Stainless steel shaft, aluminum housing | Offers superior durability and corrosion resistance. |
| Vibration / Shock Resistance | 20 g vibration, 100 g shock | Withstands harsh mechanical stress during high-speed operation. |
| Data Storage | 1,792 Byte available memory area | Allows customized encoder settings and diagnostics data retention. |
| Certifications | CE, UKCA, China-RoHS, ACMA | Meets global compliance standards for safe integration. |
| Weight | ≤0.25 kg | Lightweight design reduces system load and simplifies installation. |
| Mean Time to Dangerous Failure (MTTFD) | 230 years | Provides long service life and minimal maintenance requirements. |
Download SICK SFS60-HNBT2K02 (1054384) Datasheet
Commercial Information – SICK SFS60-HNBT2K02 (Article No. 1054384)
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084280535 |
| Weight | 0.385 kg |
| Country of Origin | Germany |
The Applications of SICK SFS60-HNBT2K02
1. Precision Control in Robotic Arms
In advanced robotic systems, maintaining accurate joint positioning is essential for smooth, coordinated movement. The SFS60-HNBT2K02 provides ultra-fine angular resolution and fast HIPERFACE® feedback that allows each axis to stay perfectly synchronized. Its ability to resist vibration and temperature fluctuations ensures stable performance during repetitive and high-speed motions, helping robots achieve consistent accuracy in assembly, welding, or material handling environments.
2. CNC Machine Spindle Position Feedback
CNC milling and grinding machines rely on exact spindle control to achieve precise cutting results. The encoder’s 1,024 sine/cosine periods per revolution deliver reliable position feedback even at speeds reaching 9,000 rpm. Its rugged housing resists shock and oil mist, keeping data integrity intact under heavy machining conditions. This improves tool path precision, reduces rework, and ensures smooth surface finishes on complex workpieces.
3. High-Speed Packaging and Sorting Systems
In packaging lines where rapid and repeatable movement is critical, the SFS60-HNBT2K02 helps coordinate conveyor speeds, labeling arms, and pick-and-place heads. The HIPERFACE® digital interface provides instant feedback to control units, preventing timing delays and product misalignment. With its lightweight, compact build and long service life, the encoder supports continuous, maintenance-free operation in demanding industrial production environments.
4. Optical Inspection and Measurement Equipment
Rotary inspection platforms depend on precise angular positioning to capture accurate visual data. The encoder’s absolute position detection allows systems to resume measurement without recalibration after power interruptions. Its high accuracy minimizes rotational error, ensuring consistent image alignment during high-resolution scanning or laser profiling tasks. This results in better measurement repeatability and improved inspection throughput in quality-critical applications.
Related Products & Accessories – Compatible with SICK SFS60-HNBT2K02 (Article No. 1054384)
| Category | Model / Type | Part Number | Compatibility / Benefit |
|---|---|---|---|
| Programming Device | PGT-11-S LAN | 1057324 | Enables parameter configuration, diagnostics, and firmware updates for SFS60 series encoders. |
| Stator Coupling (Standard) | BEF-DS01DFS/VFS | 2047428 | Provides secure mechanical coupling for compact motor integration. |
| Stator Coupling (Extended) | BEF-DS02DFS/VFS | 2047430 | Matches SFS60-HNBT2K02 mounting dimensions; ensures vibration-free connection. |
| Stator Coupling (Large Radius) | BEF-DS03DFS/VFS | 2047431 | Ideal for larger motor housings or extended mounting requirements. |
| Compact Stator Coupling | BEF-DS05XFX | 2057423 | Suitable for tight installation spaces or lightweight motor assemblies. |
| Stator Coupling (Wide Circle) | BEF-DS07XFX | 2059368 | Designed for wide-frame motors and ensures stable mechanical fixation. |
