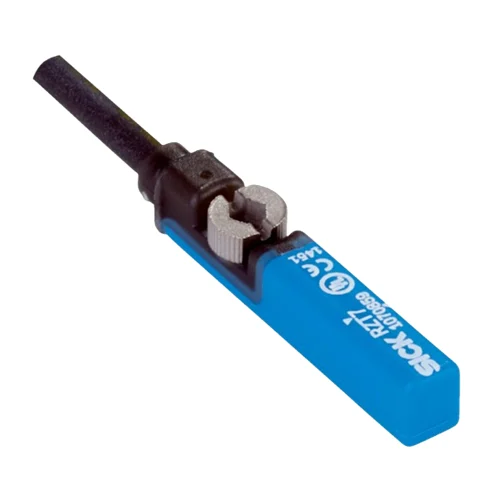

Why SICK RZT7-03ZVO-KW0?
The SICK RZT7-03ZVO-KW0 is chosen when machine builders and maintenance teams need absolute confidence in pneumatic cylinder position feedback. Its reed-based sensing principle delivers stable, repeatable switching without software setup, calibration, or ongoing adjustment. The wide AC/DC voltage range simplifies electrical design across global installations, while the slim housing fits neatly into compact machinery. Designed for long service life, it performs reliably in environments with vibration, temperature fluctuation, and continuous cycling, making it a practical, low-risk choice for industrial automation systems.
What problem does it solve?
The SICK RZT7-03ZVO-KW0 solves the persistent issue of unreliable or inconsistent cylinder position detection that leads to machine errors, downtime, and reduced productivity. In many pneumatic systems, poor sensing can cause missed strokes, incorrect sequencing, or unexpected stops. This sensor provides clear, dependable switching at the exact piston position, even under harsh operating conditions. By delivering stable signals without complex configuration, it helps ensure accurate motion control, smoother machine cycles, and greater operational consistency in automated equipment.
Key Features & Specifications – SICK RZT7-03ZVO-KW0: Part Number 1070866
| Feature | Details | Benefit |
|---|---|---|
| Cylinder Slot Type | T-slot | Easy integration with widely used pneumatic cylinders |
| Compatible Cylinder Designs | Profile, tie-rod, round body, dovetail groove, SMC CDQ2/ECDQ2 | High flexibility across different machine designs |
| Switching Output | Reed contact | Reliable mechanical switching without electronic drift |
| Output Function | Normally Closed (NC) | Fail-safe signal behavior for critical automation processes |
| Electrical Wiring | AC/DC, 2-wire | Simplified wiring and reduced installation time |
| Supply Voltage Range | 5 V AC/DC to 120 V AC/DC | One sensor suitable for multiple global power standards |
| Switching Frequency | Up to 400 Hz | Accurate detection even in fast-moving pneumatic systems |
| Response Sensitivity | Typical 3 mT | Precise piston position detection with high repeatability |
| Housing Length | 32.5 mm | Compact design ideal for space-constrained equipment |
| Overrun Distance | Typical 10 mm | Stable switching window for consistent signal output |
| Enclosure Rating | IP65 / IP67 | Reliable operation in dusty, humid, or washdown environments |
| Operating Temperature | −30 °C to +70 °C | Suitable for cold storage, outdoor, and high-temperature zones |
| Shock & Vibration Resistance | 30 g shock, industrial vibration rated | Maintains accuracy under mechanical stress |
| Connection Type | Fixed cable, 2 m, stripped ends | Robust connection with minimal signal loss |
| Housing Material | High-strength industrial plastic | Lightweight yet durable for long-term use |
| Protection Class | Class II | Enhanced electrical safety for operators and equipment |
| Certifications | CE, UKCA, CCC, RoHS compliant | Meets international regulatory and safety standards |
Download SICK RZT7-03ZVO-KW0 (1070866) Datasheet
