€ 37.80
Discover the SICK MZT8-28VPS-KP0 magnetic cylinder sensor for precise piston detection, fast response, and reliable operation in harsh industrial environments.

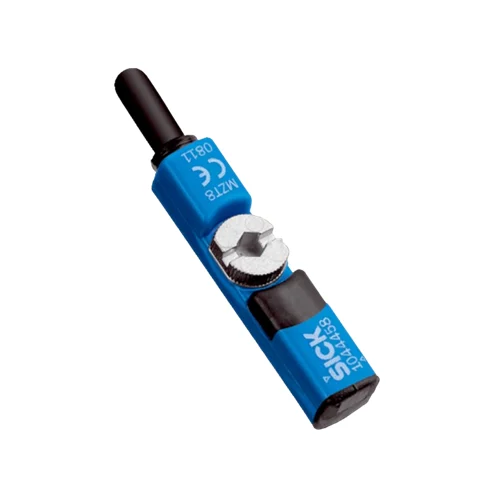

The SICK MZT8-28VPS-KP0 Cylinder Sensor is a high-precision magnetic sensor created for accurate piston detection in T-slot pneumatic cylinders. Its durable and compact 24 mm housing provides stable performance even in harsh factory environments. Operating on a 10–30 V DC supply, it delivers reliable switching up to 1 kHz and resists vibration, moisture, and dust with an IP68-rated enclosure. Designed for easy integration, it connects via a 3-pin M8 connector and offers quick installation on a variety of cylinder types, ensuring long-term operational reliability in modern automation systems.
Built for demanding industrial applications, the MZT8-28VPS-KP0 combines speed, robustness, and efficiency. Its strong magnetic sensitivity enables consistent piston detection even under fluctuating temperatures or fast motion. The sensor’s LED indicator simplifies setup, while internal protection against polarity errors and short circuits reduces maintenance downtime. Withstanding millions of bending and torsion cycles, it performs reliably in packaging, robotics, and assembly processes where continuous feedback is essential. This SICK sensor ensures precise signal output, improving process stability and equipment lifespan in automated production lines.
Why SICK MZT8-28VPS-KP0?
Because it combines German precision, compact design, and industrial durability, the SICK MZT8-28VPS-KP0 ensures accurate piston detection even in the toughest automation environments. Its IP68-rated housing, ultra-fast 1 kHz response, and long service life make it the trusted choice for engineers who demand reliability without compromising performance or installation simplicity.
What problem does it solve?
It eliminates inconsistent piston sensing and downtime caused by vibration, dirt, or moisture in pneumatic systems. The MZT8-28VPS-KP0 delivers precise, repeatable detection across diverse cylinder types, ensuring machines operate smoothly, safely, and efficiently—minimizing maintenance effort while maximizing productivity in fast-moving industrial processes.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Magnetic cylinder sensor for T-slot cylinders | Provides precise piston position detection in pneumatic systems |
| Switching Output | PNP, Normally Open (NO) | Reliable signal output suitable for most automation control systems |
| Switching Frequency | Up to 1,000 Hz | Enables fast response in high-speed applications |
| Supply Voltage | 10 V DC – 30 V DC | Wide voltage range ensures stable operation with various controllers |
| Enclosure Rating | IP68 | Withstands dust, water, and industrial environments |
| Repeatability | ≤ 0.1 mT | Ensures consistent and accurate switching performance |
| Housing Material | PA12 (Plastic) | Lightweight yet durable design for long-term use |
| Operating Temperature | –30 °C to +80 °C | Reliable performance under extreme temperature variations |
| Connection Type | 3-pin M8 connector with 0.3 m PUR cable | Easy installation and flexible connection for machine integration |
| Cable Durability | Over 2 million drag-chain cycles | Ideal for moving or dynamic machinery applications |
| Reverse Polarity & Short-Circuit Protection | Built-in protection circuits | Prevents sensor damage and downtime |
| LED Status Indicator | Integrated visual indicator | Simplifies setup and status monitoring |
| Response Sensitivity | 2.8 mT typical | Detects piston magnet positions with high precision |
| Overrun Distance | 9 mm typical | Maintains accuracy even with slight positional variations |
| Mounting Type | T-slot and adapter compatibility (Profile, Tie Rod, Round, SMC CDQ2, ECDQ2) | Versatile installation across cylinder types |
| Protection Class | Class III | Safe low-voltage operation for industrial use |
| MTTFD | 2,289 years | Exceptionally long operational reliability |
| Certifications | CE, UKCA, cULus, China-RoHS | Globally compliant for export and industrial standards |
Download SICK MZT8-28VPS-KP0 (1048048) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084257643 |
| Country of Origin | Hungary |
| Weight | 12 g |
In modern packaging machines, pneumatic cylinders perform rapid pushing and sealing motions thousands of times per hour. The SICK MZT8-28VPS-KP0 ensures each movement is detected with exceptional accuracy, thanks to its 1 kHz switching frequency and compact 24 mm design. Its IP68 protection keeps it safe from dust and cleaning sprays, while the LED indicator allows quick setup. This makes it ideal for production lines where precision timing and continuous operation are critical to minimize waste and ensure consistent packaging performance.
Robotic systems often rely on pneumatic clamps to hold components during assembly or welding. The MZT8-28VPS-KP0 provides reliable confirmation of each clamp’s position, ensuring safety and process consistency. Its strong magnetic sensitivity and repeatability help avoid false signals even under vibration or mechanical stress. The sensor’s slim profile fits easily in confined spaces, while its durable cable withstands millions of flex cycles—perfect for automated lines where movement and long operating hours are constant.
In metal-forming and stamping applications, cylinders must reach precise end-positions to maintain quality and prevent tool damage. The MZT8-28VPS-KP0 delivers consistent piston detection in tie-rod cylinders using adapter mounting. Its short overrun distance and high switching reliability enable exact end-stroke confirmation. Built-in protection against polarity errors and voltage surges ensures long-term durability, keeping production stable in harsh press environments where shocks and temperature variations are routine.
Food production lines require sensors that can endure constant washdowns and temperature fluctuations. The MZT8-28VPS-KP0, with its sealed IP68-rated body and corrosion-resistant PA12 housing, detects piston positions in pneumatic diverter cylinders without being affected by moisture. Its fast response and high magnetic precision keep conveyors synchronized, while its resistance to cleaning agents and drag-chain motion ensures reliable long-term operation—perfect for maintaining hygiene and uptime in food-grade manufacturing zones.
| Category | Accessory / Model | Part No. | Description | Benefit |
|---|---|---|---|---|
| Mounting Accessory | BEF-SG-MRZT | 2077201 | Protective adapter made of zinc diecast with mounting hardware | Protects the sensor and simplifies installation on various cylinder profiles |
| Mounting Accessory | BEF-KHZ-PT1 | 2022702 | Mounting bracket for profile or tie-rod cylinders, zinc diecast | Provides secure mounting for standard T-slot applications |
| Mounting Accessory | BEF-KHZ-RT1-25 | 2077682 | Bracket for round body cylinders (Ø 8–25 mm), stainless steel and zinc cast | Enables mounting on small-diameter cylinders with strong hold |
| Mounting Accessory | BEF-KHZ-RT1-63 | 2077683 | Bracket for round body cylinders (Ø 8–63 mm), stainless steel and zinc cast | Ensures stable sensor positioning on large cylinders |
| Mounting Accessory | BEF-KHZ-ST1 | 2022703 | Mounting bracket for cylinders with dovetail slot, aluminum | Allows installation on special slot-style cylinders |
| Mounting Accessory | BEF-KHZ-TT1 / TT2 | 2046439 / 2046440 | Mounting brackets for SMC CDQ2 or ECDQ2 rails, aluminum | Compatible with SMC-type cylinders, expanding use across brands |
| Cable & Connector | YF8U13-020VA1XLEAX | 2095860 | 2 m PVC cable, straight M8 female connector | Standard sensor/actuator cable for general automation |
| Cable & Connector | YF8U13-050VA1XLEAX | 2095884 | 5 m PVC cable, straight M8 female connector | Extended cable for flexible machinery setups |
| Cable & Connector | YF8U13-020UA1XLEAX | 2094782 | 2 m PUR halogen-free cable, straight M8 female connector | Resistant to oil and bending for mobile machine sections |
| Cable & Connector | YG8U13-020UA1XLEAX | 2094794 | 2 m PUR halogen-free cable, angled M8 female connector | Ideal for drag-chain and robotic arm applications |
| Cable & Connector | YG8U13-050UA1XLEAX | 2095586 | 5 m PUR halogen-free cable, angled M8 female connector | Durable cable for long-reach or moving installations |
| Related Sensor Model | MZT8-03VPS-KP0 | 1044458 | Same series, 300 mm cable version | General-purpose model for compact machine layouts |
| Related Sensor Model | MZT8-28VPS-KP0S10 | 1054250 | 1.0 m cable version | Suited for systems requiring longer sensor reach |
| Related Sensor Model | MZT8-19VPS-KP0 | 1053014 | Compact sensor design | Best fit for short-stroke or space-limited cylinders |
| Related Sensor Model | MZT8-03VPS-KPD | 1044461 | 750 mm cable, direct-connection variant | For setups requiring greater wiring flexibility |
