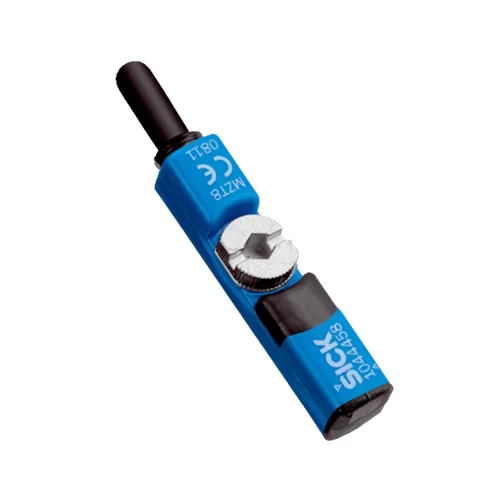

SICK MZT8-03VPO-KRDS14 Magnetic Cylinder Sensor – Precise PNP NC Detection for Pneumatic Systems
The SICK MZT8-03VPO-KRDS14 is a high-performance magnetic cylinder sensor designed to detect piston positions in T-slot cylinders with exceptional accuracy. Compact and robust, it delivers reliable operation even in demanding industrial environments. Featuring a PNP normally closed (NC) output, it supports rapid switching up to 1,000 Hz and ensures secure performance with an IP68 protection rating. Its 24 mm housing and axial cable outlet allow for easy integration in limited spaces, while the visible status LED simplifies setup and maintenance — making it ideal for automation and pneumatic control applications.
Engineered for long-term reliability, the MZT8-03VPO-KRDS14 offers an impressive lifespan and exceptional resistance to mechanical stress. The rugged PA12 housing and PUR cable are designed for millions of flex and torsion cycles, supporting continuous use in motion-intensive systems. A built-in off-delay pulse stretcher ensures precise signal detection during fast movements, minimizing read errors. The sensor’s wide temperature range and built-in electrical protections make it suitable for harsh industrial settings. Users benefit from consistent detection accuracy, low maintenance requirements, and seamless performance in automated assembly, material handling, and packaging machinery.
Why SICK MZT8-03VPO-KRDS14?
Choose the SICK MZT8-03VPO-KRDS14 for its blend of speed, precision, and endurance. This compact sensor detects piston positions flawlessly even in fast-moving pneumatic systems. Built with rugged materials and smart electronics, it delivers consistent, maintenance-free performance—perfect for engineers who value reliability and stability in every automation cycle.
What Problem Does It Solve?
The MZT8-03VPO-KRDS14 eliminates the common issue of inaccurate piston detection and signal loss in harsh environments. Its magnetic sensing technology ensures reliable switching under vibration, dust, and moisture. By providing precise feedback at high speeds, it enhances machine efficiency, prevents downtime, and safeguards process control in demanding industrial setups.
Key Features & Specifications – SICK MZT8-03VPO-KRDS14 (Article Number: 1069393)
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Magnetic cylinder sensor (T-slot) | Ensures accurate piston position detection for pneumatic automation systems. |
| Switching Output | PNP, Normally Closed (NC) | Reliable detection with minimal false triggers, suitable for safety-critical systems. |
| Switching Frequency | 1,000 Hz | Enables precise detection in high-speed cylinder movements. |
| Housing Length | 24 mm | Compact design for easy installation in tight or narrow cylinder slots. |
| Connection Type | M8, 3-pin axial cable (0.5 m, PUR) | Provides flexible and durable connectivity for drag chain applications. |
| Enclosure Rating | IP68 | Withstands dust, water, and harsh environmental conditions for long-term stability. |
| Operating Voltage | 10 V DC to 30 V DC | Compatible with common industrial control systems. |
| Power Consumption | 10 mA (without load) | Energy-efficient operation for continuous system performance. |
| Protection Features | Reverse polarity, short-circuit, and power-up pulse protection | Prevents damage from incorrect wiring and electrical surges. |
| Response Sensitivity | 2.6 mT typical | Provides precise magnetic response for reliable detection of piston movement. |
| Operating Temperature | –30 °C to +80 °C | Performs reliably in cold or high-temperature environments. |
| Material | Housing: PA12 plastic; Cable: PUR | Ensures strong resistance to oils, chemicals, and mechanical stress. |
| Indicator | LED status display | Simplifies setup, diagnostics, and operation monitoring. |
| Service Life (MTTFD) | 2,289 years | Exceptional longevity and reduced maintenance costs. |
| Vibration & Shock Resistance | 30 g, 11 ms / 10–55 Hz, 1 mm | Designed to perform reliably in heavy-duty, vibration-prone machinery. |
| Mounting Type | T-slot or with adapter (round, tie-rod, dovetail cylinders) | Broad compatibility with various cylinder types. |
| Certifications | CE, UKCA, cULus, China-RoHS | Meets global safety and environmental standards. |
Download SICK MZT8-03VPO-KRDS14 (1069393) Datasheet
