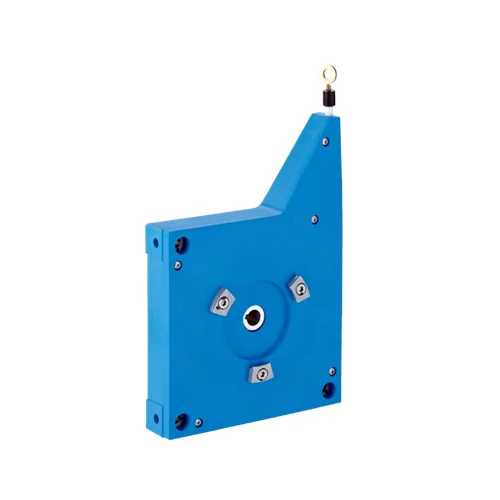

SICK 5322779 MRA-G130-105D3 EcoLine Wire-Draw Mechanism

USD 723.32

EcoLine mechanism for a servo-flange encoder with 6 mm shaft: 0–5 m range, 385 mm wire travel per revolution, Noryl housing; encoder not supplied.

SKU SICK-5322779 Category
SICK EcoLine

SICK MRA-G130-105D3 EcoLine Wire-Draw Mechanism

BrandSICK
Model IdentifierMRA-G130-105D3
Official Part Number5322779

Technical Overview

The SICK MRA-G130-105D3 is an EcoLine wire-draw mechanism for a servo-flange encoder with a 6 mm shaft, supplied without the encoder. It provides a 0–5 m measuring range, 385 mm wire travel per revolution and a spring-return stainless steel wire in a Noryl plastic housing.

EcoLine 0–5 m wire-draw mechanism for a servo-flange encoder with 6 mm shaft, supplied without encoder; 385 mm wire travel per revolution.

Key Features

  • Mechanical accessory for a servo-flange encoder with a 6 mm shaft
  • Encoder not included; system resolution depends on the selected encoder
  • 0–5 m measuring range; actual wire draw length 5.2 m
  • 385 mm of wire pulled out per revolution
  • Reproducibility ≤0.2 mm; linearity ≤±2 mm; hysteresis ≤0.4 mm
  • Highly flexible V4A 1.4401 stainless steel stranded wire; Ø0.55 mm
  • Spring return force 4.5–7 N at +25 °C
  • 3 m/s operating speed; wire acceleration 4 m/s²
  • Noryl plastic housing; mechanical IP50; −30 to +70 °C operation
  • Typical mechanism life 1,000,000 cycles, dependent on application and loading

Convert linear wire travel into rotation for a separately selected compatible encoder, with 385 mm travel per revolution over a 0–5 m measuring range.

Technical Specification Matrix

ParameterValue
Product typeEcoLine wire-draw mechanism accessory
Encoder compatibilityServo-flange encoder with 6 mm shaft
Items suppliedWithout encoder
Measuring range0–5 m
Reproducibility≤0.2 mm
Linearity≤±2 mm
Hysteresis≤0.4 mm
Measuring-wire linear mass1.2 g/m
Measuring-wire materialHighly flexible stranded V4A stainless steel, grade 1.4401
Housing materialNoryl plastic
Wire travel per revolution385 mm
Actual wire draw length5.2 m
Spring return force4.5–7 N, measured at +25 °C; may vary at other temperatures
Measuring-wire diameter0.55 mm
Wire acceleration4 m/s²
Operating speed3 m/s
System resolutionWire travel per revolution divided by encoder steps per revolution; depends on the separately selected encoder
Operating temperature−30 to +70 °C
Mechanical IP ratingIP50
Typical mechanism life1,000,000 cycles; application-dependent average; influenced by load, environment, installation, used measuring range, speed and acceleration
Mounting threads in drawingTwo M6 threads, 12 mm deep, shown for each mounting direction
Physical Weight (kg)0.8
