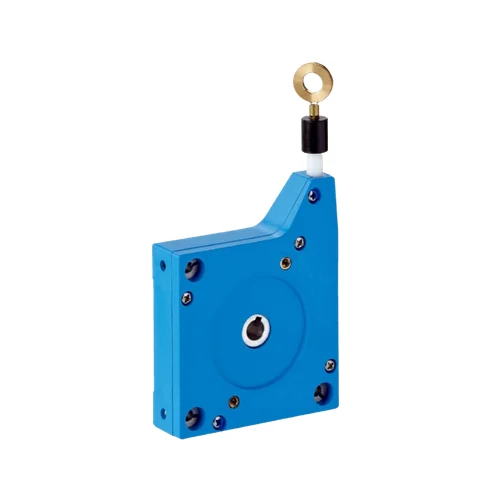

SICK 5324019 MRA-G055-101D4 EcoLine Wire-Draw Mechanism

USD 394.94

EcoLine mechanism for a servo-flange encoder with 6 mm shaft: 0–1.25 m range, 150 mm wire travel per revolution and Noryl housing; encoder not supplied.

SKU SICK-5324019 Category
SICK EcoLine

SICK MRA-G055-101D4 EcoLine Wire-Draw Mechanism

BrandSICK
Model IdentifierMRA-G055-101D4
Official Part Number5324019

Technical Overview

The SICK MRA-G055-101D4 is an EcoLine wire-draw mechanism for a servo-flange encoder with a 6 mm shaft, supplied without the encoder. It converts linear wire travel into rotation over a 0–1.25 m measuring range, using 150 mm travel per revolution and a spring-return sheathed stainless steel wire.

EcoLine 0–1.25 m wire-draw mechanism for a servo-flange encoder with 6 mm shaft, supplied without encoder; 150 mm wire travel per revolution.

Key Features

  • Mechanical accessory for a servo-flange encoder with 6 mm shaft; encoder not included
  • 0–1.25 m measuring range; actual wire draw length 1.45 m
  • 150 mm wire travel per revolution; system resolution depends on the selected encoder
  • Reproducibility ≤0.2 mm; linearity ≤±2 mm; hysteresis ≤0.4 mm
  • Highly flexible 1.4401 V4A stainless steel stranded wire with PA12 sheath; Ø0.45 mm
  • Spring return force 1–1.4 N at +25 °C
  • Operating speed 6 m/s; wire acceleration 10 m/s²
  • Noryl plastic housing; IP50 mechanism; −30 to +70 °C operation
  • Typical mechanism life 1,000,000 cycles, dependent on application and load
  • Two fixing clamps, two DIN912-M3x6 screws and one DIN 6888 2×2.6 Woodruff key supplied

Convert linear wire travel into rotation for a separately selected compatible encoder, with 150 mm travel per revolution over a 0–1.25 m measuring range.

Technical Specification Matrix

ParameterValue
Product typeEcoLine wire-draw mechanism accessory
Encoder compatibilityServo-flange encoder with 6 mm shaft
Items suppliedWithout encoder; two fixing clamps 0061W01-00:21; two DIN912-M3x6 fixing screws; one DIN 6888 2×2.6 Woodruff key
Mounting kitFor servo-flange encoder, Ø60 mm
Measuring range0–1.25 m
Reproducibility≤0.2 mm
Linearity≤±2 mm
Hysteresis≤0.4 mm
Measuring-wire linear mass0.58 g/m
Measuring-wire materialHighly flexible stranded stainless steel 1.4401 V4A with PA12 sheath
Housing materialNoryl plastic
Wire travel per revolution150 mm
Actual wire draw length1.45 m
Spring return force1–1.4 N at +25 °C; may vary at other temperatures
Measuring-wire diameter0.45 mm
Wire acceleration10 m/s²
Operating speed6 m/s
System resolutionWire travel per revolution divided by selected encoder steps per revolution
Operating temperature−30 to +70 °C
Mechanical IP ratingIP50
Typical mechanism life1,000,000 cycles; application-dependent average influenced by load, environment, installation, used range, speed and acceleration
Mounting threadsTwo M3 threads, 6 mm deep, shown for each mounting direction
Compliance listedChina RoHS
Physical Weight (kg)0.08
