$ 72.45

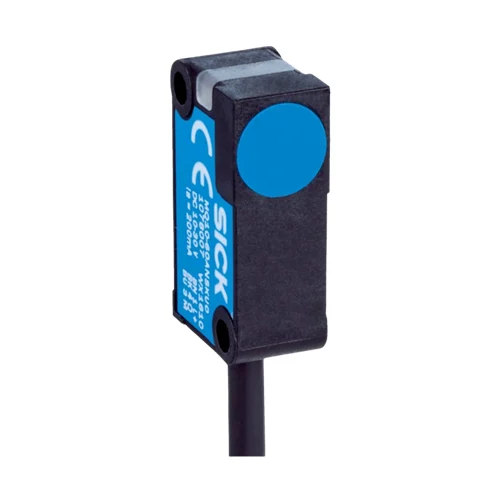

SICK MQ10-60APSKU0 magnetic sensor offers reliable long-range, contactless position detection in compact industrial automation applications.
The SICK MQ10-60APSKU0 magnetic sensor is a compact solution for non-contact position detection in industrial automation systems. It is designed to reliably detect magnetic fields over long distances, making it suitable for applications where mechanical switches would suffer from wear or misalignment. With a sensing range of up to 60 mm and a slim rectangular housing, this sensor fits easily into space-constrained machinery. Its sealed construction supports stable operation in demanding environments, while the fast switching response enables accurate detection of moving components in automated processes.
The SICK MQ10-60APSKU0 magnetic sensor improves machine reliability by eliminating physical contact between sensing elements, which reduces mechanical failure and maintenance needs. The extended sensing distance allows flexible mounting positions, simplifying installation and alignment on cylinders, slides, and actuators. Stable output behavior supports consistent detection even under vibration or temperature changes. Its robust housing helps maintain performance in dusty or humid industrial conditions. In practical applications, this results in smoother machine operation, reduced downtime, and more predictable performance across a wide range of automation and motion control systems.
Why SICK MQ10-60APSKU0?
The SICK MQ10-60APSKU0 stands out for its ability to deliver precise, contactless position detection in a remarkably compact form. Its long sensing distance provides greater installation freedom, while fast response ensures accurate detection of moving machine parts. Built for industrial conditions, it maintains consistent performance where space is limited and reliability is non-negotiable, making it a dependable choice for modern automated equipment.
What problem does it solve?
The SICK MQ10-60APSKU0 solves the challenge of unreliable or short-lived mechanical position sensing. By detecting magnetic fields without physical contact, it eliminates wear, misalignment issues, and frequent maintenance. It ensures stable end-position and presence detection even in harsh environments, helping machines operate smoothly, reduce downtime, and maintain consistent process accuracy over long operating cycles.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Magnetic sensor (MQB series) | Enables contactless position detection without mechanical wear |
| Sensing Range | 0 … 60 mm | Provides flexible installation with wide tolerance for alignment |
| Safe Sensing Range | 48.6 mm | Ensures stable and reliable detection under real operating conditions |
| Magnetic Sensitivity | 1 mT | Allows precise detection of small magnetic fields |
| Switching Output | PNP, Normally Open (NO) | Compatible with standard industrial control systems |
| Switching Frequency | Up to 1,000 Hz | Supports fast-moving automation and high-speed processes |
| Supply Voltage | 10 … 30 V DC | Works reliably across common industrial power supplies |
| Current Consumption | Approx. 5 mA (no load) | Reduces power usage and heat generation |
| Housing Design | Rectangular, compact form | Ideal for space-limited machine designs |
| Housing Material | Plastic (VISTAL®) | Resistant to impact, vibration, and industrial stress |
| Protection Rating | IP67 | Suitable for dusty, humid, and washdown environments |
| Connection Type | 3-wire cable, 2 m length | Simplifies wiring and installation |
| Temperature Range | –25 °C to +75 °C | Reliable operation in cold and hot industrial conditions |
| Protection Functions | Reverse polarity and short-circuit protection | Protects the sensor and control system from wiring faults |
| Shock & Vibration Resistance | Up to 30 g | Maintains accuracy in dynamic machine environments |
| Service Life (MTTFD) | 1,924 years | Supports long-term, maintenance-free operation |
Download SICK MQ10-60APSKU0 (1078006) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084404856 |
| Weight | 50.4 g |
| Country of Origin | Malaysia |
In automated production environments, pneumatic cylinders must repeatedly reach exact end positions to maintain process accuracy and machine safety. The SICK MQ10-60APSKU0 is mounted along the cylinder body to detect the internal piston magnet without mechanical contact. Its extended sensing distance allows reliable detection even through thick cylinder walls or protective covers. Fast switching response supports high cycle rates, while contactless operation removes wear-related failures. This combination ensures consistent feedback to the control system, minimizes unplanned downtime, and supports stable operation in continuous-duty automation systems.
Linear slides and shuttle systems used in assembly and transfer lines require precise and repeatable position feedback. The SICK MQ10-60APSKU0 detects magnets integrated into moving carriages, providing accurate position signals without physical contact. Its slim housing fits into compact machine frames, and the wide sensing range reduces alignment sensitivity during installation. High resistance to vibration ensures signal stability during rapid acceleration and stopping. This improves positioning reliability, shortens commissioning time, and supports smooth, coordinated movement between automated stations.
Packaging machinery depends on precise timing to coordinate sealing, pushing, and indexing movements. The SICK MQ10-60APSKU0 monitors magnetic targets on moving components, maintaining reliable detection despite dust, film debris, or moisture. Its sealed construction supports operation in washdown-prone environments, while fast response ensures accurate synchronization of machine actions. By eliminating mechanical wear points, the sensor reduces maintenance requirements and helps maintain consistent throughput, fewer misfeeds, and higher overall packaging quality in demanding production conditions.
Machine guards and access doors must be monitored continuously to ensure safe operating conditions. The SICK MQ10-60APSKU0 is used to confirm open or closed states by detecting magnets mounted on doors or panels. Contactless sensing prevents degradation from repeated movement, while the long sensing range allows concealed installation for added robustness. Stable performance across temperature variations ensures dependable status signals, helping maintain safety logic reliability and uninterrupted operation in industrial facilities.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Connector | DOS-0803-G | 7902077 | M8 female straight connector for simple and fast field wiring |
| DOS-0803-W | 7902078 | M8 female angled connector ideal for tight mounting conditions | |
| STE-0803-G | 6037322 | M8 male connector for flexible cabling and system integration |
