$ 65.55

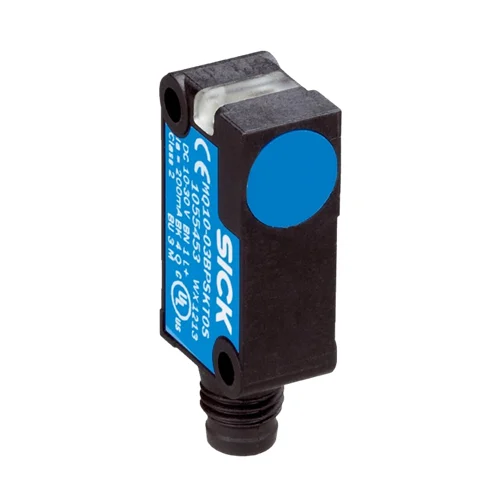

SICK MQ10-60APSKT0 magnetic sensor with 60 mm sensing range, PNP output, IP67 protection for reliable cylinder and position detection in automation.
The SICK MQ10-60APSKT0 magnetic sensor with long sensing range is a compact, non-contact device designed for accurate position detection on pneumatic cylinders and moving machine components. It addresses common challenges such as mechanical wear, misalignment, and unstable switching by detecting magnetic fields at distances of up to 60 mm. Its slim rectangular housing supports installation in tight spaces, while the sealed construction ensures reliable operation in industrial environments. With a PNP normally open output and compatibility with standard DC control systems, this sensor integrates easily into modern automation architectures requiring dependable and repeatable detection.
In practical industrial use, the SICK MQ10-60APSKT0 magnetic sensor helps increase machine availability by removing physical contact between the sensor and the moving target. The extended sensing distance provides greater flexibility when mounting magnets, reducing setup time and minimizing sensitivity to vibration or mechanical tolerances. High switching performance supports fast-moving actuators, while built-in electrical protections safeguard connected controllers. Its robust enclosure withstands dust, moisture, and mechanical stress, making it suitable for long-term operation in packaging equipment, automated assembly stations, and material handling systems where consistent position feedback is critical.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Magnetic sensor (non-contact) | Eliminates mechanical wear, ensuring long service life |
| Sensing Range | 0 … 60 mm | Allows flexible magnet placement and tolerant installation |
| Safe Sensing Range | 48.6 mm | Provides stable and reliable switching margin |
| Magnetic Sensitivity | 1 mT | Ensures accurate detection even with small or embedded magnets |
| Switching Output | PNP, Normally Open (NO) | Easy integration with standard PLC and control systems |
| Switching Frequency | Up to 1,000 Hz | Suitable for fast-moving actuators and high-speed processes |
| Electrical Wiring | DC 3-wire | Simplifies wiring and commissioning |
| Supply Voltage | 10 … 30 V DC | Compatible with common industrial power supplies |
| Current Consumption | Approx. 5 mA (no load) | Low power usage reduces system load |
| Response Time | ≤ 26 ms | Fast availability after power-up |
| Hysteresis | 1 % … 10 % | Prevents signal chatter in vibrating environments |
| Housing Design | Rectangular, compact | Ideal for tight installation spaces |
| Housing Material | Plastic (VISTAL®) | Durable and resistant to industrial stress |
| Enclosure Rating | IP67 | Reliable operation in dusty and humid conditions |
| Shock & Vibration Resistance | 30 g shock, vibration resistant | Maintains performance in dynamic machinery |
| Operating Temperature | –25 °C … +75 °C | Suitable for a wide range of industrial environments |
| Protection Functions | Reverse polarity, short-circuit, power-up pulse | Enhances system safety and reliability |
| Connection Type | M8 connector, 3-pin | Quick, secure, and standardized connection |
| LED Indicator | 270° visible | Easy status monitoring during setup and operation |
| MTTFd | 1,924 years | Supports use in reliability-focused automation designs |
| Compliance | CE, UKCA, China RoHS | Meets global regulatory requirements |
Download SICK MQ10-60APSKT0 (1078008) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084408830 |
| Weight | 11 g |
| Country of Origin | Malaysia |
In high-speed packaging machinery, precise cylinder position detection is essential to maintain timing accuracy and prevent product jams. The MQ10-60APSKT0 magnetic sensor is commonly installed externally along pneumatic cylinders to detect piston movement through the cylinder body without physical contact. Its long sensing distance allows stable detection even when cylinders are mounted behind guards or subject to mechanical tolerances. High switching capability supports rapid cycling, while controlled hysteresis helps avoid false signals caused by vibration. This approach improves operational stability, reduces wear-related failures, and minimizes maintenance interruptions in continuous packaging operations.
Automated assembly systems depend on reliable confirmation that actuators have reached their final positions before proceeding to the next step. The MQ10-60APSKT0 is used to verify these end positions without mechanical interaction, avoiding deformation or drift over time. Its compact form factor allows installation within dense tooling layouts, and the PNP output connects directly to standard control inputs. Built-in electrical protection enhances robustness during commissioning and troubleshooting. This ensures consistent cycle completion and supports quality assurance in repetitive, high-volume assembly environments.
Material handling equipment such as lifters, shuttles, and transfer mechanisms often operates in dusty conditions and under constant vibration. In these systems, the MQ10-60APSKT0 monitors actuator positions to synchronize movements and prevent mechanical conflicts. The sealed housing resists dust and moisture, while vibration tolerance maintains signal stability on moving structures. The extended sensing range allows magnets to be positioned on reinforced or oversized components. This results in dependable position feedback that supports smooth flow of goods and reduces unplanned downtime.
Compact industrial machines frequently present challenges related to limited mounting space and tight mechanical tolerances. The MQ10-60APSKT0 addresses these constraints with its slim rectangular housing and non-contact sensing principle. Minor misalignment or frame movement does not significantly affect detection accuracy, ensuring reliable feedback throughout the machine’s service life. Fast signal response enables precise motion coordination, while low power consumption supports energy-efficient designs. These characteristics make it well suited for compact production cells where reliability and space efficiency are critical.
| Category | Model Name | Part Number | Benefit / Use Case |
|---|---|---|---|
| Sensor/Actuator Cable | YF8U13-020VA1XLEAX | 2095860 | 2 m PVC cable, straight M8 connector; suitable for standard industrial environments |
| YF8U13-050VA1XLEAX | 2095884 | 5 m PVC cable for extended reach installations | |
| YG8U13-020VA1XLEAX | 2096165 | 2 m PVC cable with angled M8 connector for tight mounting spaces | |
| YG8U13-050VA1XLEAX | 2096166 | 5 m angled PVC cable, ideal for flexible routing | |
| YF8U13-020UA1XLEAX | 2094782 | 2 m PUR, halogen-free cable for oil-resistant and drag-chain applications | |
| YF8U13-050UA1XLEAX | 2094788 | 5 m PUR cable for robotic and dynamic motion systems | |
| YG8U13-020UA1XLEAX | 2094794 | 2 m angled PUR cable for compact robotic assemblies | |
| YG8U13-050UA1XLEAX | 2095586 | 5 m angled PUR cable for extended robotic movement | |
| YG8U13-C60UA1XLEAX | 2145889 | 0.6 m PUR cable for short-distance, space-saving installations | |
| YG8U13-030UA1XLEAX | 2145891 | 3 m PUR cable balancing flexibility and reach | |
| YF8U13-C60VA1XLEAX | 2146368 | 0.6 m PVC cable for compact control cabinet wiring |
