$ 279.91
Secure your safety switches with the SICK MB1-BL10 mechanical bolt—durable, precise, and ideal for reliable machine guard locking applications.

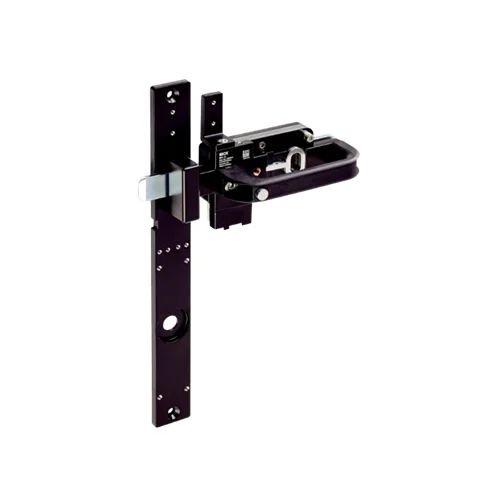

The SICK MB1-BL10 Mechanical Bolt is a durable locking and mounting component designed for i10 Lock, i110 Lock, and TR110 Lock safety switches. Built from zinc-coated steel and coated aluminum, it ensures precise and stable alignment even under continuous industrial operation. With an installation tolerance of 3 mm to 30 mm, it allows flexible setup in various machinery configurations. Supplied as a complete set with adapters, frame plate, and safety screws, the MB1-BL10 is a dependable solution that enhances safety, mechanical stability, and long-term reliability in manufacturing and automation environments.
Developed for demanding safety applications, the MB1-BL10 provides robust locking support and mechanical precision for machine access points. Its catch release button and compliant locking system ensure consistent engagement, helping prevent unintended access or equipment interference. The VISTAL® handle resists impact and wear, maintaining performance over time. Easy to mount and designed for dependable actuator alignment, this mechanical bolt minimizes maintenance efforts and enhances operational safety. Ideal for automated production, packaging, and processing systems where secure machine guarding is essential for efficient, safe operation.
Why SICK MB1-BL10?
Choose the SICK MB1-BL10 for its exceptional blend of strength, precision, and safety. Designed to seamlessly integrate with multiple SICK lock systems, it ensures stable actuator alignment even in high-vibration environments. Its premium materials and easy installation deliver long-term reliability, making it the preferred choice for engineers focused on machine safety and efficiency.
What problem does it solve?
The MB1-BL10 eliminates misalignment and mechanical instability issues common in safety interlocks. It provides a secure, adjustable mounting solution that maintains accurate locking engagement over time. By preventing accidental access, door slippage, and lock wear, it helps manufacturers achieve consistent safety compliance and reduce costly production interruptions.
| Feature | Details | Benefit |
|---|---|---|
| Type | Mechanical Bolt Set with Long Frame Plate | Provides a complete solution for actuator and safety switch integration |
| Compatible Safety Switches | i10 Lock (with iE10-S4 actuator), i110 Lock (with iE15-S1 actuator), TR110 Lock (with TR110-XAS actuator) | Ensures seamless fit with SICK’s leading safety lock systems |
| Installation Tolerance | 3 mm to 30 mm | Allows flexible positioning and easy alignment during installation |
| Material – Bolt Unit | Zinc-coated Steel | Strong corrosion resistance and long-term durability |
| Material – Frame Plate & Base | Coated Aluminum | Lightweight yet robust, reducing mechanical stress |
| Handle Material | VISTAL® | High mechanical strength and impact resistance for frequent operation |
| Locking Mechanism | ANSI-compliant with catch release button | Enhances user safety and operational reliability |
| Included Accessories | Bolt unit, long frame plate, actuator adapters, safety screws, and mounting instructions | Simplifies setup and reduces assembly time |
| Operating Environment | Industrial machinery, packaging, and automation systems | Designed for demanding safety and operational conditions |
| Classification Codes | ECLASS: 27273701 / ETIM: EC002594 / UNSPSC: 31161606 | Supports industry-standard referencing and system integration |
Download SICK MB1-BL10 (1091789) Datasheet
| Commercial Data | SDetails |
|---|---|
| EAN Number | 4047084439117 |
| Weight | 1.463 kg |
| Country of Origin | Malaysia |
In modern packaging systems, operators frequently open machine doors for reel changes or maintenance. The SICK MB1-BL10 ensures each door realigns accurately after closing, thanks to its 3 mm–30 mm installation tolerance. This flexibility prevents actuator stress or switch failure caused by vibration or minor misalignment. Its durable zinc-coated steel body provides long-lasting reliability, helping reduce downtime and keeping production lines running smoothly.
Industrial robots operate with fast, repetitive motion that demands dependable safety mechanisms. The MB1-BL10 provides strong mechanical locking for access panels, ensuring the door remains securely closed while machinery is active. The catch-release button and ANSI-compliant design prevent accidental unlocking during operation. Its rugged construction absorbs repeated movement and vibration, maintaining safe enclosure integrity in multi-shift robotic operations.
CNC machines expose components to metal chips, oils, and vibration. The MB1-BL10 excels in such conditions with its corrosion-resistant materials and sturdy alignment system. By guiding the actuator precisely through the bolt, it minimizes wear and tear on the safety switch. This improves operational safety, extends component life, and keeps precision machinery running without frequent recalibration or replacement.
In food production, safety mechanisms must resist frequent cleaning and exposure to moisture. The MB1-BL10 integrates easily with stainless-steel enclosures, ensuring accurate actuator engagement even after repeated washing. Its smooth aluminum surfaces minimize residue buildup while maintaining lock integrity. This makes it ideal for hygienic production zones where reliability, operator safety, and compliance with sanitary standards are essential.
