$ 34.27

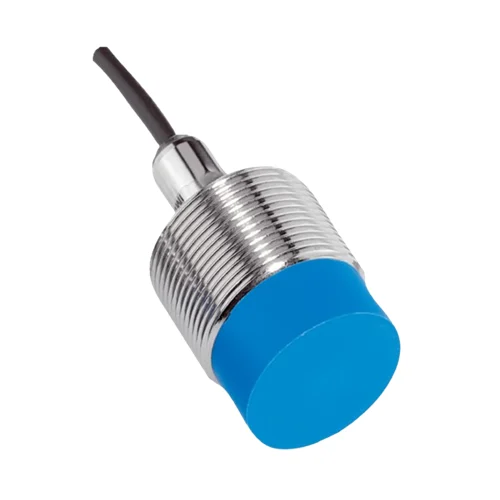

SICK IME30-20NNSZW2K inductive proximity sensor with 20 mm sensing range, M30 housing, NPN output, and IP67 protection for reliable industrial detection.
The SICK IME30-20NNSZW2K inductive proximity sensor is a heavy-duty M30 sensor designed for precise, non-contact detection of metal targets in industrial automation systems. With a 20 mm nominal sensing range and non-flush mounting design, it addresses common challenges such as unreliable detection caused by dust, oil, vibration, or mechanical wear. The compact short-body construction and nickel-plated brass housing enable installation in space-constrained machinery while maintaining high durability. Engineered for consistent performance in harsh environments, this sensor supports stable operation across a wide voltage and temperature range, making it suitable for production lines, material handling equipment, and automated machinery.
The SICK IME30-20NNSZW2K is built to deliver dependable switching performance in continuous-duty industrial applications. Its fast response capability supports accurate detection of moving components, improving cycle time control and process consistency. Integrated electrical protections help safeguard equipment against wiring errors and voltage disturbances, reducing unplanned downtime. The robust IP67-rated housing ensures reliable operation in environments exposed to moisture, dust, or cleaning processes. By combining mechanical strength with stable electrical characteristics, this sensor helps maintenance teams minimize service intervals while giving system integrators a reliable solution for long-term, high-uptime automation systems.
Why SICK IME30-20NNSZW2K?
The SICK IME30-20NNSZW2K stands out for engineers who demand reliability without compromise. Its extended 20 mm sensing range, rugged M30 metal housing, and non-flush design make it ideal for tough industrial environments where space, vibration, and contamination are constant challenges. Designed for long service life and stable switching performance, it delivers consistent detection even under electrical noise and temperature variations, making it a dependable choice for critical automation tasks.
What problem does it solve?
The SICK IME30-20NNSZW2K eliminates unreliable metal detection caused by mechanical wear, misalignment, dust, oil, or moisture. It replaces contact-based sensors and short-range detectors that fail in harsh conditions, ensuring accurate object presence detection without physical contact. By providing stable, repeatable switching at longer distances, it prevents false signals, reduces machine stoppages, and improves overall process efficiency in automated production and material handling systems.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Inductive proximity sensor | Reliable non-contact detection of metal targets |
| Nominal Sensing Range (Sn) | 20 mm | Enables longer detection distance, reducing alignment sensitivity |
| Safe Sensing Range (Sa) | 16.2 mm | Ensures stable and repeatable detection in real-world conditions |
| Housing Size | M30, short-body design | Saves installation space while maintaining mechanical strength |
| Installation Type | Non-flush (non-embeddable) | Maximizes sensing distance for exposed mounting applications |
| Switching Output | NPN, Normally Open (NO) | Compatible with common PLC and control system inputs |
| Switching Frequency | Up to 500 Hz | Supports fast-moving targets and high-speed automation |
| Supply Voltage | 10–30 V DC | Flexible integration with industrial power systems |
| Output Current | ≤ 200 mA | Drives control inputs reliably without external relays |
| Electrical Protection | Short-circuit and power-up pulse protection | Improves system safety and reduces downtime |
| Connection Type | 3-wire cable, 2 m length | Simplifies wiring and installation |
| Enclosure Rating | IP67 | Reliable operation in dusty, wet, or washdown environments |
| Housing Material | Brass, nickel-plated | High resistance to mechanical stress and corrosion |
| Sensing Face Material | Plastic (PA66) | Durable surface optimized for industrial use |
| Operating Temperature | –25 °C to +75 °C | Stable performance in cold and high-temperature environments |
| Shock & Vibration Resistance | 30 g shock, vibration resistant | Maintains accuracy in dynamic machinery |
| Response Time | ≤ 125 ms | Fast availability after power-up |
| Reproducibility | ≤ 2% | Consistent switching point for precise positioning |
| EMC Compliance | EN 60947-5-2 | Reliable operation in electrically noisy environments |
| Certifications | CE, UKCA, cULus, RoHS | Suitable for global industrial installations |
| Expected Service Life (MTTFd) | 1,735 years | Designed for long-term, maintenance-free operation |
Download SICK IME30-20NNSZW2K (1041055) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084291821 |
| Weight | 150 g |
| Country of Origin | Malaysia |
In automated conveyor systems, dependable pallet detection is essential to maintain continuous material flow and prevent process interruptions. The SICK IME30-20NNSZW2K is widely applied to sense metal pallet bases or integrated steel plates as pallets approach transfer or stop positions. Its extended 20 mm sensing range tolerates mechanical variation caused by vibration or long-term wear. The non-flush M30 construction maximizes detection distance, while the IP67-rated housing ensures stable performance in dusty or occasionally wet environments commonly found in logistics and distribution operations.
Accurate end-position detection is critical for pneumatic and hydraulic actuators to operate safely and consistently. This sensor can be mounted to detect metal pistons or actuator targets without physical contact, eliminating mechanical wear. The compact short-body design allows installation in confined machine structures, while the wide DC supply range simplifies control system integration. Electrical protection features enhance reliability during maintenance activities. Consistent switching behavior helps maintain precise motion control in packaging equipment, assembly lines, and industrial automation systems.
Machining centers require reliable confirmation that tools are correctly positioned before operation begins. The IME30-20NNSZW2K is often installed near tool holders or fixtures to verify the presence of metal tools. Its stable sensing characteristics reduce false detection caused by coolant spray, metal chips, or vibration. The durable metal housing withstands harsh machining conditions, while repeatable switching accuracy supports consistent detection over long production cycles, helping prevent tool damage and costly machine downtime.
Automated assembly lines depend on precise counting of metal components to maintain product quality and throughput. This inductive sensor is used to count steel parts moving through feeders, slides, or conveyor tracks. High switching capability enables detection of fast-moving or closely spaced parts without missed signals. Non-contact operation minimizes wear and maintenance requirements, while strong resistance to electrical noise ensures stable counting performance in demanding industrial environments.
| Category | Model | Part Number | Key Benefit / Compatibility |
|---|---|---|---|
| Mounting Bracket | BEF-WN-M30 | 5308445 | Steel bracket for secure side or frame mounting of M30 sensors |
| Mounting Plate | BEF-WG-M30 | 5321871 | Provides stable surface mounting and precise alignment for M30 sensors |
