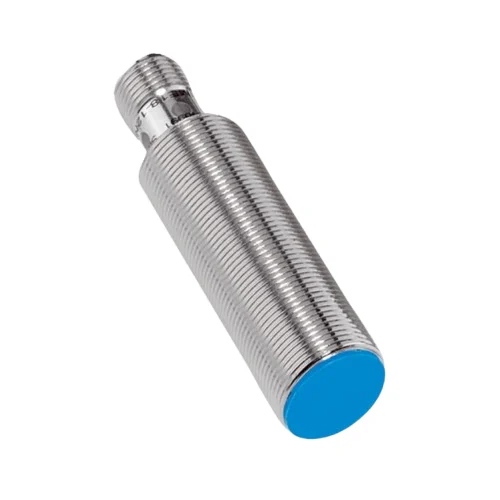

SICK IME18-08BNSZC0S Inductive Proximity Sensor
M18 threaded cylindrical brass inductive sensor. 8mm flush sensing range, NPN NO output, 1kHz switching frequency, IP67 rated enclosure, M12 4-pin connector.
| Parameter | Value |
|---|---|
| Sensing Range (Sn) | 8 mm |
| Guaranteed Sensing Range (Sa) | 6.48 mm |
| Installation Type | Flush |
| Switching Output | NPN |
| Output Function | NO (Normally Open) |
| Electrical Wiring | DC 3-wire |
| Supply Voltage | 10 V DC ... 30 V DC |
| Switching Frequency | 1 kHz |
| Connection Type | M12 4-pin male connector |
| Housing Material | Nickel-plated brass |
| Sensing Face Material | Plastic PA66 |
| Enclosure Rating | IP67 |
| Thread Size | M18 x 1 |
| Housing Length | 69 mm |
| Thread Length | 52 mm |
| Operating Temperature | -25 °C to +75 °C |
| Current Consumption | ≤ 10 mA (without load) |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 6.9 x 1.8 x 1.8 |
Detects the precise presence and position of metallic components on fast-moving automated conveyors.
Ensures precise timing for downstream robotic pick-and-place operations, preventing missed parts and costly mechanical collisions.
Monitors the home position and safe end-of-travel limits for moving axes on industrial milling and turning machines.
Delivers high operational repeatability and resistance to environmental hazards, ensuring accurate machine calibration and preventing over-travel damage.
Identifies the rotational position of metallic timing cams to properly synchronize packaging and sealing mechanisms.
Maintains exact synchronization in high-vibration manufacturing environments without physical contact wear, dramatically reducing maintenance downtime.
