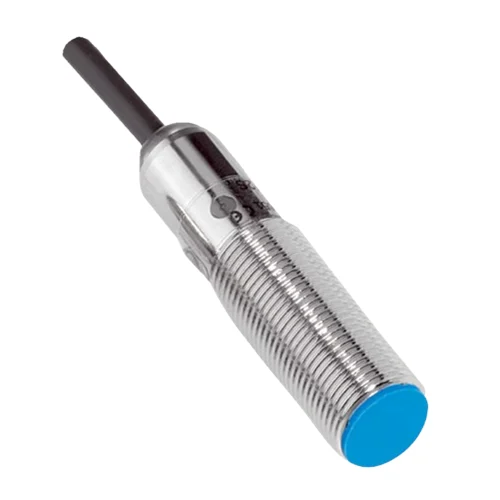

SICK IME12-04BDSZY2K Inductive Proximity Sensor – Compact Precision for Reliable Metal Detection
The SICK IME12-04BDSZY2K Inductive Proximity Sensor is a compact M12 model engineered for dependable metal object detection in tight installation spaces. Featuring a 4 mm sensing range, flush mounting, and durable IP67 housing, it ensures stable operation even in challenging industrial environments. Its DC 2-wire, normally open output design supports easy integration with automation systems. This sensor provides high accuracy and repeatability, making it ideal for machine tools, automated conveyors, and packaging systems that demand consistent, non-contact detection performance.
Designed with a nickel-plated brass body and an oil-resistant cable, the IME12-04BDSZY2K offers long-lasting durability and protection from environmental stress. Its fast 2 kHz switching frequency makes it effective for high-speed machinery, while built-in short-circuit protection ensures electrical safety. The compact form factor allows installation in limited spaces without compromising detection reliability. Suitable for temperature ranges between –25 °C and +75 °C, this sensor delivers precise, maintenance-free operation across manufacturing, robotics, and process control systems—reducing downtime and enhancing overall production efficiency.
Why SICK IME12-04BDSZY2K?
Because precision and reliability fit perfectly in tight spaces. The SICK IME12-04BDSZY2K combines rugged construction with fast, accurate metal detection. It’s built to thrive in demanding automation lines where consistency, compact size, and zero-maintenance performance are key to keeping machines running smoothly.
What problem does it solve?
It eliminates missed detections and false triggers caused by vibration, oil, or temperature changes. The IME12-04BDSZY2K ensures uninterrupted sensing in harsh environments, solving the problem of unstable readings and frequent sensor replacements—keeping automated systems precise, efficient, and worry-free.
Key Features & Specifications – SICK IME12-04BDSZY2K (Article No. 1072274)
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Inductive Proximity Sensor | Enables non-contact detection of metal objects with high precision. |
| Sensing Range (Sn) | 4 mm | Provides reliable short-distance detection ideal for compact automation setups. |
| Installation Type | Flush-mounted, M12 x 1 thread | Allows easy and secure installation in tight machine spaces. |
| Output Function | Normally Open (NO), 2-wire DC | Simplifies wiring and integration with existing control systems. |
| Switching Frequency | 2,000 Hz | Ensures accurate sensing of fast-moving targets on production lines. |
| Supply Voltage | 10–30 V DC | Compatible with standard industrial power systems. |
| Housing Material | Nickel-plated brass | Offers excellent durability and corrosion resistance. |
| Sensing Face Material | Plastic (PA66) | Provides high wear resistance and electrical insulation. |
| Protection Class | IP67 | Resistant to dust, oil, and water, suitable for harsh environments. |
| Operating Temperature | –25 °C to +75 °C | Reliable performance under varying ambient conditions. |
| Cable Type & Length | 2 m PVC, oil-resistant | Long-lasting connectivity even in oily or mechanical stress conditions. |
| Voltage Drop | ≤ 4 V | Maintains stable signal transmission and energy efficiency. |
| Current Rating | ≤ 100 mA | Prevents circuit overload while ensuring efficient power use. |
| Response Time | ≤ 0.5 ms | Rapid detection for high-speed automation systems. |
| Short-Circuit Protection | Integrated | Safeguards against accidental wiring faults or overloads. |
| Vibration Resistance | Up to 30 g | Maintains sensing accuracy even in machines with high vibration levels. |
| Certifications | CE, UKCA, UL, RoHS | Ensures compliance with international industrial safety standards. |
| Included Accessories | 2 nickel-plated mounting nuts | Ready-to-install solution minimizing setup time. |
Download SICK IME12-04BDSZY2K (1072274) Datasheet
Commercial Information – SICK IME12-04BDSZY2K (Article No. 1072274)
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084333170 |
| Weight | 63 g |
| Country of Origin | Malaysia |
The Applications of SICK IME12-04BDSZY2K
1. High-Speed Pick & Place Systems
In automated pick-and-place machinery, precision and timing are crucial. The IME12-04BDSZY2K’s compact M12 housing and 2 kHz switching frequency make it ideal for detecting small metallic parts as they move rapidly through the system. Its flush-mounted design allows placement close to moving components without interference, while excellent vibration resistance ensures consistent part detection. This combination helps achieve faster cycle times and higher production accuracy.
2. CNC Machine Tool Verification
In CNC machining centers, sensors are used to verify that tools or fixtures are correctly loaded. The IME12-04BDSZY2K reliably detects the presence of metal tool holders or clamps even when exposed to coolant, chips, and metal debris. With IP67 protection and a nickel-plated brass body, it withstands harsh conditions while maintaining precision. This reduces tool change errors and downtime, ensuring smoother automated machining operations.
3. Conveyor Sorting in Packaging Lines
On fast-moving conveyor systems for packaging, precise detection of metallic caps or components is essential for alignment and sorting. The IME12-04BDSZY2K provides dependable metal detection even under wet or dusty conditions. Its oil-resistant cable and high-frequency response guarantee accurate results during continuous operation. By maintaining consistent detection despite vibration or moisture, it supports reliable automation in food, beverage, and pharmaceutical production.
4. Robotic Assembly for Small Components
In compact robotic assembly stations, space is limited and detection precision is vital. The IME12-04BDSZY2K fits easily into tight mounting areas, allowing robots to detect metal screws, brackets, or terminals with precision. Its fast response time ensures accurate positioning during rapid assembly cycles. Resistant to temperature variations and electrical noise, the sensor helps maintain stable operation, minimizing misalignment and enhancing assembly efficiency.
Related Products & Accessories – Compatible with SICK IME12-04BDSZY2K (Article No. 1072274)
| Category | Model Name | Part Number | Description / Benefit |
|---|---|---|---|
| Mounting Accessory | BEF-KHF-M12 | 2051480 | Clamping block for M12 round sensors with fixed stop, made of reinforced plastic (PA12). Includes mounting hardware for secure and vibration-resistant installation. |
| Mounting Accessory | BEF-KH-M12 | 2051479 | Clamping block for M12 sensors without fixed stop, suitable for adjustable positioning. Durable, lightweight, and easy to integrate. |
| Mounting Accessory | BEF-WG-M12 | 5321869 | Steel mounting plate for M12 sensors, zinc-coated surface offering strong mechanical support and corrosion resistance. Ideal for stable, fixed mounting. |
| Mounting Accessory | BEF-WN-M12 | 5308447 | Mounting bracket for M12 sensors, steel construction with zinc coating. Provides flexible mounting orientation and quick sensor replacement. |
