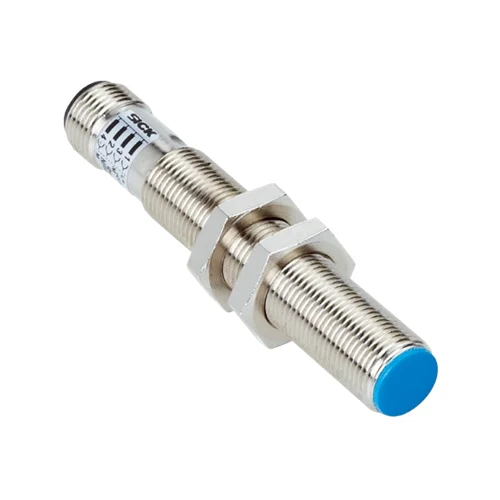

SICK IM12-04NNS-ZUK Inductive Proximity Sensor 4 mm M12

SICK IM12-04NNS-ZUK Inductive Proximity Sensor – 4 mm Non-Flush Metal Detection

The SICK IM12-04NNS-ZUK inductive proximity sensor is a compact M12 sensor engineered for accurate metal object detection in industrial automation systems. With a 4 mm sensing distance and non-flush mounting design, it addresses the need for precise and repeatable position sensing in confined machine layouts. The sensor combines a rugged IP67-rated housing with a stable NPN normally open output, making it suitable for continuous operation in electrically noisy and mechanically demanding environments. Its design supports reliable detection where space, speed, and durability are all critical.

Designed for long-term reliability, the SICK IM12-04NNS-ZUK performs consistently in high-speed and high-cycle applications. Its rapid response capability enables accurate detection on fast-moving conveyors and automated assembly lines, while integrated protection features reduce the risk of downtime caused by wiring faults or short circuits. The robust metal housing resists vibration, impact, and temperature variation, supporting use in packaging machinery, material handling systems, and general factory automation. Non-flush installation enhances sensing performance, allowing flexible mounting without sacrificing detection stability or service life.

Why SICK IM12-04NNS-ZUK?

The SICK IM12-04NNS-ZUK is built for engineers who need dependable metal detection without redesigning their machine layout. Its compact M12 form factor fits easily into tight spaces, while the non-flush design delivers a stronger and more forgiving sensing range. High switching speed, stable output behavior, and a rugged metal housing make it a practical choice for machines that run continuously, vibrate heavily, or operate in electrically noisy environments where sensor reliability directly affects productivity.

What problem does it solve?

This sensor solves the challenge of inconsistent or unreliable metal detection in fast-moving and space-constrained automation systems. It ensures accurate presence and position feedback even when targets move quickly or mounting conditions are less than ideal. By reducing false signals, missed detections, and premature sensor failures, it helps manufacturers avoid unplanned downtime, maintain process accuracy, and achieve smoother, more predictable machine operation across a wide range of industrial applications.

Key Features & Specifications – SICK IM12-04NNS-ZUK: Part Number 1017439

Download SICK IM12-04NNS-ZUK (1017439) Datasheet

Commercial Information – SICK IM12-04NNS-ZUK (Part Number 1017439)

The Applications for SICK IM12-04NNS-ZUK

1. High-Speed Conveyor Pallet Presence Detection

In high-throughput conveyor systems, accurate detection of pallets or carriers is critical to avoid misrouting and collisions. The SICK IM12-04NNS-ZUK is commonly installed along guide rails to detect a metal tab, bolt head, or plate mounted on the pallet. Its high switching frequency ensures reliable detection even when pallets move quickly and spacing is minimal. The non-flush mounting design maintains a stable sensing distance near metal frames, while the compact M12 housing fits easily into restricted areas. With its robust enclosure and integrated protection features, the sensor delivers consistent signals in dusty, vibration-prone conveyor environments, helping operators maintain smooth material flow and predictable system timing.

2. Packaging Machine Timing Cam and Position Control

Packaging machines rely on precise timing to synchronize cutting, sealing, and indexing operations. This sensor is well suited for detecting rotating metal cams or timing discs that define machine cycle positions. Its fast signal response allows the control system to accurately confirm key positions such as home, end-of-stroke, or ready-to-seal states. The durable metal housing withstands constant vibration and mechanical stress common in packaging equipment. Non-flush installation supports flexible mounting near metallic machine frames without signal instability. By providing repeatable position feedback, the sensor helps reduce mistimed operations, minimize scrap, and maintain consistent packaging quality across long production runs.

3. Assembly and Welding Fixture Part Verification

In automated assembly and welding fixtures, confirming that a metal part is correctly positioned before cycle start is essential to prevent defects and tool damage. The IM12-04NNS-ZUK can be positioned to sense a specific metal feature such as a flange edge, bracket surface, or locating pin. Its compact size allows installation close to clamps and tooling, while the non-flush design ensures reliable detection near steel fixtures. The sensor’s resistance to vibration and temperature variation supports stable operation during repeated clamping and welding cycles. This creates a dependable part-present or clamp-closed signal that improves process reliability and reduces costly rework.

4. Pneumatic Cylinder and Mechanical Stop End-Position Detection

Automated gates, stops, and pneumatic actuators often require confirmation of end positions to ensure safe and accurate sequencing. This sensor is frequently used to detect a metal striker or actuator-mounted target at the fully extended or retracted position. The short-body M12 format simplifies mounting on brackets or machine frames where space is limited. Consistent switching behavior helps maintain precise timing for motion control, while built-in electrical protections increase system robustness. In material handling and automation cells, this results in fewer positioning errors, reduced jams, and more predictable machine operation during continuous production cycles.
