Reliable 200-pulse SICK DFS60E-S4EK00200 encoder delivering precise motion feedback, robust build, HTL output, and long service life for industrial automation.
$ 270.02
Reliable 200-pulse SICK DFS60E-S4EK00200 encoder delivering precise motion feedback, robust build, HTL output, and long service life for industrial automation.

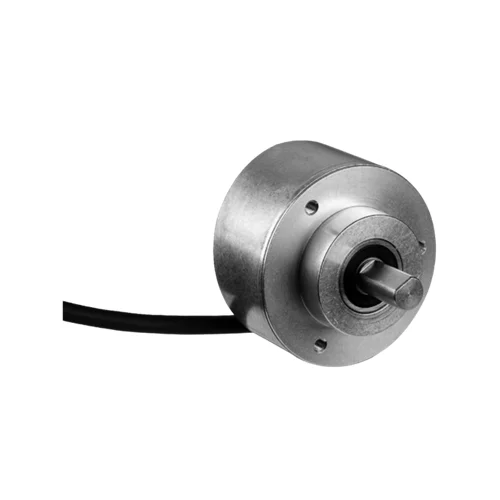

The SICK DFS60E-S4EK00200 incremental encoder is engineered to deliver stable and accurate rotary feedback for machinery that demands consistent motion monitoring. With a 200-pulse resolution and a durable solid-shaft design, it supports precise speed and position control across a wide range of automation tasks. Its robust build, high mechanical load capability, and wide operating temperature tolerance make it suitable for long-term deployment, even in harsh factory environments. The encoder integrates easily into control systems thanks to its HTL push-pull interface and universal cable connection, helping machines maintain responsiveness and operational stability in continuous-duty applications.
Designed for dependable performance, the DFS60E-S4EK00200 offers consistent signal quality with tight angular error limits, supporting smooth machine regulation even during rapid acceleration or high-speed rotation. The encoder’s rugged stainless-steel shaft and aluminum housing provide resilience against vibration, shock, and mechanical stress, extending system uptime. Its high output frequency enables accurate tracking of fast-moving equipment, while built-in electrical protections minimize the risk of unexpected failures. With an IP65/IP67 sealing concept and a long bearing lifespan, the encoder suits demanding applications such as conveyor feedback, automated cutting systems, industrial robotics, and precision assembly lines where reliable positional data directly influences throughput and equipment efficiency.
The DFS60E-S4EK00200 stands out as a compact yet highly durable encoder that delivers consistent, noise-resistant feedback even in demanding production lines. Its strong mechanical resilience, long bearing life, and stable HTL signal output make it a trusted choice for engineers needing precise motion control without compromising installation flexibility or long-term reliability.
This encoder eliminates uncertainty in motion tracking by providing accurate rotational feedback that keeps machines synchronized, stable, and predictable. It resolves issues like drift, inconsistent speed control, and signal noise that often disrupt automation processes. By delivering reliable position data, it ensures smooth operation in systems where timing, precision, and repeatability are critical.
| Feature | Details | Benefit |
|---|---|---|
| Pulse Resolution | 200 pulses per revolution | Provides dependable positioning accuracy for speed and motion control tasks. |
| Signal Interface | Incremental, HTL push-pull, 6-channel output | Ensures clean, robust signal transmission even in electrically noisy environments. |
| Supply Voltage Range | 10–32 V | Compatible with a wide range of industrial controllers and drives. |
| Output Frequency | Up to 300 kHz | Enables tracking of fast rotational speeds without loss of precision. |
| Reference Signal | 1 zero pulse, gated with A and B | Allows repeatable referencing for homing routines and precise indexing. |
| Shaft Type | Solid stainless-steel shaft, 10 mm diameter, 19 mm length | High durability and resistance to mechanical wear for long service life. |
| Mechanical Design | Face-mount flange, aluminum housing | Easy integration into standard mounting setups with strong structural stability. |
| Protection Ratings | IP67 (housing side), IP65 (shaft side) | Protects against dust and moisture for reliable operation in tough environments. |
| Operating Speed | Up to 9,000 rpm | Suitable for high-speed conveyors, rotary tables, and automated machinery. |
| Error Limits | Angular deviation ±0.3° | Ensures consistent positional accuracy in precision applications. |
| Operating Temperature | 0°C to +85°C | Maintains stable performance in most industrial temperature conditions. |
| Shock & Vibration Resistance | 50 g shock, 20 g vibration | Withstands mechanical stress from dynamic motion systems. |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Extends encoder lifespan, reducing maintenance intervals and downtime. |
| MTTFd Reliability | 300 years (calculated) | Extremely high dependability for continuous-duty machinery. |
| Connection Type | 1.5 m universal 8-wire cable | Flexible installation options without complex routing constraints. |
| Reverse Polarity & Short-Circuit Protection | Integrated safeguards | Helps prevent damage from wiring errors or electrical faults. |
Download SICK DFS60E-S4EK00200 (1037401) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084265976 |
| Weight | 0.373 kg |
| Country of Origin | Germany |
Packaging systems depend on extremely steady conveyor movement to keep sealing, filling, and labeling aligned. The DFS60E-S4EK00200 provides clean incremental pulses that allow controllers to detect minute speed variations and correct them instantly. Its ability to operate at high signal frequencies makes it suitable for rapid acceleration and deceleration cycles common in fast-moving lines. The solid shaft design tolerates constant belt tension changes, while the protective housing shields the encoder from airborne dust and moisture that typically surround packaging equipment. With dependable rotational data, operators enjoy smoother product flow, fewer jams, and more consistent output quality.
Rotary cutters need precise timing between blade rotation and material feed to maintain clean edges and consistent lengths. The DFS60E-S4EK00200 offers tight angular accuracy, allowing the control system to keep the blade orientation synchronized during high-speed operation. Its robust mechanical structure withstands vibration from cutting forces, helping the encoder deliver stable signals even during fast or irregular cuts. The defined reference pulse helps the machine consistently reset alignment after each cycle. By ensuring the blade always meets the material at the correct position, manufacturers reduce wastage, maintain uniform quality, and achieve better repeatability across long production runs.
Assembly stations that rely on rotary indexers must position each component accurately at every stop to avoid misalignment. The DFS60E-S4EK00200 provides reliable incremental feedback that controllers use to confirm each angular step of the carousel. The encoder’s durable bearings and high load capability support applications where the indexer carries several tools or heavy fixtures. Its signal robustness is ideal for systems with long cable routes or electrical noise from neighboring equipment. With consistent positional feedback, assembly lines experience fewer alignment errors, faster cycle transitions, and improved station-to-station repeatability, contributing to higher overall throughput.
Robotic arms performing tasks such as part handling, inspection, or adhesive dispensing require accurate, real-time feedback to execute smooth paths. The DFS60E-S4EK00200 delivers responsive incremental pulses that allow servo drives to adjust torque and speed instantly during rapid joint movements. Its high rotational speed tolerance suits robots operating with quick directional changes, while the rugged housing helps protect the encoder during repetitive vibration cycles. The wide voltage range allows flexible integration with various robotic controllers. As a result, robots achieve more stable trajectories, reduced oscillations, and higher repeatability, directly improving process reliability and product consistency.
| Category | Model Name | Part Number | Benefit / Purpose |
|---|---|---|---|
| Shaft Coupling | KUP-0610-B | 5312982 | Bellows coupling that compensates minor misalignments and offers precise torque transfer for 6–10 mm shafts. |
| Shaft Coupling | KUP-0610-D | 5326697 | Flexible double-loop design ideal for machines with higher shaft offset or vibration. |
| Shaft Coupling | KUP-0610-F | 5312985 | Spring washer mechanism providing stable yet lightweight coupling for general motion control. |
| Shaft Coupling | KUP-0610-S | 2056407 | Bar-type coupling for consistent torque delivery with minimal backlash. |
| Shaft Coupling | KUP-0610-J | 2127056 | Claw coupling with damping insert to reduce vibration transfer to the encoder. |
| Shaft Coupling | KUP-0810-D | 5326704 | Double-loop coupling for 8–10 mm shafts, suitable for dynamic applications needing offset tolerance. |
| Shaft Coupling | KUP-0810-S | 5314178 | Durable bar coupling optimised for smooth torque transmission in moderate load systems. |
| Shaft Coupling | KUP-1010-B | 5312983 | High-torque bellows coupling for precise shaft alignment on 10 mm encoder setups. |
| Shaft Coupling | KUP-1010-D | 5326703 | High-flex double-loop coupling designed to handle larger angular and radial deviations. |
| Shaft Coupling | KUP-1010-F | 5312986 | Spring washer version offering rigid yet lightweight connection for medium-speed operations. |
| Shaft Coupling | KUP-1010-S | 2056408 | Bar-type coupling tailored for 10 mm solid shafts in stable torque environments. |
| Shaft Coupling | KUP-1012-B | 5312984 | Bellows coupling designed to bridge 10–12 mm shafts with high torsional stiffness. |
| Shaft Coupling | KUP-1012-D | 5326702 | Double-loop coupling allowing generous shaft offsets while maintaining flexible operation. |
| Shaft Coupling | KUP-0810-J | 2128267 | Dampened claw coupling for 8–10 mm shafts, reduces vibration impact on the encoder. |
| Shaft Coupling | KUP-1010-J | 2127054 | Heavy-duty claw coupling suited for fast-speed machinery using 10 mm shafts. |
| Shaft Coupling | KUP-1012-J | 2128265 | Claw coupling for 10–12 mm shafts with built-in shock absorption characteristics. |
| Measuring Wheel | BEF-MR06200APN | 4084747 | Polyurethane-studded wheel offering reliable friction for 6 mm shaft measuring systems. |
| Measuring Wheel Mechanics | BEF-MRS-10-U | 2085714 | Modular measurement system compatible with S4 flange encoders including DFS60. |
| Measuring Wheel | BEF-MR010020R | 2055224 | 200 mm O-ring wheel for smooth-surface linear tracking. |
| Measuring Wheel | BEF-MR010030R | 2049278 | 300 mm circumference wheel for extended measurement range per rotation. |
| Measuring Wheel | BEF-MR010050R | 2055227 | 500 mm wheel designed for large-distance measurement tasks. |
| Measuring Wheel | BEF-MR10200AK | 4084737 | Knurled aluminum wheel producing strong grip on diverse surfaces. |
| Measuring Wheel | BEF-MR10200AP | 4084738 | Smooth polyurethane wheel for delicate or polished materials. |
| Measuring Wheel | BEF-MR10200APN | 4084739 | Studded polyurethane wheel for high-traction applications. |
| Measuring Wheel | BEF-MR10500AK | 4084733 | Knurled 500 mm wheel supporting long-travel, high-friction tasks. |
| Measuring Wheel | BEF-MR10500AP | 4084734 | Smooth 500 mm polyurethane wheel for stable and controlled movement tracking. |
| Measuring Wheel | BEF-MR10500APG | 4084736 | Ridged polyurethane wheel offering enhanced grip on mixed surfaces. |
| Measuring Wheel | BEF-MR10500APN | 4084735 | Studded version for strong traction during extended motion measurement. |
| Mounting System | BEF-FA-LB1210 | 2044591 | Heavy-duty bearing block designed to carry substantial radial and axial loads before reaching the encoder. |
| Mounting Bracket | BEF-WF-36 | 2029164 | Standard 36 mm spigot bracket for quick and secure encoder mounting. |
| Flange Adapter | BEF-FA-036-050 | 2029160 | Converts 36 mm face flange to 50 mm servo flange for broader compatibility. |
| Flange Adapter | BEF-FA-036-060REC | 2029162 | Adapter for shifting to a 60 mm square mounting plate. |
| Flange Adapter | BEF-FA-036-060RSA | 2029163 | Shock-absorbing version of the 60 mm mounting adapter for vibration-prone systems. |
| Flange Adapter | BEF-FA-036-063REC | 2034225 | Adapts 36 mm flange to 63 mm mounting plate for wider mechanical integration. |
| Flange Adapter | BEF-FA-036-100 | 2029161 | Converts 36 mm centering hub to 100 mm servo flange. |
| Flange Adapter | BEF-FA-036-050-019 | 2063378 | Custom adapter enabling integration to bearing block assemblies. |
| Mounting Angle | BEF-WF36F | 4084775 | Spring-loaded angle bracket ensuring stable tension-based contact for measurement systems. |
| Cable / Connector | STE-1208-GA01 | 6044892 | M12 8-pin male connector cable for incremental signals with shielded wiring. |
| Cable / Connector | DOL-0J08-G3M0AA6 | 2048591 | 3 m shielded JST-to-lead cable suited for incremental or SSI wiring. |
| Cable / Connector | DOL-0J08-G1M5AA6 | 2048590 | 1.5 m JST cable for compact routing requirements. |
| Cable / Connector | DOL-0J08-G0M5AA3 | 2046873 | 0.5 m short cable for tight installations. |
| Cable / Connector | DOL-0J08-G05MAA3 | 2046876 | 5 m JST lead cable for longer distance runs. |
| Cable / Connector | DOL-0J08-G10MAA3 | 2046877 | 10 m long cable supporting remote control cabinet layouts. |
| Cable / Connector | STE-2312-GX | 6028548 | M23 12-pin connector supporting incremental and SSI wiring. |
| Cable / Connector | STE-2312-G01 | 2077273 | Alternative M23 connector for various wiring configurations. |
| Cable / Connector | STL-2312-GM35AA3 | 2061621 | JST-to-M23 interface cable (0.35 m) for adapter setups. |
| Cable / Connector | STL-2312-G01MAA3 | 2061622 | 1 m JST-to-M23 cable for flexible installations. |
| Cable / Connector | STL-2312-G02MAA3 | 2061504 | 2 m JST-to-M23 cable for extended routing. |
