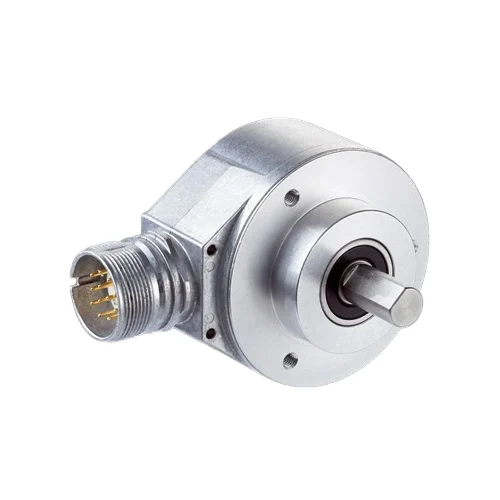

The Applications of SICK DFS60E-S4AA01024 Incremental Encoder
1. High-Speed Packaging Line Synchronization
In modern packaging systems, precise coordination between conveyor belts, filling units, and labeling machines is essential. The DFS60E-S4AA01024 enables smooth motion control through its 1,024 PPR resolution, ensuring accurate product placement and timing. Its durable build resists vibration and shock, maintaining reliable pulse output during high-speed cycles. With stable TTL/RS-422 signal transmission, it helps eliminate misfeeds and downtime, supporting efficient and consistent packaging throughput.
2. Robotic Arm Axis Feedback Control
In industrial robotics, joint movement accuracy directly impacts performance. The encoder’s low operating torque and high signal precision allow robots to perform repeatable, fine-tuned motions. The compact design integrates easily into servo systems, providing consistent positional feedback for complex trajectories. Its extended bearing life and resistance to vibration ensure long-term operation even under continuous, high-speed robotic movements, supporting smooth motion without mechanical strain.
3. Conveyor Speed and Direction Monitoring
For automated material handling systems, maintaining accurate conveyor speed and detecting slippage is critical. The DFS60E-S4AA01024 provides continuous rotational feedback to monitor motor speed and detect irregular movement. Its IP67-rated housing shields against dust and moisture, ideal for use in factories or bulk material facilities. This stable feedback helps control systems balance load distribution, reducing mechanical wear and preventing operational interruptions.
4. Precision Spindle Control in CNC Machines
CNC machinery relies on consistent spindle speed to achieve accurate cutting and surface quality. The encoder’s high RPM tolerance and precise pulse output allow real-time spindle monitoring and adaptive speed adjustments. This precision minimizes tool vibration and enhances cutting accuracy. Its robust aluminum and stainless-steel construction withstands heat and mechanical stress, making it a dependable component for maintaining precision in demanding machining operations.
Related Products & Accessories – Compatible with SICK DFS60E-S4AA01024
| Category | Model Type | Part Number | Benefits |
|---|---|---|---|
| Shaft Coupling | Bellows Coupling | KUP-1010-B | Compensates angular and axial misalignment, offering high torsional rigidity and precise motion transfer. |
| Double Loop Coupling | KUP-1010-D | Absorbs vibration and shock loads, ensuring smoother torque transmission in dynamic systems. | |
| Spring Washer Coupling | KUP-1010-F | Reduces backlash and provides flexible coupling ideal for precise servo applications. | |
| Bar Coupling | KUP-1010-S | Lightweight and durable; ideal for medium-torque transmission with minimal wear. | |
| Claw Coupling | KUP-1010-J | High torque capacity (up to 800 Ncm) with vibration damping for extended bearing life. | |
| Measuring Wheel | O-Ring Surface, 200 mm Circumference | BEF-MR010020R | Provides stable traction and precise distance measurement on smooth conveyors. |
| Cross-Knurled Surface, 200 mm Circumference | BEF-MR10200AK | Prevents slippage and ensures consistent accuracy on rough or textured materials. | |
| Smooth Polyurethane Surface, 500 mm Circumference | BEF-MR10500AP | Offers gentle contact and long-lasting performance in continuous measuring systems. | |
| Studded Polyurethane Surface, 500 mm Circumference | BEF-MR10500APN | Maintains strong grip on uneven materials for reliable speed and distance detection. | |
| Mounting System | Bearing Block Assembly | BEF-FA-LB1210 | Absorbs radial and axial loads, extending encoder and shaft lifespan. |
| Mounting Bracket, 36 mm Spigot | BEF-WF-36 | Simplifies installation and ensures accurate alignment of face-mount encoders. | |
| Mounting Adapter | Flange Adapter 36 mm to 50 mm Servo Flange | BEF-FA-036-050 | Allows conversion to standard servo flanges for versatile mounting options. |
| Flange Adapter 36 mm to 60 mm Square Plate | BEF-FA-036-060REC | Provides firm, flat mounting for enhanced structural stability. | |
| Spring-Loaded Mounting Angle, 36 mm Flange | BEF-WF36F | Enables flexible alignment and absorbs vibration during operation. | |
| Connection Cable | M23 12-pin Straight Cable, 2 m | DOL-2312-G02MLA3 | Short-length, shielded cable ensuring noise-free data transmission. |
| M23 12-pin Straight Cable, 10 m | DOL-2312-G10MLA3 | Reliable mid-range connection with high EMI resistance. | |
| M23 12-pin Straight Cable, 20 m | DOL-2312-G20MLA3 | Long-distance cable designed for large machines and extended wiring paths. | |
| Connector | M23 12-pin Female Connector, Straight Type | DOS-2312-G02 | Secure, shielded connection ensuring signal integrity and easy maintenance. |
| M23 12-pin Female Connector, Angled Type | DOS-2312-W01 | Space-saving design for tight enclosures with reliable electrical contact. |
