$ 270.02
High-precision SICK DFS60E-S1EA00250 encoder with 250 PPR for reliable motion control, fast feedback, and stable performance in industrial automation systems.

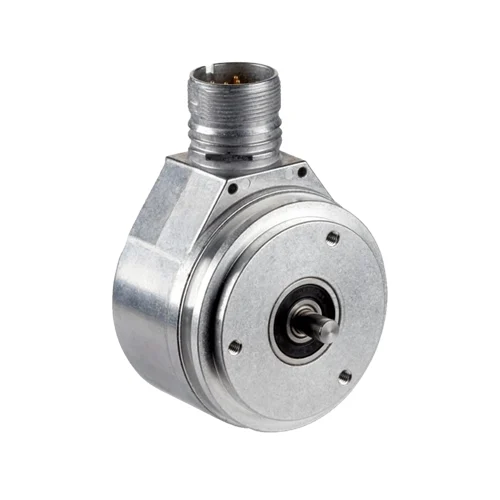

The SICK DFS60E-S1EA00250 incremental encoder is engineered for applications requiring dependable 250-pulse position and speed feedback in automated machinery. It combines a solid-shaft design, servo flange mounting, and a highly durable aluminum housing to maintain stability under continuous industrial operation. With wide input voltage compatibility and a protected connector interface, it integrates smoothly into both new and existing motion systems. Designed to handle vibration, shock, and varying loads, the DFS60E unit supports precise measurement tasks where consistent rotational data is essential for maintaining machine performance and operational accuracy.
The DFS60E-S1EA00250 brings improved control accuracy through its tight angular deviation limits and well-defined electrical measuring steps, allowing smooth motor regulation even during rapid accelerations or speed shifts. Its mechanical strength enables operation at high speeds while supporting significant radial and axial forces, which is valuable for conveyors, rollers, and belt-driven assemblies. The encoder’s fast electronic initialization and efficient power requirements contribute to responsive system behavior and reduced energy overhead. Long bearing life and strong environmental ratings help ensure predictable maintenance cycles and dependable operation, enabling manufacturers to maintain uptime and reduce process variability in demanding production environments.
Because it delivers dependable motion feedback in places where accuracy cannot fail. The DFS60E-S1EA00250 combines rugged mechanical strength with finely controlled pulse generation, giving machine builders a compact encoder that performs consistently under load, shock, or high operating speeds. It is the ideal choice when you need robust industrial reliability paired with clean, stable incremental signals.
It eliminates uncertainty in rotational measurement, especially in systems where even slight deviations lead to product waste, misalignment, or unstable speed control. The DFS60E-S1EA00250 provides a predictable and repeatable stream of position and velocity data, allowing automation equipment to synchronize movements, maintain precision during dynamic changes, and operate efficiently without drift or signal inconsistency.
| Feature | Details | Benefit |
|---|---|---|
| Pulses per Revolution | 250 PPR | Provides reliable speed and position feedback for precise motion control. |
| Measuring Step | 90° electrical per pulse cycle | Ensures smooth signal transitions and stable incremental tracking. |
| Error Limits | Maximum deviation ±0.3° | Helps maintain accuracy in high-precision automation tasks. |
| Output Type | Incremental HTL / Push-pull, 6-channel | Offers strong signal integrity and broad controller compatibility. |
| Initialization Time | 40 ms | Enables quick system readiness and faster machine cycle starts. |
| Max Output Frequency | Up to 300 kHz | Supports high-speed machinery without signal degradation. |
| Supply Voltage | 10–32 V DC | Flexible voltage range suitable for most industrial systems. |
| Connection Type | M23 12-pin male connector, radial | Provides secure, vibration-resistant connectivity. |
| Mechanical Design | Solid shaft, servo flange, 6 mm diameter | Ensures dependable coupling and stable mounting. |
| Operating Speed | Up to 9,000 rpm | Suited for fast-rotating motors and dynamic applications. |
| Shaft Load Capacity | 80 N radial, 40 N axial | Handles demanding mechanical stress with long-term durability. |
| Housing Material | Aluminum die-cast | Lightweight, corrosion-resistant, and robust for harsh conditions. |
| Environmental Protection | IP67 at connector side, IP65 at shaft side | Resists dust, moisture, and common industrial contaminants. |
| Operating Temperature | 0°C to +85°C | Supports a wide range of indoor and outdoor environments. |
| Shock & Vibration Resistance | 50 g shock, 20 g vibration | Maintains performance in dynamic, high-vibration installations. |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Long operational life reduces downtime and maintenance costs. |
| Power Consumption | ≤ 0.5 W | Low energy usage for efficient system integration. |
| Electronics Protection | Reverse polarity and short-circuit protection | Enhances system reliability and protects electronics from wiring errors. |
Download SICK DFS60E-S1EA00250 (1037361) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084267260 |
| Weight | 0.335 kg |
| Country of Origin | Germany |
Packaging lines depend on consistent conveyor motion to avoid uneven product spacing or misaligned sealing points. The DFS60E-S1EA00250 supports this by delivering stable rotational feedback that helps controllers maintain uniform belt movement even when loads change. Its tolerance to vibration allows the encoder to operate reliably near motors and drive rollers, where mechanical shocks are common. This steady positional data assists the system in coordinating multiple conveyors, improving transitions between stages such as filling, sealing, or carton loading. Manufacturers benefit from smoother flow, reduced product collisions, and fewer stoppages caused by speed inconsistencies or abrupt acceleration patterns.
Print and labeling equipment must maintain precise alignment as material travels across rollers at varying tension levels. The DFS60E-S1EA00250 provides incremental feedback that allows the controller to calculate real movement instead of relying solely on theoretical speed values. This helps compensate for variations in roller wear or temperature-induced expansion. Its high-frequency output supports rapid print cycles while maintaining clean signal edges. Because the shaft design handles radial load effectively, the encoder remains stable during long runs. The result is better print registration, fewer misfeeds, and more consistent label placement, especially in high-volume production environments.
Robotic systems using linear gantries or articulated arms require dependable speed and position information to execute smooth, repeatable movements. The DFS60E-S1EA00250’s tight angular tolerance helps the controller refine motion curves, allowing tools to reach their intended positions without excessive correction. Its HTL interface resists electrical interference from servo drives and power cables commonly found in robotic cells. The encoder’s mechanical strength supports mounting directly on drive shafts without early degradation. This combination improves cycle stability, reduces overshoot, and enhances the robot’s ability to maintain accuracy during tasks such as component placement, sorting, or repetitive handling.
Industrial mixers often experience fluctuating loads as ingredients blend and viscosity changes. The DFS60E-S1EA00250 provides consistent pulse feedback that helps maintain target rotational speed throughout the mixing cycle. Its ability to operate at high RPM allows it to capture speed variations quickly, enabling the controller to adjust motor output before deviations impact product uniformity. The encoder’s environmental sealing protects it from dust and light splashing, which is common in processing environments. With this steady feedback, operators can achieve more predictable batch quality, minimize energy waste, and avoid overspeed or underspeed conditions that affect end-product consistency.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Shaft Adaptation | Bellows Coupling 6/10 mm | 5312982 | High torsional stiffness for precise torque transfer and stable rotation. |
| Shaft Adaptation | Double Loop Coupling 6/10 mm | 5326697 | Flexible design compensates misalignment, reducing load on encoder bearings. |
| Shaft Adaptation | Spring Washer Coupling 6/10 mm | 5312985 | Damping characteristics reduce vibration and improve signal stability. |
| Shaft Adaptation | Bar Coupling 6/10 mm | 2056407 | Durable all-purpose coupling suitable for general automation machinery. |
| Shaft Adaptation | Claw Coupling 6/10 mm | 2127056 | Handles high torque and shock, ideal for dynamic applications. |
| Shaft Adaptation | Bar Coupling 6/8 mm | 5314179 | Adaptable for mixed shaft sizes, enabling flexible integration. |
| Shaft Adaptation | Cross-Slotted Coupling 6/6 mm | 2056406 | Excellent offset compensation for compact encoder installations. |
| Shaft Adaptation | Bellows Coupling 6/6 mm | 5312981 | High-speed compatibility with stable torque transmission. |
| Measuring Wheels | Studded Polyurethane Wheel 200 mm | 4084747 | Strong grip ensures accurate measurement on soft or textured surfaces. |
| Measuring Wheels | Aluminum Wheel with O-Ring 200 mm | 2055222 | Smooth motion and stable contact on standard conveyor materials. |
| Measuring Wheels | Aluminum Wheel with O-Ring 300 mm | 2055634 | Larger circumference enhances measurement range per rotation. |
| Measuring Wheels | Aluminum Wheel with O-Ring 500 mm | 2055225 | Ideal for slow-speed measurement over long travel distances. |
| Measuring Wheels | Cross-Knurled Aluminum Wheel 200 mm | 4084745 | Enhanced traction for uneven or coated materials. |
| Measuring Wheels | Smooth Polyurethane Wheel 200 mm | 4084746 | Stable, slip-resistant contact for consistent measurement. |
| Measuring Wheels | Ridged Polyurethane Wheel 200 mm | 4084748 | Improved grip for dusty or lightly contaminated environments. |
| Mounting Systems | Bearing Block Assembly | 2044591 | Supports heavy shaft loads, extending encoder operating life. |
| Mounting Systems | Mounting Kit for Bearing Block | 5320872 | Provides accurate alignment and secure long-term installation. |
| Mounting Systems | Large Servo Clamp Set | 2029166 | Firm, vibration-resistant mounting for servo flange encoders. |
| Mounting Systems | Mounting Bell, 50 mm Spigot | 5312987 | Ensures precise axial alignment during encoder installation. |
| Cables & Connectors | M23 Incremental Cable, 2 m | 2030682 | Short-length cable offering clean, shielded signal transmission. |
| Cables & Connectors | M23 Incremental Cable, 7 m | 2030685 | Medium reach for flexible equipment layouts. |
| Cables & Connectors | M23 Incremental Cable, 10 m | 2030688 | Reliable long-distance routing with stable incremental signals. |
| Cables & Connectors | M23 Incremental Cable, 15 m | 2030692 | Suitable for large systems requiring extended cable runs. |
| Cables & Connectors | M23 Incremental Cable, 20 m | 2030695 | Maintains signal quality across wide-area installations. |
| Cables & Connectors | M23 Incremental Cable, 25 m | 2030699 | Ideal for distributed automation setups with high noise immunity. |
| Cables & Connectors | M23 Incremental Cable, 30 m | 2030702 | Maximum standard length for very large industrial environments. |
| Cables & Connectors | M23 Halogen-Free Cable 1.5 m | 2029212 | Low-smoke, halogen-free design suitable for safety-regulated facilities. |
| Cables & Connectors | M23 Halogen-Free Cable 3 m | 2029213 | Mid-length compliant cable for compact machinery. |
| Cables & Connectors | M23 Halogen-Free Cable 5 m | 2029214 | Suitable for cleanrooms and environments requiring regulated materials. |
| Cables & Connectors | M23 Halogen-Free Cable 10 m | 2029215 | Longer halogen-free option supporting remote encoder placement. |
| Cables & Connectors | M23 Halogen-Free Cable 20 m | 2029216 | Designed for controlled environments with extended routing. |
| Cables & Connectors | M23 Halogen-Free Cable 30 m | 2029217 | Longest halogen-free cable for large controlled facilities. |
| Cables & Connectors | M23 Female Connector, Straight | 2077057 | Solder-connection type allowing flexible wiring configurations. |
| Cables & Connectors | M23 Female Connector, Angled | 2072580 | Space-saving angled design for tight installation spaces. |
