USD 309.20

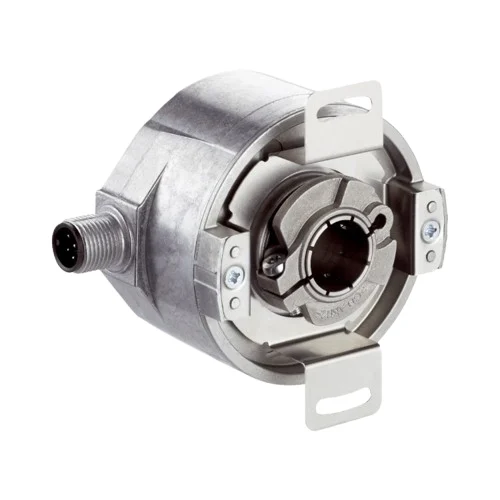

Incremental encoder featuring 1,024 PPR, an 8mm blind hollow shaft, and TTL/RS-422 interface. Operates on 10-32 VDC with robust IP67 housing protection.
Incremental encoder featuring 1,024 PPR, an 8mm blind hollow shaft, and TTL/RS-422 interface. Operates on 10-32 VDC with robust IP67 housing protection.
| Parameter | Value |
|---|---|
| Supply Voltage | 10 to 32 V DC |
| Pulses per Revolution | 1,024 PPR |
| Interface | Incremental (TTL / RS-422) |
| Shaft Type | Blind hollow shaft |
| Shaft Diameter | 8 mm |
| Maximum Operating Speed | 6,000 RPM |
| Output Frequency | ≤ 300 kHz |
| Operating Temperature | 0 °C to +85 °C |
| Enclosure Rating | IP67 (Housing side), IP65 (Shaft side) |
| Connection Type | M12 8-pin male connector, radial |
| Physical Weight (kg) | 0.2 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Tracks the exact speed and position of industrial conveyor belts using its 1,024 PPR resolution and 6,000 RPM mechanical capacity, ensuring highly synchronized material handling in logistics.
Prevents inaccurate belt speed tracking that leads to material jams, spacing errors, and unsynchronized downstream processing.
Provides continuous rotational feedback for automated industrial drives operating up to 6,000 RPM, leveraging its rugged IP67 die-cast aluminum housing and interference-resistant TTL/RS-422 output.
Eliminates the lack of precise motor speed and position feedback, preventing inefficient torque application and drive instability.
Integrates into high-speed packaging machines to provide exact rotary positioning data through its compact 8mm blind hollow shaft and fast 300 kHz output frequency.
Resolves timing misalignment during fast-paced packaging cycles, which typically causes material waste and unexpected machine downtime.
