Experience superior motion accuracy with the SICK DFS60B-TEPL10000 encoder—10,000 PPR, durable design, and reliable feedback for industrial automation.

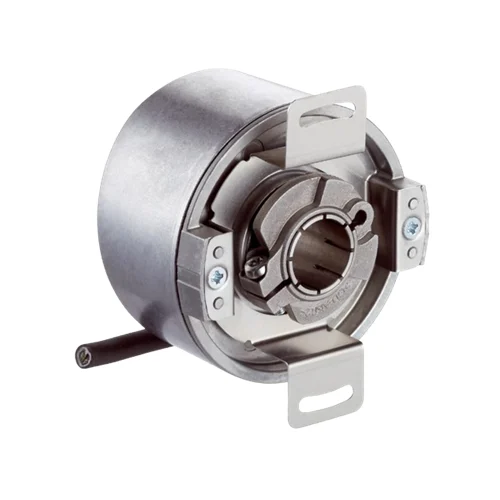

The SICK DFS60B-TEPL10000 Incremental Encoder provides high-resolution motion feedback with 10,000 pulses per revolution, ensuring precise speed and position control in automation systems. Its robust through-hollow shaft design allows flexible mounting, while the IP65-rated aluminum housing offers strong resistance against dust and moisture. The wide operating temperature range from –40 °C to +100 °C enables stable performance in demanding environments. Designed for maximum adaptability, this encoder supports TTL and HTL interfaces, along with programmable zero pulse settings—making it ideal for integration into motors, conveyors, and factory automation applications that require accuracy and reliability.
Built for industrial-grade precision, the DFS60B-TEPL10000 delivers dependable feedback even at high speeds, supporting up to 600 kHz output frequency. Its six-channel configuration provides fine signal resolution, improving system responsiveness and reducing positioning errors. The stainless-steel shaft and die-cast aluminum housing contribute to long operational life and mechanical stability. Integrated protections against short-circuits and reverse polarity enhance safety and durability. With an impressive MTTFd of 300 years, it ensures consistent, long-term performance. Ideal for robotics, servo drives, and automated production lines, this encoder enhances motion accuracy, helping improve overall machine efficiency and productivity.
Why SICK DFS60B-TEPL10000?
The SICK DFS60B-TEPL10000 stands out for its exceptional precision, robust build, and versatile programmability. With 10,000 pulses per revolution, it transforms complex motion into precise digital feedback, empowering engineers to achieve flawless synchronization and position control in dynamic automation systems. It’s the encoder that turns movement into measurable perfection.
What Problem Does It Solve?
The DFS60B-TEPL10000 eliminates inaccurate positioning and signal instability often found in high-speed or harsh industrial setups. By offering stable, noise-resistant feedback and programmable zero-point calibration, it ensures machinery runs with pinpoint precision. Whether it’s for servo drives, conveyors, or robotic joints, this encoder delivers uncompromising accuracy where every pulse counts.
| Feature | Details | Benefit |
|---|---|---|
| Encoder Type | Incremental, 6-channel, programmable | Flexible configuration for diverse automation systems. |
| Pulses Per Revolution (PPR) | 10,000 | Delivers ultra-fine resolution for precision speed and position control. |
| Interface Type | TTL / HTL, programmable | Compatible with a wide range of industrial controllers and drives. |
| Supply Voltage | 4.5 – 32 V DC | Broad voltage tolerance for seamless integration in various setups. |
| Output Frequency | Up to 600 kHz | Supports high-speed motion feedback applications. |
| Connection Type | 8-wire universal cable, 3 m length | Simplifies installation with radial or axial routing options. |
| Shaft Design | Through hollow shaft, Ø 12 mm | Allows direct coupling to drive shafts for compact mounting. |
| Housing Material | Aluminum die-cast with stainless steel shaft | Ensures mechanical strength and corrosion resistance. |
| Enclosure Rating | IP65 (shaft and housing side) | Provides reliable protection in dusty or humid environments. |
| Operating Temperature | –40 °C to +100 °C | Reliable performance across extreme industrial temperatures. |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Long operational life reduces maintenance frequency. |
| MTTFd (Mean Time to Failure) | 300 years (EN ISO 13849-1) | Exceptional reliability for continuous-duty operations. |
| Reverse Polarity / Short-Circuit Protection | Integrated | Protects electronics against wiring errors and surges. |
| Moment of Inertia (Rotor) | 40 g·cm² | Enables fast acceleration and dynamic response. |
| Start-up / Operating Torque | 0.8 Ncm / 0.6 Ncm | Maintains smooth motion with minimal resistance. |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-3 | Guarantees signal stability under electrical interference. |
| Certification | CE, cULus, UKCA, China-RoHS | Meets global safety and compliance standards. |
Download SICK DFS60B-TEPL10000 (1036932) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084271250 |
| Weight | 436 g |
| Country of Origin | Germany |
In modern printing facilities, accurate timing between rollers and print heads determines product quality. The DFS60B-TEPL10000 provides ultra-high pulse resolution that translates rotational motion into precise digital feedback, ensuring each print aligns perfectly even at high speeds. Its robust aluminum housing withstands vibration and temperature changes, reducing misalignment and print errors. By maintaining consistent synchronization, it helps printers achieve cleaner results and less material waste while improving overall production efficiency.
In recycling plants or material handling facilities, conveyors often operate under dust, vibration, and moisture. The DFS60B-TEPL10000 encoder offers precise speed and direction monitoring, detecting belt slippage or irregular movement early. Its IP65 protection and stainless-steel shaft resist contamination and wear. This ensures continuous flow of materials, reduces downtime, and supports stable operation, even when installed close to mechanical shocks or heavy loads.
Autonomous mobile equipment depends on exact wheel position and motion data for safe navigation. When mounted on the drive wheel or motor shaft, the DFS60B-TEPL10000 provides reliable incremental signals for speed and direction tracking. Its programmable zero pulse simplifies calibration during setup, while its high-frequency output ensures real-time feedback. The rugged construction tolerates vibration and sudden stops, ensuring precise path control in warehouses and logistics centers.
In sawmills and metal cutting lines, maintaining a steady feed rate is vital for precision and tool longevity. The DFS60B-TEPL10000 encoder delivers accurate rotational feedback for rollers or drive shafts controlling material feed. With its long bearing life and vibration-resistant structure, it ensures stable measurement even under continuous operation. This enhances cut quality, minimizes material waste, and ensures smoother workflow across production lines handling dense or irregular materials.
| Category | Product Name / Type | Part Number | Description / Benefit |
|---|---|---|---|
| Mounting Systems | BEF-DS00XFX | 2056812 | Standard stator coupling designed for secure encoder mounting. Ensures precise alignment and reduces mechanical stress on the shaft. |
| Mounting Systems | BEF-KR-M | 2064709 | Clamping ring for hollow shaft encoders. Provides firm mechanical locking for stable rotation transmission. |
| Mounting Systems | BEF-FA-B12-010 | 2042728 | Bearing bracket for hollow shaft encoders (Ø12 mm). Ideal for applications with high radial and axial shaft loads such as belt pulleys or chain drives. |
| Programming Devices | PGT-10-Pro | 1072254 | Stand-alone programming tool for DFS60 and other SICK encoders. Allows easy configuration of pulse count, direction, and zero-set function. |
| Programming Devices | PGT-08-S | 1036616 | USB programming unit for PC-based encoder configuration. Ideal for quick adjustments and batch programming in maintenance or setup. |
| Connection Cables | STE-1208-GA01 | 6044892 | Shielded M12 8-pin male connector cable for incremental signal output. Ensures clean signal transmission with minimal interference. |
| Programming Adapter Cable | DSL-0D08-G0M5AC3 | 2061739 | Adapter cable for use with PGT-10-Pro and PGT-08-S programming tools. Provides reliable connectivity for encoder programming. |
| Signal/Power Cable (3 m) | DOL-0J08-G3M0AA6 | 2048591 | Shielded 8-wire PUR cable with JST 8-pin connector, halogen-free. Delivers high-quality incremental and SSI signal transmission. |
| Signal/Power Cable (1.5 m) | DOL-0J08-G1M5AA6 | 2048590 | Compact, flexible version of the same cable type—ideal for installations with limited space. |
| Signal/Power Cable (5 m) | DOL-0J08-G05MAA3 | 2046876 | Extended-length 5 m cable for longer connection runs while maintaining EMI protection. |
| Signal/Power Cable (10 m) | DOL-0J08-G10MAA3 | 2046877 | Long-distance 10 m version for remote encoder placement in large machinery setups. |
| M23 Connector (12-pin) | STE-2312-GX | 6028548 | Straight male connector supporting HIPERFACE®, SSI, or incremental signals. Durable metal housing ensures signal integrity. |
| M23 Connector (12-pin) | STE-2312-G01 | 2077273 | Variant with solder connection; provides high electrical reliability and long service life. |
| Short Adapter Cable (0.35 m) | STL-2312-GM35AA3 | 2061621 | JST 8-pin to M23 12-pin shielded adapter for quick plug-and-play connection. |
| Standard Adapter Cable (1 m) | STL-2312-G01MAA3 | 2061622 | Same adapter in 1 m version, ideal for medium-range installations. |
| Extension Cable (2 m) | STL-2312-G02MAA3 | 2061504 | 2 m JST-to-M23 cable designed for flexible routing and secure incremental signal transmission. |
