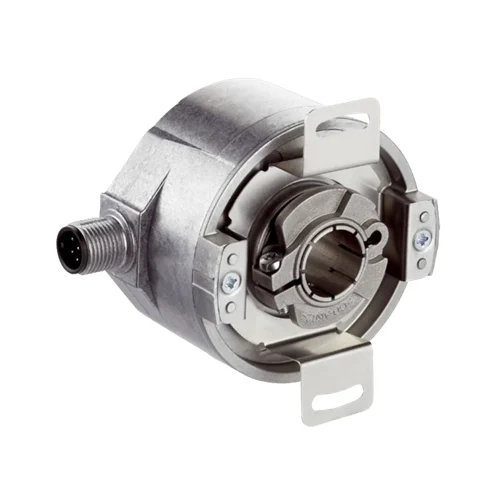

Why SICK DFS60B-TECC03600?
Because it delivers precision without compromise. The SICK DFS60B-TECC03600 transforms motion into intelligence—offering unmatched resolution, rugged construction, and signal stability. It’s built for engineers who demand accuracy, reliability, and easy integration, ensuring every movement in your system is tracked with perfect clarity, even under the toughest industrial conditions.
What Problem Does It Solve?
The DFS60B-TECC03600 eliminates errors in speed and position feedback that can disrupt production quality or cause downtime. By providing ultra-stable pulse output and resilient mechanical design, it ensures seamless synchronization in drives, conveyors, and robotic axes—keeping automation lines precise, efficient, and continuously productive.
Key Features & Specifications – SICK DFS60B-TECC03600: Article Number 1050304
| Feature | Details | Benefit |
|---|---|---|
| Encoder Type | Incremental encoder, through-hollow shaft design | Provides precise speed and position feedback for motion control applications |
| Resolution (PPR) | 3,600 pulses per revolution | Enables high-precision motion measurement and smooth velocity detection |
| Output Interface | TTL / RS-422, 6-channel | Ensures high-speed, noise-resistant signal transmission for reliable data |
| Supply Voltage | 10 to 32 V DC | Wide voltage range for flexible integration across different systems |
| Output Frequency | Up to 600 kHz | Supports rapid data transfer in high-speed automation setups |
| Reference Signal | 1 pulse per revolution, logically gated with A/B | Facilitates easy homing and synchronization in drive systems |
| Shaft Diameter | 12 mm (through hollow shaft) | Easy installation onto motor shafts and drive spindles |
| Material Construction | Stainless-steel shaft, aluminum die-cast housing | Excellent durability and resistance to corrosion and mechanical stress |
| Enclosure Rating | IP65 (housing and shaft sides) | Reliable operation in dusty or humid industrial environments |
| Operating Temperature Range | –40°C to +100°C | Withstands extreme ambient conditions for versatile use |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Long operational life ensures low maintenance and reduced downtime |
| Protection Features | Reverse polarity and short-circuit protection | Enhanced electrical safety and robust operation under load variations |
| Start-Up Torque / Operating Torque | 0.8 Ncm / 0.6 Ncm | Low friction for stable operation and minimal wear |
| Mechanical Speed Limit | ≤ 6,000 rpm | Suitable for dynamic, high-speed rotational applications |
Commercial Data – SICK DFS60B-TECC03600: Article Number 1050304
| Item | Description |
|---|---|
| EAN Number | 4047084257674 |
| Weight | 296 g |
| Country of Origin | Germany |
