$ 365.24
Discover the SICK DFS60B-S4EC05000 incremental encoder—high-resolution, durable, and ideal for precise motion control in industrial automation.

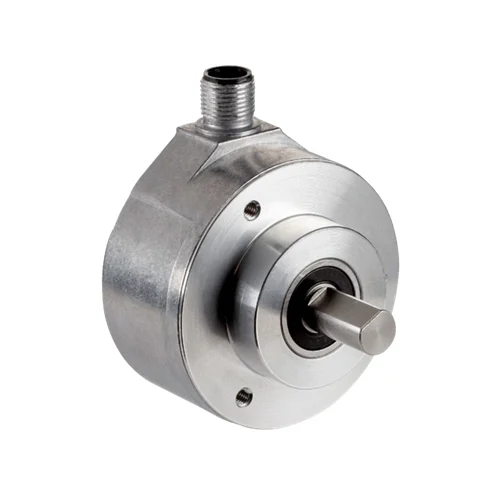

The SICK DFS60B-S4EC05000 Incremental Encoder is engineered for precise rotary motion feedback in demanding automation and machinery control systems. It delivers up to 5,000 pulses per revolution for highly accurate position and speed detection. The unit features a 10 mm solid stainless-steel shaft, compact aluminum housing, and HTL push-pull interface for broad system compatibility. Built to endure heavy mechanical stress, its IP65/IP67 protection ensures dependable operation even in dusty or wet environments. This encoder provides stable and repeatable output ideal for servo drives, conveyor synchronization, and motion monitoring applications that rely on continuous accuracy.
Combining reliability and flexibility, the DFS60B-S4EC05000 offers low signal deviation and minimal error tolerance for precise motion control. Its rugged bearings and durable construction support continuous operation up to 9,000 rpm, while maintaining a long service life. The encoder’s wide temperature range from –40 °C to +100 °C allows stable performance across various industrial environments. With reverse polarity and short-circuit protection, it safeguards connected systems and reduces maintenance interruptions. Compact, easy to mount, and energy-efficient, this model enhances production accuracy in robotics, packaging lines, material handling, and general automation, improving throughput and machine reliability.
Why SICK DFS60B-S4EC05000?
Choose the SICK DFS60B-S4EC05000 for its unmatched precision, rugged build, and intelligent design. Engineered for smooth and reliable motion feedback, it delivers consistent performance in even the toughest environments. Its high resolution and durable mechanics make it the go-to encoder for engineers demanding both accuracy and longevity in motion control systems.
What Problem Does It Solve?
The DFS60B-S4EC05000 eliminates errors in position and speed measurement that often disrupt automation accuracy. It ensures stable feedback under vibration, temperature shifts, or heavy load—conditions that challenge ordinary encoders. By providing dependable, real-time motion data, it enhances production consistency, prevents costly misalignments, and keeps industrial processes running at peak efficiency.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Incremental Encoder (HTL / Push-pull interface) | Provides precise position and speed feedback for automation systems |
| Pulses per Revolution (PPR) | 5,000 pulses | Enables high-resolution motion detection for smooth and accurate control |
| Measuring Step Accuracy | ±0.01° deviation | Ensures reliable signal precision in demanding motion tasks |
| Error Limits | ±0.05° | Delivers consistent measurement accuracy across long operation cycles |
| Electrical Connection | M12, 8-pin male connector, radial | Allows easy plug-and-play installation and secure signal transfer |
| Supply Voltage | 10 … 32 V DC | Compatible with most industrial power supplies |
| Output Frequency | ≤ 600 kHz | Supports fast signal response for high-speed machinery |
| Load Current | ≤ 30 mA | Low power consumption for efficient operation |
| Shaft Type / Diameter | Solid stainless-steel shaft, 10 mm (with flat) | High durability and stable mechanical connection |
| Mechanical Design | Face mount flange, aluminum housing | Lightweight yet robust for long-term industrial use |
| Operating Speed | ≤ 9,000 rpm | Ideal for high-speed rotary applications |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Long operational lifespan with minimal maintenance |
| Enclosure Rating | IP65 (shaft side) / IP67 (housing side) | Resistant to dust, moisture, and harsh industrial conditions |
| Operating Temperature Range | –40 °C to +100 °C | Reliable performance in extreme environments |
| Reverse Polarity & Short-Circuit Protection | Integrated | Prevents damage and increases operational safety |
| Material | Shaft: Stainless steel; Housing: Aluminum die-cast | Durable build for industrial-grade performance |
| Weight | Approx. 0.3 kg | Compact and easy to mount in tight spaces |
| Certification | CE, UKCA, cULus, China RoHS compliant | Meets international quality and safety standards |
Download SICKDFS60B-S4EC05000 1037612 Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084267284 |
| Weight | 0.297 kg |
| Country of Origin | Germany |
In wind energy systems, the DFS60B-S4EC05000 encoder is often used to track rotor position and rotation speed within turbine hubs. Its high resolution and strong resistance to temperature changes ensure accurate performance even in remote or offshore environments. The encoder’s robust aluminum housing and IP67 protection enable continuous monitoring under vibration and humidity, while the flexible configuration of pulse rates allows engineers to match different turbine designs without replacing hardware. This reduces downtime and supports efficient power generation.
In cement production, conveyors transport abrasive materials such as limestone and clinker. The DFS60B-S4EC05000 ensures consistent belt movement by providing real-time rotational feedback. Its durable stainless-steel shaft and sealed housing prevent damage from dust and vibration. The encoder’s wide temperature tolerance helps maintain reliable output signals despite hot or humid environments. This precision monitoring minimizes slippage, supports synchronized operations, and ultimately extends the lifespan of the conveyor system.
Printing and packaging systems rely on accurate web speed control to prevent image misalignment and paper waste. The DFS60B-S4EC05000 delivers stable, high-resolution feedback to keep rollers and print heads synchronized. Its low error rate and high pulse count make it ideal for continuous high-speed operations. When integrated with tension control mechanisms, it helps maintain perfect registration between color layers, ensuring sharp print quality and efficient material usage throughout the production line.
The DFS60B-S4EC05000 is well-suited for AGVs and material transfer vehicles where smooth acceleration and precise speed feedback are crucial. Its compact size and adaptable mounting design allow integration in confined motor spaces. The encoder’s HTL interface ensures strong signal transmission over long cable runs, vital for mobile systems. Reliable motion data enhances positioning accuracy, supports collision avoidance, and contributes to smoother automated logistics, making it a key component in smart factory mobility solutions.
| Category | Product Name / Type | Part Number | Benefit |
|---|---|---|---|
| Shaft Coupling | KUP-0610-B | 5312982 | Provides flexible, vibration-free shaft connection with high torque transmission |
| Shaft Coupling | KUP-1010-D | 5326703 | Absorbs shaft misalignment and mechanical shock for longer encoder life |
| Shaft Coupling | KUP-1010-F | 5312986 | Ideal for compact installations requiring moderate torsional stiffness |
| Shaft Coupling | KUP-1010-J | 2127054 | Reduces torsional vibration and protects encoder bearings during operation |
| Measuring Wheel | BEF-MR010020R | 2055224 | Converts rotary motion into linear distance for conveyor or print-line applications |
| Measuring Wheel | BEF-MR010030R | 2049278 | Provides smooth and slip-free measurement for larger web or roll systems |
| Measuring Wheel | BEF-MR10500APN | 4084735 | Enhances traction on rough or coated surfaces for reliable speed feedback |
| Mounting Bracket | BEF-WF-36 | 2029164 | Ensures secure and aligned installation on machinery or motor housings |
| Bearing Block | BEF-FA-LB1210 | 2044591 | Absorbs high radial and axial loads, protecting encoder from mechanical stress |
| Flange Adapter | BEF-FA-036-060REC | 2029162 | Simplifies retrofitting DFS60 to different mounting standards |
| Connection Cable (Straight) | DOL-1208-G05MAC1 | 6032867 | Provides shielded signal transmission and reliable connectivity |
| Connection Cable (Angled) | DOL-1208-W10MAC1 | 6037726 | Suitable for space-restricted installations while maintaining stable signal quality |
