Discover the SICK DFS60B-S4CM08192 encoder—8,192 PPR accuracy, durable design, and reliable motion feedback for industrial automation systems.

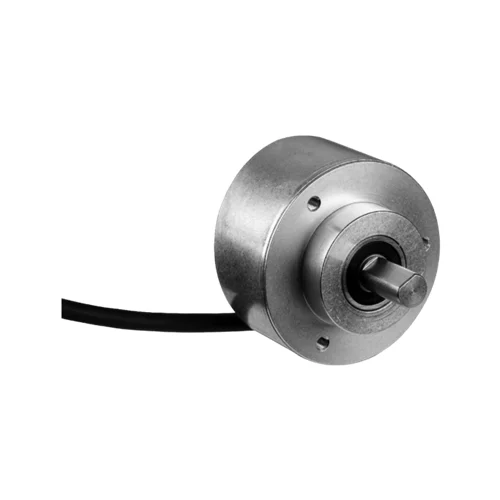

The SICK DFS60B-S4CM08192 Incremental Encoder is designed to deliver high-resolution feedback with 8,192 pulses per revolution, ensuring precise motion tracking in automated systems. Built with a solid 10 mm stainless-steel shaft and a durable die-cast aluminum housing, it performs reliably in harsh industrial conditions. With protection up to IP67/IP65 and an operating temperature range from –40 °C to +100 °C, this encoder provides dependable results in continuous operations such as conveyors, servo drives, and industrial robotics where accurate speed and position feedback are essential.
Engineered for accuracy and longevity, the DFS60B-S4CM08192 features stable TTL/RS-422 output signals that ensure clean, noise-resistant transmission even in electrically noisy environments. Its low operating torque and extended bearing lifespan support smooth motion and long service life, minimizing downtime and maintenance costs. Compact and easy to integrate, it enhances machine efficiency, supports high-speed shaft applications, and ensures repeatable measurement accuracy for motion control systems in manufacturing, packaging, and logistics industries.
Why SICK DFS60B-S4CM08192?
Because precision drives performance. The SICK DFS60B-S4CM08192 delivers exceptional motion accuracy with 8,192 pulses per revolution and industrial-grade durability. Its compact, rugged design ensures flawless feedback in even the harshest environments—making it the perfect choice for engineers who demand absolute reliability in motion and positioning control.
What Problem Does It Solve?
The DFS60B-S4CM08192 solves the challenge of inaccurate speed or position detection that can cause production downtime. By providing ultra-stable, high-resolution feedback signals, it eliminates drift, misalignment, and signal noise—enabling smoother motion control, tighter process synchronization, and greater overall equipment efficiency in demanding automation applications.
| Feature | Details | Benefit |
|---|---|---|
| Encoder Type | Incremental Encoder | Provides precise position and rotational speed feedback for automation systems. |
| Resolution (Pulses per Revolution) | 8,192 PPR | Enables ultra-fine measurement accuracy and smooth motion control. |
| Output Signal Type | TTL / RS-422, 6-channel | Ensures clean, noise-resistant data transmission even in high-EMI environments. |
| Supply Voltage | 10–32 V DC | Flexible power range supports diverse industrial applications. |
| Shaft Type | Solid shaft with flat, 10 mm diameter | Offers strong mechanical stability for direct coupling and easy installation. |
| Flange Type | Face mount flange | Compatible with standard mounting configurations in compact machinery. |
| Housing & Shaft Material | Aluminum die-cast housing, stainless-steel shaft | Provides long-lasting durability and corrosion resistance. |
| Enclosure Rating | IP67 (housing), IP65 (shaft) | Reliable operation under dust, moisture, and industrial conditions. |
| Operating Temperature Range | –40 °C to +100 °C | Wide range ensures dependable use in both cold and high-heat environments. |
| Output Frequency | Up to 600 kHz | Supports high-speed applications with precise signal output. |
| Bearing Lifetime | Up to 3.6 × 10¹⁰ revolutions | Extended service life reduces maintenance intervals and operational costs. |
| Moment of Inertia | 6.2 gcm² | Enables responsive acceleration and deceleration in motion control systems. |
| Permissible Shaft Load | Radial 80 N / Axial 40 N | Ensures mechanical robustness under dynamic shaft loading. |
| Protection Features | Reverse polarity and short-circuit protection | Prevents damage and increases electrical reliability. |
| Compliance & Certifications | CE, UKCA, cULus, RoHS, EMC compliant | Meets international standards for quality and safety assurance. |
| Mean Time to Dangerous Failure (MTTFd) | 300 years | Exceptional reliability for continuous, long-term industrial operation. |
Download SICK DFS60B-S4CM08192 (1056311) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084307867 |
| Weight | 0.603 kg |
| Country of Origin | Germany |
1. Precision Feedback in High-Speed Conveyor Systems
In large logistics facilities, conveyor lines require synchronized motion to ensure smooth material flow. The DFS60B-S4CM08192 delivers precise feedback for conveyor speed and position, allowing controllers to maintain accurate timing between multiple belts. Its 8,192 PPR resolution minimizes cumulative errors and prevents product collisions or misalignment. The IP67-rated housing resists dust and debris, ensuring continuous operation even in warehouses with heavy particulate environments. This improves overall system throughput and reduces downtime caused by false movement readings.
2. Registration Control in Printing and Packaging Machines
Modern printing and labeling systems demand near-perfect registration to avoid image shifts or misaligned cuts. The DFS60B-S4CM08192 provides exceptionally fine angular resolution for rotary press synchronization, allowing print cylinders and cutting blades to stay precisely aligned at high speeds. Its low signal deviation and TTL/RS-422 output guarantee consistent pulse feedback to motion controllers, ensuring sharp, color-accurate results. The encoder’s rugged mechanical design withstands vibration from fast-moving shafts, maintaining calibration and print quality over extended production runs.
3. Motion Feedback in Robotic Arms and Automation Cells
Industrial robots depend on accurate position feedback to maintain consistent precision during repetitive tasks. The DFS60B-S4CM08192 helps robotic joints achieve precise angular detection and stable velocity control, even during fast, multi-axis movement. Its solid 10 mm stainless-steel shaft and reverse-polarity protection enhance system safety and mechanical durability. By ensuring reliable feedback without drift, the encoder improves assembly accuracy, reduces correction time, and enhances the robot’s ability to handle complex motion profiles in automated production environments.
4. Position Monitoring in CNC Woodworking and Machining Systems
CNC routers and cutting systems rely on accurate position measurement to achieve smooth tool motion and exact cutting depth. The DFS60B-S4CM08192 provides high-resolution incremental feedback, ensuring the tool path follows programmed coordinates precisely. Its IP65/IP67 protection makes it resistant to sawdust and oil mist common in woodworking environments. The wide operating temperature range from –40 °C to +100 °C guarantees stable performance during long machining cycles, helping manufacturers achieve consistent surface finishes and reduce material waste.
| Category | Manufacturer Part Number | Article Number | Benefit |
|---|---|---|---|
| Shaft Coupling | KUP-0610-B | 5312982 | High torsional stiffness ensures precise motion transfer. |
| Shaft Coupling | KUP-0610-D | 5326697 | Protects encoder bearings from axial and radial loads. |
| Shaft Coupling | KUP-0610-F | 5312985 | Maintains accuracy while reducing torque ripple. |
| Shaft Coupling | KUP-1010-J | 2127056 | Reduces vibration and mechanical noise up to 19,000 rpm. |
| Shaft Coupling | KUP-1010-B | 5312983 | Ideal for direct motor-to-encoder connection with high precision. |
| Measuring Wheel | BEF-MR010020R | 2055224 | Provides smooth traction and accurate distance measurement. |
| Measuring Wheel | BEF-MR10200AK | 4084737 | Ensures stable contact and prevents slippage on uneven materials. |
| Measuring Wheel System | BEF-MRS-10-U | 2085714 | Simplifies setup for linear motion measurement. |
| Mounting Bracket | BEF-WF-36 | 2029164 | Provides stable alignment and easy mounting. |
| Flange Adapter | BEF-FA-036-060REC | 2029162 | Enables installation flexibility across systems. |
| Bearing Block | BEF-FA-LB1210 | 2044591 | Extends encoder lifespan by reducing mechanical stress. |
| Cable Connector | DOL-0J08-G3M0AA6 | 2048591 | Ensures signal stability and resistance to interference. |
| Cable Connector | STL-2312-G01MAA3 | 2061622 | Maintains strong signal integrity in industrial environments. |
