The Applications
1. Precision Speed Matching in Conveyor Systems

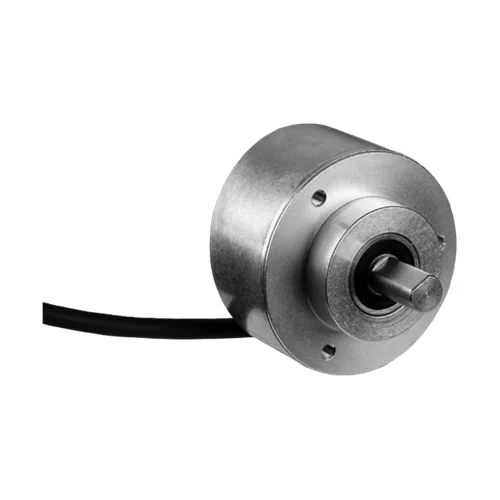

In automated conveyor lines, even small speed variations between sections can lead to product misalignment or unexpected stoppages. This encoder is commonly installed on drive shafts to deliver accurate rotational feedback that allows controllers to continuously adjust motor speed. Its high pulse resolution helps detect minor changes in rotation, while the stable signal output supports fast response times. The solid mechanical construction withstands vibration and continuous operation, making it suitable for long-running logistics and manufacturing systems. As a result, conveyors run more smoothly, throughput is increased, and mechanical wear caused by speed inconsistencies is significantly reduced.
2. Accurate Timing Control in Packaging Machinery
Packaging machines depend on precise timing to coordinate forming, sealing, and cutting actions. In these systems, the encoder provides exact shaft position data so each operation occurs at the correct mechanical angle. The reference pulse enables consistent homing after maintenance or power loss, while high-speed signal handling supports rapid machine cycles. Its compact, face-mount design allows installation in space-limited frames, and the wide voltage tolerance simplifies electrical integration. This leads to repeatable package quality, less material waste, and higher overall equipment effectiveness on high-speed packaging lines.
3. Motor Feedback for Automated Assembly Equipment
Automated assembly processes require dependable feedback to control motor movement during pressing, indexing, or fastening operations. Mounted on motor shafts, this encoder supplies clean, low-noise feedback that improves motion accuracy during acceleration and deceleration. Its ability to handle high rotational speeds supports short cycle times, while durable bearings and housing materials ensure stable operation over long production periods. By maintaining precise control of motor behavior, manufacturers can achieve consistent assembly results, reduce rework, and extend the service life of mechanical components.
4. Rotary Position Monitoring in Demanding Environments
In heavy-duty industrial settings, sensors must perform reliably despite exposure to dust, moisture, vibration, and temperature fluctuations. This encoder is used to monitor the rotational position of rollers, drums, or shafts where environmental conditions are challenging. The sealed housing protects internal electronics, and strong resistance to electrical interference maintains signal integrity. Consistent operation across a wide temperature range ensures accurate feedback during cold starts and prolonged operation, helping operators maintain control and avoid unexpected process interruptions.
Related Products & Accessories
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Shaft Coupling (Bellows) | KUP-0610-B | 5312982 | Compensates minor shaft misalignment while maintaining high torsional stiffness |
| Shaft Coupling (Double Loop) | KUP-0610-D | 5326697 | Absorbs axial and radial offset, reducing bearing stress |
| Shaft Coupling (Spring Washer) | KUP-0610-F | 5312985 | Improves vibration damping in dynamic motion systems |
| Shaft Coupling (Bar Coupling) | KUP-0610-S | 2056407 | Simple, reliable torque transmission with compact design |
| Shaft Coupling (Claw Coupling) | KUP-0610-J | 2127056 | Shock-absorbing design for high-torque applications |
| Measuring Wheel | BEF-MR010020R | 2055224 | Enables linear measurement from rotary motion with high repeatability |
| Measuring Wheel | BEF-MR010030R | 2049278 | Supports longer travel measurement with stable surface contact |
| Measuring Wheel | BEF-MR010050R | 2055227 | Ideal for extended linear distance tracking |
| Measuring Wheel Mechanics | BEF-MRS-10-U | 2085714 | Complete mounting system for converting encoder to measuring wheel use |
| Bearing Block | BEF-FA-LB1210 | 2044591 | Absorbs high radial and axial loads to protect encoder bearings |
| Mounting Bracket | BEF-WF-36 | 2029164 | Simplifies mechanical installation on machine frames |
| Flange Adapter | BEF-FA-036-050 | 2029160 | Adapts encoder to servo flange mounting |
| Flange Adapter | BEF-FA-036-060REC | 2029162 | Enables square plate mounting with precise alignment |
| Flange Adapter (Shock Absorber) | BEF-FA-036-060RSA | 2029163 | Reduces vibration transfer to encoder housing |
| Connector (M12, 8-pin) | STE-1208-GA01 | 6044892 | Secure signal transmission with industrial connector standard |
| Connection Cable | DOL-0J08-G1M5AA6 | 2048590 | Shielded cable for reliable incremental signal integrity |
| Connection Cable | DOL-0J08-G3M0AA6 | 2048591 | Extended cable length for flexible control cabinet layout |
| Connector (M23, 12-pin) | STE-2312-GX | 6028548 | Robust connector option for industrial motion systems |
