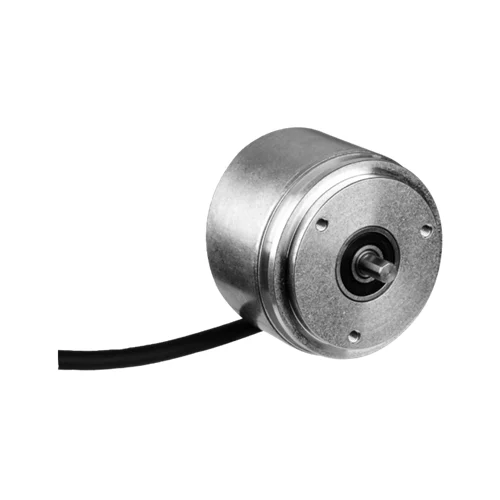

Why SICK DFS60B-S1EL05000?
Because it transforms motion feedback into precision control. The DFS60B-S1EL05000 delivers ultra-fine 5,000-pulse accuracy, rugged IP67 protection, and dependable signal stability, empowering industries to achieve smoother automation, faster alignment, and flawless synchronization—even in the harshest mechanical or environmental conditions.
What Problem Does It Solve?
It eliminates unreliable motion feedback and inconsistent speed control that can disrupt production efficiency. By providing precise, real-time rotational data even under vibration or load, the DFS60B-S1EL05000 ensures seamless operation of motors, conveyors, and servo systems, reducing downtime and optimizing performance in demanding industrial environments.
Key Features & Specifications – SICK DFS60B-S1EL05000: 1037610
| Feature | Details | Benefit |
|---|---|---|
| Encoder Type | Incremental encoder, 6-channel output | Provides precise rotational feedback for motion systems |
| Resolution | 5,000 pulses per revolution (PPR) | Enables high-accuracy positioning and speed control |
| Interface Type | HTL / Push-pull | Ensures strong, noise-resistant signal transmission |
| Power Supply | 10–32 V DC | Compatible with a wide range of industrial control systems |
| Connection Type | 8-wire cable, 3 m length | Simplifies installation and provides flexible wiring options |
| Shaft Type | Solid stainless-steel shaft, 6 mm diameter | High durability and resistance to mechanical wear |
| Flange Type | Servo flange, aluminum | Allows stable mounting and precise alignment |
| Housing Material | Aluminum die-cast | Lightweight yet corrosion-resistant for harsh environments |
| Enclosure Rating | IP67 (housing), IP65 (shaft) | Protects against dust, oil, and water exposure |
| Operating Temperature | –40°C to +100°C | Reliable operation in both cold and hot environments |
| Maximum Speed | Up to 9,000 rpm | Suitable for high-speed rotation applications |
| Output Frequency | ≤600 kHz | Maintains accurate pulse generation at high speeds |
| Start-Up Torque | 0.5 Ncm (+20°C) | Reduces mechanical strain during start-up |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Long operational life with minimal maintenance |
| Vibration Resistance | 30 g (10–2000 Hz) | Stable performance under high vibration conditions |
| Shock Resistance | 70 g, 6 ms | Maintains signal integrity during mechanical impact |
| Mean Time to Failure (MTTFd) | 300 years (calculated) | Exceptional reliability and system safety |
| Certifications | CE, UKCA, cULus, China-RoHS | Meets international safety and compliance standards |
Commercial Data – SICK DFS60B-S1EL05000: 1037610
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084295874 |
| Weight (Approx.) | 0.460 kg |
| Country of Origin | Germany |
The Applications of SICK DFS60B-S1EL05000 Incremental Encoder
1. Precision Conveyor Synchronization in Distribution Systems
In automated logistics centers, synchronized conveyor motion is essential for accurate product routing. The DFS60B-S1EL05000 provides 5,000 PPR resolution, ensuring each conveyor motor runs in perfect alignment. Its robust IP67 housing withstands dust and vibration, while the high signal frequency maintains feedback accuracy during rapid acceleration. This precise control prevents jams and misalignment, helping facilities increase throughput and reduce downtime, even in 24-hour operation environments.
2. High-Speed Position Control in Packaging Equipment
Modern packaging lines demand millisecond timing for cutting, folding, and sealing processes. The DFS60B-S1EL05000 encoder, equipped with six-channel HTL outputs, provides clean, interference-free feedback for servo-driven packaging systems. Its stainless-steel shaft and long bearing life withstand the continuous rotation of labeling or wrapping mechanisms. This ensures consistent positioning accuracy, preventing sealing defects and maintaining uniform product presentation at high production speeds.
3. Feed Roll Control in Wood and Sheet Processing Machines
In wood panel or sheet metal processing, precise feed control ensures consistent cut lengths and surface quality. The DFS60B-S1EL05000 maintains stable feedback under strong vibration and shock, allowing reliable performance in rugged workshop environments. Its programmable zero-pulse feature helps calibrate start positions quickly, and the wide temperature range supports both hot and cold plant conditions. As a result, operators achieve smoother feed rates and significantly reduce material waste.
4. Robotic Joint Feedback for Automated Assembly Lines
Industrial robots rely on accurate motion feedback to maintain repeatable precision. The DFS60B-S1EL05000 fits seamlessly into servo joints thanks to its compact servo flange design and lightweight aluminum body. With high-resolution rotational sensing and fast HTL signal output, it delivers stable position data to robot controllers. This enables smoother arm motion, consistent pick-and-place accuracy, and longer operational reliability under repetitive mechanical stress—key factors in modern robotic assembly and inspection systems.
Related Products & Accessories – Compatible with SICK DFS60B-S1EL05000 (DFS60 Series)
| Category | Product Name / Type | Part Number | Description / Use |
|---|---|---|---|
| Shaft Couplings | KUP-0610-B | 5312982 | Bellows coupling for 6 mm/10 mm shafts; compensates radial ±0.25 mm and angular ±4°; suitable up to 10,000 rpm. Ideal for high-precision, vibration-resistant motion transfer. |
| Shaft Couplings | KUP-0610-D | 5326697 | Double loop coupling for flexible shaft alignment; supports ±2.5 mm radial offset and ±10° angular misalignment. Best for installations with moderate shaft movement. |
| Shaft Couplings | KUP-0610-F | 5312985 | Spring washer coupling with aluminum flange and reinforced membrane; handles ±0.3 mm offset and 12,000 rpm speed. Excellent vibration damping. |
| Shaft Couplings | KUP-0610-S | 2056407 | Bar coupling (6 mm/10 mm); durable polyamide and aluminum design for high torque transfer up to 80 Ncm. |
| Shaft Couplings | KUP-0610-J | 2127056 | Claw coupling with polyurethane damping; absorbs vibration and torsional loads; torque up to 800 Ncm. |
| Measuring Wheels | BEF-MR06200APN | 4084747 | Aluminum measuring wheel with studded polyurethane surface, 200 mm circumference, for friction-based length measurement. |
| Measuring Wheels | BEF-MR06200AP | 4084746 | Smooth polyurethane-surfaced measuring wheel, 200 mm circumference, ideal for clean surface materials such as film or paper. |
| Measuring Wheels | BEF-MR06200AK | 4084745 | Aluminum measuring wheel with cross-knurled surface for strong grip on coated or slippery materials. |
| Mounting Systems | BEF-FA-LB1210 | 2044591 | Heavy-duty bearing block for servo and face-mount flange encoders; absorbs large axial and radial loads for belt or chain drive systems. |
| Mounting Systems | BEF-MK-LB | 5320872 | Mounting kit for servo flange encoders, includes bar coupling and all necessary hardware. |
| Mounting Systems | BEF-WK-SF | 2029166 | Servo clamp set (3 pcs) for quick and stable encoder mounting on servo flanges. |
| Mounting Systems | BEF-MG-50 | 5312987 | Mounting bell for 50 mm servo flange encoders; includes all hardware for precise alignment. |
| Cables & Connectors | STE-1208-GA01 | 6044892 | 8-pin M12 male connector cable for incremental signal transmission; shielded and noise-resistant. |
| Cables & Connectors | DOL-0J08-G3M0AA6 | 2048591 | 3 m PUR cable with JST 8-pin connector, halogen-free, for incremental encoders. |
| Cables & Connectors | STL-2312-G01MAA3 | 2061622 | M23 12-pin male-to-JST 8-pin cable (1 m), shielded, suitable for DFS60 series incremental outputs. |
| Cables & Connectors | STE-2312-GX | 6028548 | M23 12-pin connector for HIPERFACE®, SSI, or incremental interface encoders; solder connection type. |
