$ 519.34

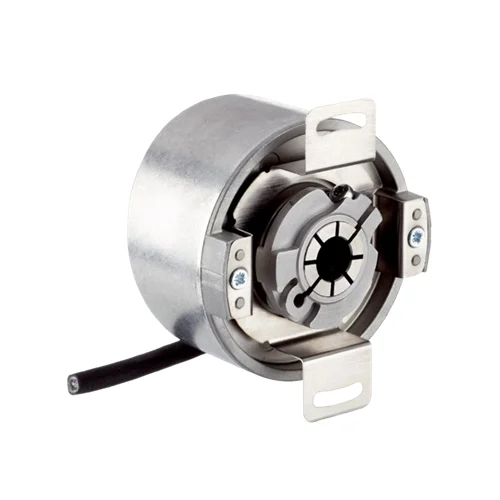

High-resolution SICK DFS60B-BGPK10000 incremental encoder with 10,000 PPR, programmable TTL/HTL output, rugged design for precise industrial motion control.
The SICK DFS60B-BGPK10000 incremental encoder with 10,000 pulses per revolution is a precision motion feedback solution designed for accurate speed and position monitoring in industrial automation systems. It addresses the challenge of achieving stable, high-resolution feedback in applications that operate at high speeds or under harsh environmental conditions. Featuring a blind hollow shaft design with a 14 mm shaft, programmable TTL/HTL outputs, and multi-channel signal processing, this encoder delivers dependable performance for control systems that require precise motion data and long-term reliability.
The SICK DFS60B-BGPK10000 supports smooth motion control and accurate positioning in machinery such as conveyors, servo-driven axes, packaging equipment, and material handling systems. Its high pulse count enables fine speed regulation and precise synchronization, improving product consistency and process efficiency. Programmable signal levels and configurable zero pulse options simplify integration with different controllers, while the robust metal housing and wide operating temperature range ensure stable operation in vibration-prone or outdoor installations. This combination helps reduce commissioning time, minimize maintenance, and maintain consistent system performance over extended service life.
SICK DFS60B-BGPK10000 is chosen when precision, robustness, and long-term stability are non-negotiable. Its 10,000 PPR resolution delivers exceptionally smooth motion feedback, enabling tighter control loops and more accurate positioning. The programmable TTL/HTL interface adapts easily to different controllers, while the rugged metal housing and wide temperature tolerance make it dependable in demanding industrial environments. It is a future-proof encoder for machines that must run accurately, continuously, and with minimal downtime.
SICK DFS60B-BGPK10000 solves the problem of inconsistent or low-resolution motion feedback that limits machine accuracy and process efficiency. In high-speed or vibration-prone systems, poor encoder signals lead to positioning errors, unstable speed control, and frequent recalibration. This model provides high-resolution, stable incremental signals that remain reliable under mechanical stress, temperature variation, and continuous operation, allowing machines to maintain precise motion control, reduce scrap, and operate confidently over long service cycles.
| Feature | Details | Benefit |
|---|---|---|
| Encoder Type | Incremental encoder | Reliable speed and position feedback for motion control systems |
| Resolution | 10,000 pulses per revolution (PPR) | Enables ultra-fine positioning, smooth speed control, and accurate synchronization |
| Output Interface | Incremental, programmable TTL / HTL | Flexible integration with a wide range of PLCs, drives, and controllers |
| Signal Channels | 6-channel output with reference pulse | Improves motion accuracy and supports advanced control functions |
| Output Frequency | Up to 600 kHz | Stable signal output even at high rotational speeds |
| Supply Voltage | 4.5 … 32 V DC | Compatible with both low-voltage and standard industrial power systems |
| Shaft Design | Blind hollow shaft | Simplifies mechanical integration and reduces alignment effort |
| Shaft Diameter | 14 mm | Common industrial size for direct coupling to motors and shafts |
| Mechanical Coupling | Front clamp mounting | Secure installation with reduced vibration sensitivity |
| Housing Material | Aluminum die-cast | High mechanical strength with low weight |
| Shaft Material | Stainless steel | Excellent wear resistance and long service life |
| Operating Speed | Up to 6,000 rpm | Suitable for fast-moving automation and servo applications |
| Protection Rating | IP67 (housing side), IP65 (shaft side) | Reliable operation in dusty, wet, or harsh industrial environments |
| Operating Temperature | –40 °C to +100 °C | Stable performance in extreme cold and high-temperature installations |
| Shock Resistance | Up to 70 g | Maintains signal integrity in high-vibration machinery |
| Vibration Resistance | Up to 30 g | Ensures accuracy in dynamic industrial environments |
| Bearing Lifetime | Very long bearing service life | Reduces maintenance frequency and total cost of ownership |
| Programmability | Configurable signal levels and zero pulse width | Allows fine-tuning for application-specific motion requirements |
| Power Consumption | Low power operation | Minimizes heat generation and energy usage |
Download SICK DFS60B-BGPK10000 (1036786) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084271229 |
| Weight | 0.363 kg |
| Country of Origin | Germany |
In large intralogistics systems, multiple conveyor sections must move in perfect coordination to prevent product collisions, gaps, or misalignment at transfer points. Installing the SICK DFS60B-BGPK10000 on a drive shaft provides precise, real-time speed feedback that keeps all zones synchronized. The 10,000 PPR resolution enables smooth acceleration and deceleration profiles, reducing mechanical stress and improving flow consistency. Its ability to maintain stable signals at high speeds supports continuous operation in busy warehouses. The robust housing and resistance to vibration ensure reliable feedback even in environments with heavy loads, constant motion, and long operating hours.
In industrial printing and marking systems, accurate print placement depends entirely on matching print timing to actual mechanical movement. When the SICK DFS60B-BGPK10000 is coupled to a roller or drive shaft, it delivers high-resolution motion data that allows controllers to trigger prints at the exact position on moving material. This is especially critical for variable data printing, where even small speed fluctuations can cause misprints. The encoder’s programmable output levels simplify integration with different control systems, while its stable high-frequency signal output supports reliable performance during rapid speed changes and continuous production runs.
Automated food and packaging lines rely on precise conveyor timing to ensure products arrive correctly at filling, sealing, and inspection stations. The SICK DFS60B-BGPK10000 provides accurate incremental feedback that allows control systems to coordinate motion smoothly, even when line speeds change frequently. Its high pulse count improves position resolution, helping reduce spillage, misplacement, and timing errors during start-stop cycles. The rugged mechanical design supports washdown-adjacent environments and vibration-prone machinery, making it well suited for production lines that demand reliability, hygiene compliance, and consistent throughput.
In coil processing and winding applications, maintaining consistent tension and accurate length calculation is technically challenging due to continuous speed variation and high inertia loads. Using the SICK DFS60B-BGPK10000 as a speed feedback encoder enables precise monitoring of rotational movement, supporting stable tension control and synchronized drive operation. The high-resolution incremental signal allows smoother control loops, reducing speed ripple that can affect material quality. Its durable construction and wide temperature tolerance make it suitable for harsh industrial environments where equipment must operate reliably over long service cycles.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Mounting System | BEF-DS00XFX | 2056812 | Standard stator coupling that stabilizes the encoder during operation, reduces vibration influence, and improves long-term measurement accuracy. |
| Mounting System | BEF-KR-M | 2064709 | Clamping ring for metal hollow shafts, ensuring secure mounting and minimizing the risk of shaft slippage under dynamic loads. |
| Programming Device | PGT-10-Pro | 1072254 | Portable programming unit that allows fast parameter setup, adjustment, and maintenance without removing the encoder from the machine. |
| Programming Device | PGT-08-S | 1036616 | USB-based programming tool for convenient configuration during commissioning and service via a PC interface. |
| Connector / Cable | STE-1208-GA01 | 6044892 | Shielded incremental connector solution that improves signal stability in electrically noisy industrial environments. |
| Adapter Cable | DSL-0D08-G0M5AC3 | 2061739 | Programming adapter cable that simplifies connection between the encoder and programming tools during setup. |
| Connector / Cable | DOL-0J08-G3M0AA6 | 2048591 | Shielded cable assembly designed for reliable signal transmission over longer distances in industrial installations. |
| Connector / Cable | DOL-0J08-G1M5AA6 | 2048590 | Shorter shielded cable option suited for compact machine layouts while maintaining clean incremental signals. |
| Connector / Cable | DOL-0J08-G0M5AA3 | 2046873 | Compact shielded cable for short runs, helping keep control cabinets neat and signal quality high. |
| Connector / Cable | DOL-0J08-G05MAA3 | 2046876 | Medium-length shielded cable supporting flexible routing in larger machines without compromising signal integrity. |
| Connector / Cable | DOL-0J08-G10MAA3 | 2046877 | Long shielded cable option ideal for extended machine frames or remote control cabinets. |
| Connector / Cable | STE-2312-GX | 6028548 | Robust M23 connector solution providing secure locking and reliable electrical connection in high-vibration systems. |
| Connector / Cable | STE-2312-G01 | 2077273 | Durable M23 connector option designed for continuous-duty industrial applications. |
| Connector / Cable | STL-2312-GM35AA3 | 2061621 | Short incremental cable assembly optimized for tight installation spaces with shielded signal protection. |
| Connector / Cable | STL-2312-G01MAA3 | 2061622 | Standard-length incremental cable assembly suitable for typical machine wiring layouts. |
| Connector / Cable | STL-2312-G02MAA3 | 2061504 | Extended incremental cable assembly enabling flexible installation on larger automation systems. |
