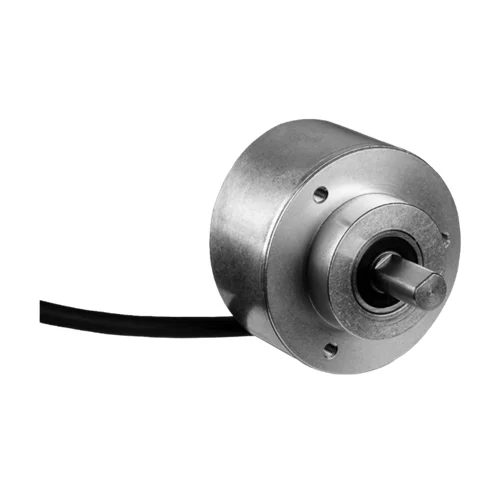

SICK DFS60A-S4PM65536 incremental encoder with 65,536 pulses per revolution provides ultra-precise motion feedback and reliable industrial performance.
SICK DFS60A-S4PM65536 incremental encoder is a high-resolution rotary feedback sensor engineered for precise speed and position detection in advanced motion control systems. With an ultra-fine 65,536 pulses per revolution, it addresses the challenge of achieving extremely accurate motion feedback in compact industrial machines. The robust solid-shaft design, wide operating voltage range, and sealed metal housing allow the encoder to perform reliably in environments exposed to vibration, temperature variation, and electrical interference. It is well suited for applications where accuracy, durability, and long service life are critical.
The SICK DFS60A-S4PM65536 incremental encoder delivers stable and repeatable motion signals that help improve control accuracy in high-speed and high-precision machinery. Its configurable TTL/HTL output levels simplify integration with different control platforms, reducing commissioning time. In real-world automation systems such as servo-driven axes, automated assembly lines, and material handling equipment, the encoder supports smoother motion profiles, tighter positioning tolerances, and reduced mechanical wear. The combination of high resolution, rugged construction, and long bearing lifetime minimizes downtime while ensuring consistent performance over extended operating periods.
The SICK DFS60A-S4PM65536 stands out because it delivers exceptionally fine motion feedback without compromising industrial durability. Its very high pulse resolution enables precise control even in fast, dynamic systems, while the solid-shaft mechanical design ensures stable signal generation over long operating cycles. Designed for engineers who demand accuracy, consistency, and long service life, this encoder supports advanced automation concepts where smooth motion, repeatable positioning, and reliable performance directly influence machine quality and productivity.
In many automation systems, limited encoder resolution leads to positioning errors, unstable speed control, and inefficient machine tuning. The SICK DFS60A-S4PM65536 solves this by providing extremely detailed motion feedback that allows controllers to detect even the smallest movement changes. This improves servo response, reduces vibration, and enables tighter control loops. As a result, machines achieve higher precision, smoother operation, and reduced mechanical stress, especially in high-speed or high-accuracy industrial applications.
| Feature | Details | Benefits |
|---|---|---|
| Resolution | 65,536 pulses per revolution | Enables ultra-fine motion detection for high-accuracy positioning |
| Signal Output | Programmable TTL / HTL | Ensures flexible integration with PLCs, drives, and controllers |
| Output Frequency | Up to 820 kHz | Supports high-speed applications without signal loss |
| Signal Channels | 6-channel with reference signal | Improves control reliability and precise homing |
| Supply Voltage | 4.5 … 32 V DC | Compatible with a wide range of industrial power systems |
| Mechanical Design | Solid shaft, face mount flange | Provides stable mounting and long-term mechanical reliability |
| Shaft Diameter | 10 mm solid shaft with flat | Ensures secure coupling and accurate torque transmission |
| Housing Material | Aluminum die-cast housing | Enhances durability in harsh industrial environments |
| Shaft Material | Stainless steel | Improves wear resistance and long service life |
| Enclosure Rating | IP67 (housing), IP65 (shaft side) | Reliable operation in dusty, humid, and washdown conditions |
| Operating Speed | Up to 9,000 rpm | Suitable for fast-moving automation systems |
| Bearing Lifetime | 3.6 × 10¹⁰ revolutions | Reduces maintenance and unplanned downtime |
| Operating Temperature | –40 °C to +100 °C | Stable performance across extreme temperature ranges |
| Shock Resistance | 100 g (6 ms) | Maintains accuracy in high-vibration machinery |
| Vibration Resistance | 30 g (10 Hz … 2,000 Hz) | Ideal for dynamic and mechanically demanding applications |
| Electrical Protection | Reverse polarity and short-circuit protected | Increases system safety and installation robustness |
Download SICK DFS60A-S4PM65536 (1036729) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084280801 |
| Weight | 0.604 kg |
| Country of Origin | Germany |
In automated assembly environments, multiple servo axes must move in perfect coordination to maintain product accuracy. A high-resolution incremental encoder allows the control system to recognize very small position changes, enabling smooth motion and exact stopping points. This is particularly important when handling compact components or performing alignment tasks with strict tolerances. The dense pulse output supports stable closed-loop control, minimizing vibration and overshoot. Its robust mechanical construction ensures reliable feedback during continuous operation, helping manufacturers achieve consistent quality, lower rejection rates, and higher throughput on demanding assembly lines.
Packaging equipment combines high operating speeds with strict requirements for material positioning. In these machines, precise encoder feedback ensures that films, labels, and cutting tools remain correctly synchronized. The ability to generate reliable signals at high rotational speeds prevents counting errors that could lead to misaligned cuts or seals. This results in uniform package dimensions and improved visual quality. The encoder’s resistance to vibration and environmental influences makes it suitable for nonstop packaging operations, supporting stable performance while reducing unplanned downtime.
Material handling systems depend on accurate speed control to coordinate multiple conveyors, diverters, and transfer points. Fine encoder resolution allows the control logic to adjust conveyor speeds precisely, ensuring smooth product flow and correct spacing between items. This reduces mechanical shock, prevents jams, and improves sorting accuracy. The broad operating voltage range simplifies integration into existing control cabinets. Its sealed design enables dependable operation in dusty or humid facilities such as warehouses, logistics centers, and industrial plants where reliability is essential for continuous operation.
In machine tools and CNC applications, accurate position feedback directly affects machining quality. A high-pulse incremental encoder provides detailed motion data that allows controllers to track spindle or axis movement with exceptional precision. This improves contour accuracy, repeatability, and surface finish, even during complex machining paths. The encoder’s stability over temperature variations and its long bearing life support extended machining cycles without loss of accuracy. As a result, manufacturers can maintain tight dimensional control while reducing tool wear and rework.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Shaft Coupling (Bellows) | KUP-1010-B | 5312983 | Compensates for shaft misalignment while maintaining precise torque transmission at high speeds |
| Shaft Coupling (Double Loop) | KUP-1010-D | 5326703 | Absorbs larger radial and angular offsets, ideal for less rigid mechanical setups |
| Shaft Coupling (Spring Washer) | KUP-1010-F | 5312986 | Reduces vibration and axial load, improving encoder bearing lifetime |
| Shaft Coupling (Bar Coupling) | KUP-1010-S | 2056408 | Simple and reliable coupling for compact installations |
| Measuring Wheel | BEF-MR010020R | 2055224 | Converts rotary motion into linear measurement for conveyor and length measurement applications |
| Measuring Wheel | BEF-MR010050R | 2055227 | Enables long-distance linear measurement with high resolution |
| Measuring Wheel Mechanics | BEF-MRS-10-U | 2085714 | Complete mechanical solution for mounting measuring wheels on DFS60 encoders |
| Bearing Block | BEF-FA-LB1210 | 2044591 | Absorbs high radial and axial forces in belt, chain, or friction-driven systems |
| Mounting Bracket | BEF-WF-36 | 2029164 | Simplifies installation on machines with 36 mm centering hub |
| Flange Adapter | BEF-FA-036-050 | 2029160 | Adapts face mount flange to servo flange for flexible machine integration |
| Programming Tool | PGT-10-Pro | 1072254 | Stand-alone programming and parameter setup for DFS60 encoders |
| Programming Tool (USB) | PGT-08-S | 1036616 | PC-based configuration and parameterization of encoder settings |
| Connector Cable (M12, 8-pin) | STE-1208-GA01 | 6044892 | Secure electrical connection for incremental signal transmission |
| Connector Cable (JST to flying leads) | DOL-0J08-G3M0AA6 | 2048591 | Flexible wiring option for custom control cabinet integration |
