The Applications
1. Micron-Level Control in High-Speed Packaging Machinery

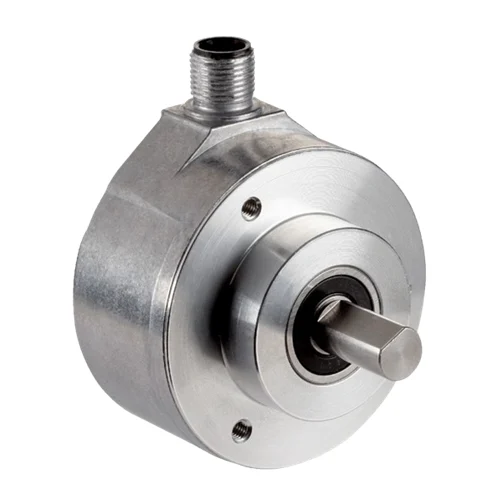

In advanced packaging machines, precise coordination between conveyors, sealing units, and cutting modules is essential to avoid misalignment and product waste. The DFS60A-S4PC65536 is mounted on servo motor shafts to deliver extremely fine positional feedback, enabling controllers to manage rapid motion changes with accuracy. Its very high pulse resolution helps maintain consistent sealing and cutting positions even during high-speed operation. The encoder’s ability to operate reliably at elevated speeds and under continuous vibration supports stable production, reduces rejected packages, and improves overall line efficiency.
2. Accurate Axis Feedback in Industrial Robotics and Assembly Cells
Robotic systems depend on precise feedback to achieve repeatable motion and accurate tool positioning. This encoder is commonly used on rotary axes or auxiliary joints where detailed angular information is required. The high pulse count allows the control system to detect very small movements, resulting in smoother trajectories and improved repeatability. Configurable output signals simplify compatibility with different controllers, while the robust mechanical design ensures dependable feedback during frequent acceleration, deceleration, and rapid direction changes typical in automated assembly and pick-and-place operations.
3. Precise Length and Speed Measurement in Material Handling Systems
In conveyor-based material handling and feed systems, accurate speed and length measurement is critical for spacing, sorting, and indexing tasks. When paired with a measuring wheel, the DFS60A-S4PC65536 provides highly detailed incremental feedback that allows control systems to calculate material movement with fine granularity. This improves compensation for slippage or load variation and enhances overall system accuracy. Its sealed housing and wide temperature tolerance make it suitable for industrial logistics and production environments where consistent measurement performance is required over long operating periods.
4. Fine Position Feedback for Machine Tools and Auxiliary Axes
Machine tools often rely on auxiliary rotary axes to position workpieces or tooling with high accuracy. In these applications, the DFS60A-S4PC65536 delivers precise feedback that improves interpolation accuracy and supports smooth, controlled motion. High allowable rotational speed enables fast positioning, while configurable reference pulses assist with reliable homing and repeatability. The solid shaft construction and long bearing life contribute to reduced maintenance needs, making the encoder well suited for continuous operation in precision machining environments where stable performance is critical.
Related Products & Accessories
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Shaft Coupling (Bellows) | KUP-1010-B | 5312983 | High torsional stiffness with misalignment compensation for precision motion control |
| Shaft Coupling (Double Loop) | KUP-1010-D | 5326703 | Absorbs larger radial and angular offsets in less rigid installations |
| Shaft Coupling (Spring Washer) | KUP-1010-F | 5312986 | Reduces vibration and protects encoder bearings in dynamic systems |
| Shaft Coupling (Bar) | KUP-1010-S | 2056408 | Cost-effective coupling for moderate misalignment applications |
| Shaft Coupling (Claw, Damped) | KUP-1010-J | 2127056 | Shock-absorbing design for systems with frequent load changes |
| Measuring Wheel (200 mm, O-ring) | BEF-MR010020R | 2055224 | Accurate linear measurement with slip-resistant surface |
| Measuring Wheel (300 mm, O-ring) | BEF-MR010030R | 2049278 | Improved resolution for medium-distance length measurement |
| Measuring Wheel (500 mm, O-ring) | BEF-MR010050R | 2055227 | High-resolution measurement over longer travel distances |
| Measuring Wheel System | BEF-MRS-10-U | 2085714 | Complete modular solution for DFS60 face-mount encoders |
| Bearing Block | BEF-FA-LB1210 | 2044591 | Absorbs high radial and axial loads from belts or chains |
| Mounting Bracket | BEF-WF-36 | 2029164 | Simplifies encoder installation with standard centering hub |
| Flange Adapter (36 → 50 mm) | BEF-FA-036-050 | 2029160 | Enables mounting to standard servo flanges |
| Flange Adapter (36 → 60 mm Plate) | BEF-FA-036-060REC | 2029162 | Adapts encoder to square mounting plates |
| Spring-Loaded Mount | BEF-WF36F | 4084775 | Compensates vibration and thermal expansion |
| Programming Tool (Portable) | PGT-10-Pro | 1072254 | Standalone configuration and diagnostics tool |
| Programming Unit (USB) | PGT-08-S | 1036616 | PC-based parameter setting and commissioning |
| Sensor Cable, 2 m | DOL-1208-G02MAC1 | 6032866 | Shielded cable for stable incremental signal transmission |
| Sensor Cable, 5 m | DOL-1208-G05MAC1 | 6032867 | Extended reach for larger machines or cabinets |
| Sensor Cable, 10 m | DOL-1208-G10MAC1 | 6032868 | Long-distance connection with maintained signal quality |
| Programming Adapter Cable | DSL-2D08-G0M5AC3 | 2046579 | Required interface between encoder and programming tools |
