$ 87.63
Discover the SICK DBS36E-BBAK00600 incremental encoder with 600 PPR precision, durable design, and stable feedback for motion control and automation systems.

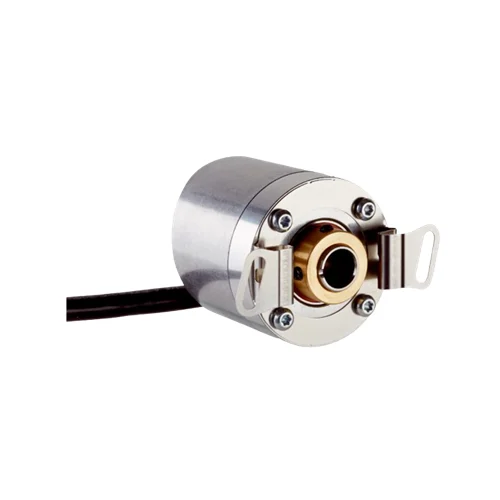

The SICK DBS36E-BBAK00600 incremental encoder is a compact 36 mm feedback device designed to deliver accurate 600-pulse-per-revolution position and speed information for modern motion control systems. Its blind hollow-shaft design, stable TTL/RS-422 signal output, and durable aluminum housing make it suitable for tight installations and dynamic machinery. With a broad temperature tolerance and IP65 protection, the encoder continues to perform reliably in environments exposed to vibration, dust, or variable operating conditions. Built for dependable measurement performance, it helps machinery maintain stable motion control and reduces the likelihood of unexpected operational errors.
Engineered for precision, the DBS36E-BBAK00600 provides clean incremental signals through six channels and a gated reference pulse that supports accurate index detection. The stainless-steel shaft, long bearing lifespan, and low startup torque contribute to smooth operation even in high-speed or continuous-duty equipment. Its resistance to vibration and shocks ensures steady performance on conveyors, automated assembly lines, and controlled-motion mechanisms. The encoder’s short initialization time and integrated cable simplify installation and system recovery. With its combination of compact form and robust mechanical design, it supports reliable machine performance, consistent positioning accuracy, and reduced maintenance interruptions.
The DBS36E-BBAK00600 stands out as a compact, precision-built encoder that delivers reliable motion feedback without adding complexity to your system. Its durable mechanics, smooth signal quality, and fast response make it a dependable choice for machines that need consistent accuracy in tight spaces or demanding operating environments.
This encoder removes uncertainty in motion control by delivering clear, stable position and speed data, even when machinery is fast-moving or exposed to vibration. It prevents drift, signal noise, and inaccurate feedback—common issues that compromise automation reliability—allowing operators to maintain consistent performance and reduce downtime in critical applications.
| Feature | Details | Benefit |
|---|---|---|
| Pulse Resolution | 600 pulses per revolution | Provides accurate speed and position monitoring for precise motion control. |
| Signal Interface | TTL / RS-422, 6-channel output | Ensures clean, noise-resistant signals suitable for industrial environments. |
| Reference Pulse | Single gated zero pulse (A/B logic) | Supports accurate index detection for homing or reference positioning. |
| Initialization Time | < 3 ms | Faster system startup and lower downtime during resets. |
| Output Frequency | Up to 300 kHz | Suitable for fast-moving applications requiring high responsiveness. |
| Supply Voltage | 4.5…5.5 V | Stable low-voltage operation ideal for compact control systems. |
| Connection Type | 8-wire cable, 1.5 m | Easy installation with pre-wired industrial-grade cabling. |
| Mechanical Design | Blind hollow shaft, 8 mm | Ideal for compact, space-restricted shaft assemblies. |
| Housing Material | Aluminum body, stainless-steel shaft | Strong mechanical durability with high corrosion resistance. |
| Operating Temperature | –20 °C to +85 °C | Suitable for harsh or fluctuating industrial environments. |
| Start-up Torque | Approx. 0.5 Ncm at 20 °C | Reduces load on the drive system for smoother operation. |
| Operating Speed | Up to 6,000 rpm (max 8,000 rpm short-term) | Supports high-speed machinery without signal degradation. |
| Vibration Resistance | 20 g, 10 Hz to 2,000 Hz | Reliable performance in machinery with strong vibration. |
| Shock Resistance | 100 g, 6 ms | Withstands impact or sudden mechanical loads. |
| Protection Class | IP65 | Protects against dust and low-pressure water jets for long service life. |
| Bearing Lifetime | 2 × 10⁹ revolutions | Designed for extended operational reliability in continuous-duty systems. |
| MTTFd | 600 years | Extremely low failure probability for dependable long-term operation. |
| EMC Compliance | Meets EN 61000-6-2 / EN 61000-6-3 | Ensures stable performance in electrically noisy environments. |
Download SICK DBS36E-BBAK00600 (1061224) Datasheet
| Category | Information |
|---|---|
| EAN Number | 4047084336041 |
| Weight | 230 g |
| Country of Origin | Malaysia |
Packaging systems rely on conveyors that must move with precise timing to ensure labels, seals, and product spacing remain consistent. The DBS36E-BBAK00600 helps maintain this accuracy by delivering smooth 600-pulse feedback even when conveyor speed changes rapidly. Its noise-resistant electrical interface keeps signals clean near motors and actuators that typically introduce interference. Thanks to its compact hollow-shaft design, it fits easily into narrow conveyor assemblies without adding mechanical strain. The encoder’s vibration resistance ensures stable measurements during continuous operation. With reliable speed and position information, packaging machines avoid misaligned labels, improper sealing, and product collisions, resulting in fewer stoppages and more consistent throughput.
Small robotic arms used in assembly, inspection, or material handling require motion sensors that are accurate yet lightweight. The DBS36E-BBAK00600 suits these systems because its low starting torque and minimal internal friction reduce resistance on robot joints. Its fast response allows the robot to regain accurate position information immediately after safety stops or power interruptions. With its 600-pulse resolution, the controller can calculate angles and motion profiles with high repeatability, which is essential for tasks like fine gripping or micro-positioning. Its ability to function reliably under rapid, repetitive movements ensures that the robot delivers consistent accuracy, reducing cycle variability and minimizing the need for recalibration.
Cutting machines in textiles, plastics, or printed materials must align blade movement with material feed to prevent quality issues. The DBS36E-BBAK00600 provides stable incremental signals that support precise synchronization between rotating blades and the advancing product. Its durable mechanical build allows it to operate continuously even when the machine undergoes frequent acceleration or load changes. Because it handles high rotational speeds with stable signal output, manufacturers can increase cutting speed without compromising accuracy. Its small size makes it suitable for installation on motors where space is limited. As a result, cutting systems benefit from smoother timing control, fewer rejected pieces, and improved overall productivity.
Mobile robots and AGVs rely on accurate wheel rotation data to maintain proper navigation and avoid drift over long distances. The DBS36E-BBAK00600 fits well on compact drive motors commonly used in these vehicles, thanks to its hollow-shaft configuration. Its resistance to vibration ensures dependable feedback even when the robot moves across uneven floors or transitions between surfaces. The encoder’s resolution allows the control system to compute distance and turning angles with high precision, helping the robot follow planned paths more accurately. Its wide operating temperature range supports consistent performance in warehouses with fluctuating climates. This reliable feedback helps AGVs reduce navigation errors and maintain smooth, predictable movement.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Universal Signal Cable (8-wire PUR) | LTG-2308-MWENC | 6027529 | Shielded, halogen-free cable designed for incremental encoder signals, improving signal reliability in noisy environments. |
| Universal Signal Cable (11-wire PUR) | LTG-2411-MW | 6027530 | Provides additional wiring options for complex signal routing while maintaining strong shielding. |
| Universal Signal Cable (12-wire PUR) | LTG-2512-MW | 6027531 | Halogen-free cable suitable for incremental and SSI communication with enhanced durability. |
| Heavy-Duty Shielded Cable (12-wire PUR) | LTG-2612-MW | 6028516 | UV-resistant, saltwater-resistant cable ideal for harsh industrial environments requiring long-term stability. |
| M12 Connector (8-pin) | STE-1208-GA01 | 6044892 | Shielded connector designed for incremental signals, allowing direct plug-in installations. |
| M23 Connector (12-pin) | STE-2312-GX | 6028548 | Robust solder-connection connector supporting incremental, SSI, and HIPERFACE outputs. |
| M23 Connector (12-pin) | STE-2312-G01 | 2077273 | Industrial-grade connector with strong shielding for stable and noise-free encoder communication. |
| Stator Coupling (42–46 mm Mounting) | BEF-DS-DBS36 | 2066301 | Mechanical mounting accessory providing vibration-damped, secure encoder installation. |
